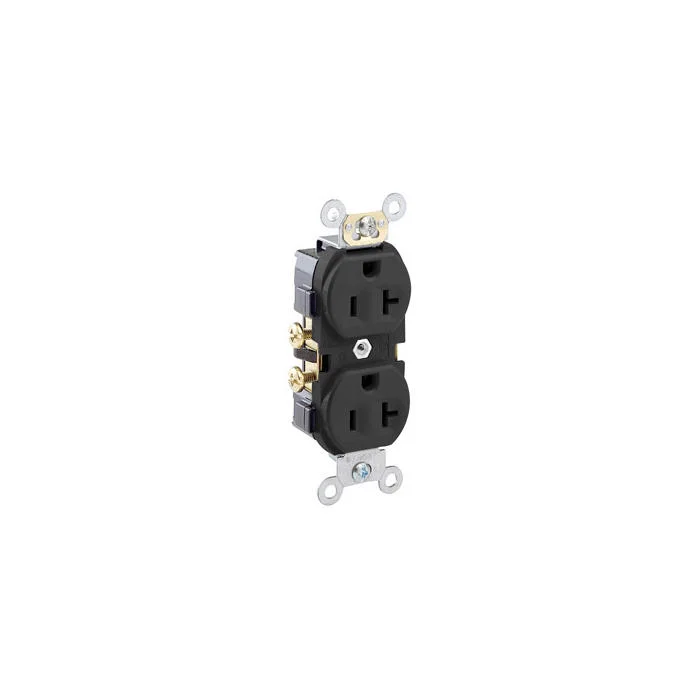

LEVITON CR20-E Receptacle, Duplex, 5-20R, 20 A, 125V AC, Black, 2 Poles, Screw Terminals, Std Resist | CR9HVR 792U95

LEVITON CR20-E Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black, Thermoplastic, Side Wired

Item: CR9HVRModel: CR20-ECross Ref: 792U95
7 In Stock

Ships within 2 days via

€6.18
5.00% off
€5.87 /unit
This product can only be shipped in multiples of 100
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Receptacle
Ac Hp Ratings At Rated Voltage 1 hp
Amps 20A
Body Material Thermoplastic
Color Black
Connection Orientation Straight
Contact Material Brass
Cover Type No Cover
Current Limiting Full Rated Current
Current Rating 20A
Device Type Duplex Receptacle Outlet
Dielectric Voltage Withstands 2000V Per UL498
Face Material Thermoplastic
Features Indented Face
Flammability Rated V-2 Per UL94
Gfci No
Grade Commercial
Ground Clips Material Brass
Grounding Grounded , Self Grounding
Grounding Screw Material Steel
Grounding Screw Size #8-32
Housing Color Black
Housing Material Thermoplastic
Hp 1 hp
Line Contacts Material Brass
Line Contacts Thickness 0.031"
Max. Wire Size 10 AWG
Maximum Operating Temperature 140°F
Min. Operating Temp. -40°C
Min. Wire Size 14 AWG
Minimum Operating Temperature -40°F
Mounting Type Flush
Nema Enclosure Rating Not Rated
Nema Rating NEMA WD-1 And NEMA WD-6
Nema Receptacle Configuration NEMA 5-20R
Number Of Outlets 2
Number Of Poles 2
Number Of Wires 3
Operating Temp. -40°C to +60°C
Phase Single
Polarized Yes
Product Datasheet leviton-cr20-e.pdf
Receptacle Type Duplex
Screw Terminal Torque 14 lbs.-in. to 18 lbs.-in.
Strap Finish Zinc Plated
Strap Material Steel
Temp. Rise Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current
Terminal Accom. 14 AWG to 10 AWG
Terminal Id Brass Hot, Green Ground, Silver Neutral
Terminal Screws Material Steel
Terminal Screws Size #8-32
Termination Side Wire
Ul 94 Flammability Rating V-2
Voltage 125V AC
Voltage Rating 125V AC
Wire Connection Location Side
Wire Connection Type Screw Terminals

Shipping Info:

Ship weight (kg) 0.45
Ship height (cm)23.5
Ship length (cm)31.12
Ship width (cm)3.96
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelCurrent RatingWire Connection LocationHousing ColorGradeNema Receptacle ConfigurationGroundingAmpsHpPrice
LEVITON BR15-E Receptacle, Duplex, 5-15R, 15 A, 125V AC, Black, 2 Poles, Screw Terminals, Std Resist | CR9HTT 792U82 BR15-E15ABack, SideBlackCommercialNEMA 5-15RGrounded15A1/2 hp€7.79
LEVITON CR15-GY Receptacle, Duplex, 5-15R, 15 A, 125V AC, Gray, 2 Poles, Screw Terminals, Std Resist | CR9HUB 792U90 CR15-GY15ASideGrayCommercialNEMA 5-15RGrounded15A1/2 hp€5.28
LEVITON CR15-W Receptacle, Duplex, 5-15R, 15 A, 125V AC, White, 2 Poles, Screw Terminals, Std Resist | CR9HUW 792U93 CR15-W15ASideWhiteCommercialNEMA 5-15RGrounded15A1/2 hp€6.13
LEVITON BR20-E Receptacle, Duplex, 5-20R, 20 A, 125V AC, Black, 2 Poles, Screw Terminals, Std Resist | CR9HVT 792U84 BR20-E20ABack, SideBlackCommercialNEMA 5-20RGrounded20A1 hp€9.05
LEVITON CR20-GY Receptacle, Duplex, 5-20R, 20 A, 125V AC, Gray, 2 Poles, Screw Terminals, Std Resist | CR9HWG 792U96 CR20-GY20ASideGrayCommercialNEMA 5-20RGrounded20A1 hp€5.81
LEVITON CR20-I Receptacle, Duplex, 5-20R, 20 A, 125V AC, Ivory, 2 Poles, Screw Terminals, Std Resist | CR9HWV 792U97 CR20-I20ASideIvoryCommercialNEMA 5-20RGrounded20A1 hp€6.28

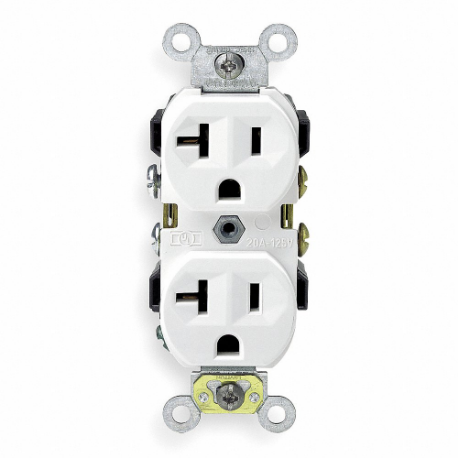

LEVITON CR20-W Receptacle, Duplex, 5-20R, 20 A, 125V AC, White, 2 Poles, Screw Terminals, Std Resist | CR9HYA 792U99 CR20-W20ASideWhiteCommercialNEMA 5-20RGrounded20A1 hp€6.34
