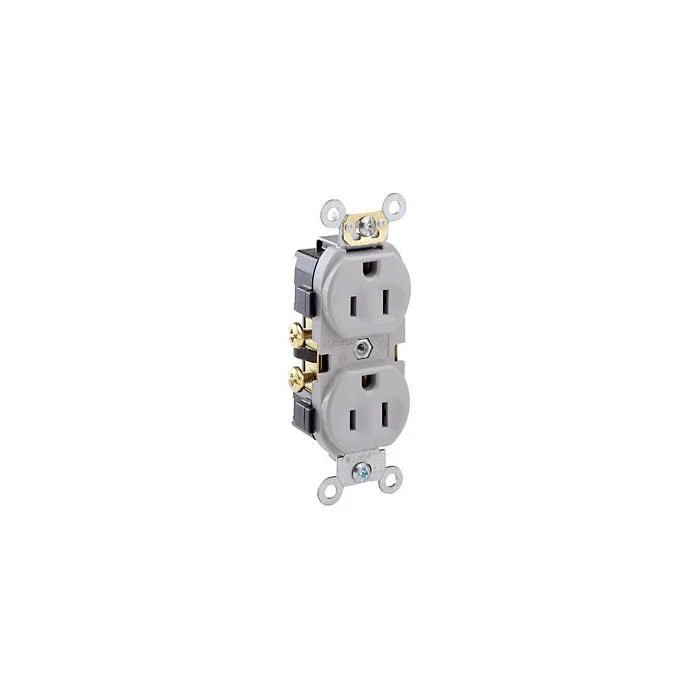

LEVITON CR15-GY Receptacle, Duplex, 5-15R, 15 A, 125V AC, Gray, 2 Poles, Screw Terminals, Std Resist | CR9HUB 792U90

LEVITON CR15-GY Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray, Thermoplastic, Side Wired in

Item: CR9HUBModel: CR15-GYCross Ref: 792U90
7 In Stock
Color
Voltage Rating

Ships within 2 days via

€5.28
5.00% off
€5.01 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Receptacle
Ac Hp @ Rated Voltage 1/2 hp
Amps 15A
Amps Limiting Full Rated Current
Body Material Nylon
Color Gray
Connection Orientation Straight
Contact Material Brass
Cover Type No Cover
Device Type Duplex Receptacle Outlet
Dielectric Voltage Withstands 2000V Per UL498
Face Material Nylon
Features Indented Face
Flammability Rated V-2 Per UL94
Gfci No
Grade Commercial
Ground Clips Material Brass
Grounding Grounded , Self Grounding
Grounding Screw Material Steel
Grounding Screw Size #8-32
Housing Color Gray
Housing Material Nylon
Hp 1/2 hp
Line Contacts Material Brass
Line Contacts Style Double Wipe
Line Contacts Thickness 0.031"
Max. Operating Temp. 140°F
Max. Wire Size 10 AWG
Min. Operating Temp. -40°C , -40°F
Min. Wire Size 14 AWG
Mounting Type Flush
Nema Enclosure Rating Not Rated
Nema Rating NEMA WD-1 And NEMA WD-6
Nema Receptacle Configuration NEMA 5-15R
No. Of Outlets 2
No. Of Poles 2
No. Of Wires 3
Operating Temp. -40°C to +60°C
Phase 1
Polarized Yes
Product Datasheet leviton-cr15-gy.pdf
Receptacle Type Duplex
Screw Terminal Torque 14 lbs.-in. to 18 lbs.-in.
Strap Finish Zinc Plated
Strap Material Steel
Temp. Rise Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current
Terminal Accom. 14 AWG to 10 AWG
Terminal Inside Dia. Brass Hot, Green Ground, Silver Neutral
Terminal Screws Material Steel
Terminal Screws Size #8-32
Termination Side Wire
Ul 94 Flammability Rating V-2
Voltage 125V AC
Wire Connection Location Side
Wire Connection Type Screw Terminal

Shipping Info:

Ship weight (kg) 0.06
Ship height (cm)23.5
Ship length (cm)31.12
Ship width (cm)3.96
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelAmpsHousing ColorGradeColorWire Connection LocationHpNema Receptacle ConfigurationGroundingPrice
LEVITON BR15-E Receptacle, Duplex, 5-15R, 15 A, 125V AC, Black, 2 Poles, Screw Terminals, Std Resist | CR9HTT 792U82 BR15-E15ABlackCommercialBlackBack, Side1/2 hpNEMA 5-15RGrounded€7.79
LEVITON CR15-W Receptacle, Duplex, 5-15R, 15 A, 125V AC, White, 2 Poles, Screw Terminals, Std Resist | CR9HUW 792U93 CR15-W15AWhiteCommercialWhiteSide1/2 hpNEMA 5-15RGrounded€6.13
LEVITON CR20-E Receptacle, Duplex, 5-20R, 20 A, 125V AC, Black, 2 Poles, Screw Terminals, Std Resist | CR9HVR 792U95 CR20-E20ABlackCommercialBlackSide1 hpNEMA 5-20RGrounded€6.18
LEVITON BR20-E Receptacle, Duplex, 5-20R, 20 A, 125V AC, Black, 2 Poles, Screw Terminals, Std Resist | CR9HVT 792U84 BR20-E20ABlackCommercialBlackBack, Side1 hpNEMA 5-20RGrounded€9.05
LEVITON CR20-GY Receptacle, Duplex, 5-20R, 20 A, 125V AC, Gray, 2 Poles, Screw Terminals, Std Resist | CR9HWG 792U96 CR20-GY20AGrayCommercialGraySide1 hpNEMA 5-20RGrounded€5.81
LEVITON CR20-I Receptacle, Duplex, 5-20R, 20 A, 125V AC, Ivory, 2 Poles, Screw Terminals, Std Resist | CR9HWV 792U97 CR20-I20AIvoryCommercialIvorySide1 hpNEMA 5-20RGrounded€6.28
LEVITON CR20-W Receptacle, Duplex, 5-20R, 20 A, 125V AC, White, 2 Poles, Screw Terminals, Std Resist | CR9HYA 792U99 CR20-W20AWhiteCommercialWhiteSide1 hpNEMA 5-20RGrounded€6.34
