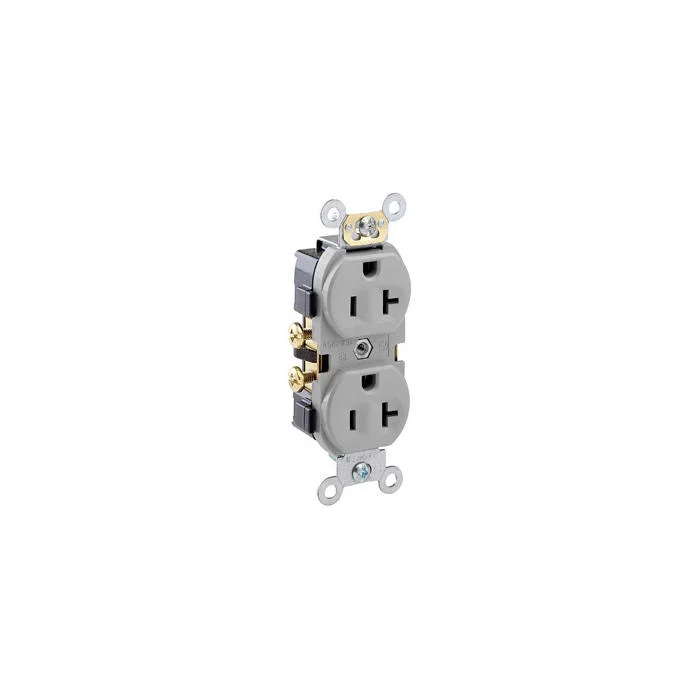

LEVITON CR20-GY Duplex Heavy Duty Narrow Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Item: CR9HWGModel: CR20-GYCross Ref: 792U96
7 In Stock
Ships within 2 days via
5.00% off
€5.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp @ Rated Voltage | 1 hp |
| Amps | 20A |
| Amps Limiting | Full Rated Current |
| Body Material | Thermoplastic |
| Color | Gray |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Depth | 1 2/25" |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Thermoplastic |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.5" |
| Features | Indented Face |
| Gfci | No |
| Grade | Commercial |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Material | Steel |
| Grounding Screw Size | #8-32 |
| Housing Color | Gray |
| Housing Material | Thermoplastic |
| Hp | 1 hp |
| Included | Isolated Ground |
| Included Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Thickness | 0.031" |
| Max. Operating Temp. | 140°F |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C , -40°F |
| Min. Wire Size | 14 AWG |
| Mount Hole Center To Center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-1 And NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| No. Of Outlets | 2 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Overall Depth | 1.1" |
| Phase | 1 |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Strap Finish | Zinc Plated |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Material | Steel |
| Terminal Screws Size | #8-32 |
| Termination | Side Wire |
| Voltage | 125V AC |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 21.12 |
| Ship length (cm) | 31.59 |
| Ship width (cm) | 3.96 |
| Country of Origin | US |
Product Variants
| Product | Model | Amps | Housing Color | Grade | Color | Wire Connection Location | Hp | Nema Receptacle Configuration | Grounding | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BR15-E | 15A | Black | Commercial | Black | Back, Side | 1/2 hp | NEMA 5-15R | Grounded | €7.79 | |
 |
CR15-GY | 15A | Gray | Commercial | Gray | Side | 1/2 hp | NEMA 5-15R | Grounded | €5.28 | |
 |
CR15-W | 15A | White | Commercial | White | Side | 1/2 hp | NEMA 5-15R | Grounded | €6.13 | |
 |
CR20-E | 20A | Black | Commercial | Black | Side | 1 hp | NEMA 5-20R | Grounded | €6.18 | |
 |
BR20-E | 20A | Black | Commercial | Black | Back, Side | 1 hp | NEMA 5-20R | Grounded | €9.05 | |
 |
CR20-I | 20A | Ivory | Commercial | Ivory | Side | 1 hp | NEMA 5-20R | Grounded | €6.28 | |
 |
CR20-W | 20A | White | Commercial | White | Side | 1 hp | NEMA 5-20R | Grounded | €6.34 |
