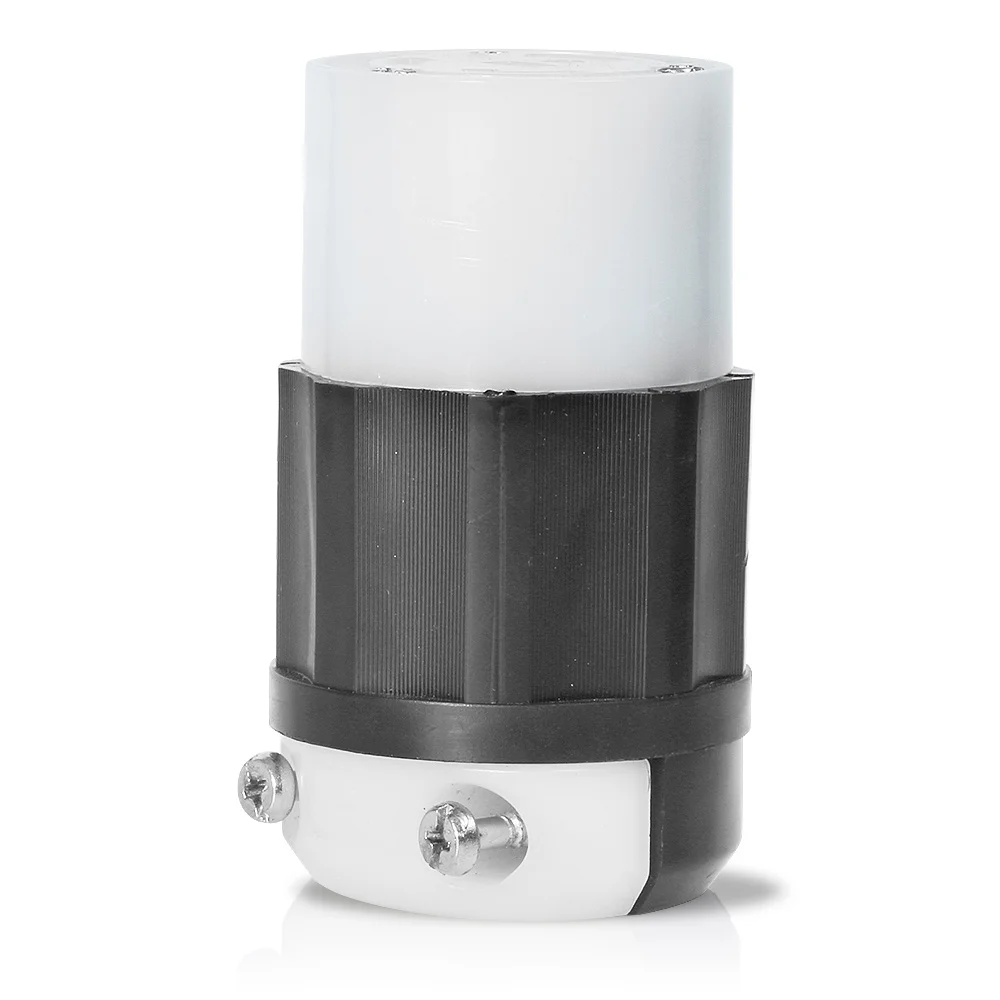

LEVITON C2623 Grounding Twist Locking Connector, 250 VAC, 30 A, 2 Poles, 3 Wires, Black/White
Item: CR9HCEModel: C2623Cross Ref: 792U87
7 In Stock
Ships within 2 days via
5.00% off
€109.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Ac Hp @ Rated Voltage | 2 hp |
| Amps | 30A |
| Amps Interrupting | Certified For Current Interrupting At Full Rated Current |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Back Cover | Thermoplastic |
| Blades/contacts | Solid Brass |
| Body Material | Nylon |
| Cap Type | No Cap, Cover |
| Clamp Insert Material | Nylon |
| Color | Black And White |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cord Range | 0.385" to 0.93" |
| Cord-clamp | Nylon |
| Device Type | Locking Connector |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Dry |
| Face Dia. | 1 21/25" , 1.84" |
| Flammability | Rated HB Or Better UL94 |
| For Environment | Dry |
| For Max. Cable Dia. | 0.93" |
| For Min. Cable Dia. | 0.385" |
| Grade | Federal Specification |
| Grounding | Grounded , Grounding |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Hp | 2 hp |
| Insulation Material | Nylon |
| Ip Rating | Not Rated |
| Length | 3 14/25" |
| Market | Industrial |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 4 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 10 AWG |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA L6-30R |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Outside Dia. | 2 2/25" , 2.08" |
| Overall Length | 3.56" |
| Phase | 1 |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV, Sunlight Resistant |
| Shrouded | No |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass |
| Torque | 10 lbs.-in. to 14 lbs.-in. |
| Ul 94 Flammability Rating | HB |
| Voltage | 250V AC |
| Wire Connection Type | Screw Terminal |
| Wire Gauge | 16 AWG to 8 AWG |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 12.54 |
| Ship length (cm) | 30.01 |
| Ship width (cm) | 5.87 |
| Country of Origin | MX |
Product Variants
| Product | Model | Min. Wire Size | No. Of Poles | Housing Color | For Max. Cable Dia. | For Min. Cable Dia. | Max. Wire Size | Voltage | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2713-B | 14 AWG | 3 | Black | 1.15" | 0.595" | - | 125/250V AC | - | €88.37 | |
 |
2423 | 18 AWG | 3 | Black | 0.775" | 14/25" | 10 AWG | 250V AC | 3 | €92.63 | |
 |
4729-C | 18 AWG | 2 | Black, White | - | 0.23" | 10 AWG | 125V AC | 1 | €57.25 | |
 |
4729-CY | 18 AWG | 2 | White, Yellow | 0.7" | 6/25" | 10 AWG | 125V AC | 1 | €41.64 | |
 |
2613-B | 16 AWG | 2 | Black | 0.93" | 0.385" | - | 125V AC | - | €68.57 | |
 |
2613-PLC | 16 AWG | 2 | Black, White | 0.93" | 0.385" | 8 AWG | 125V AC | 1 | €282.90 | |
 |
2613-CY | 16 AWG | 2 | White, Yellow | 0.93" | 0.385" | 8 AWG | 125V AC | 1 | €103.51 |
