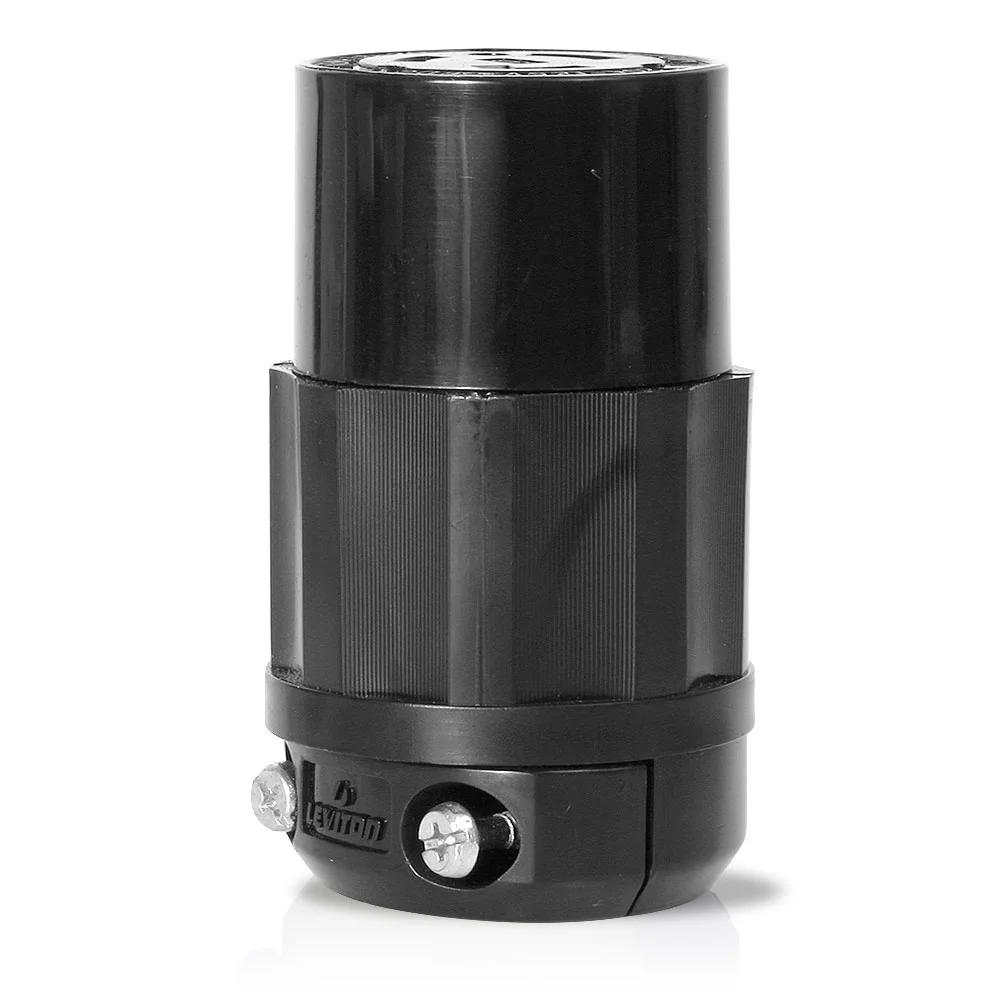

LEVITON 2713-B Cable Mount Grounding Locking Connector, 3-Phase, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black
Item: CR9HBWModel: 2713-BCross Ref: 792T99
7 In Stock
Ships within 2 days via
5.00% off
€83.95 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Ac Hp Ratings At Rated Voltage | 2 hp |
| Amps | 30A |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Back Cover | Thermoplastic |
| Blades/contacts | Solid Brass |
| Body Material | Nylon |
| Cap Type | No Cap, Cover |
| Clamp Insert Material | Nylon |
| Color | Black |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cord Range | 0.595" to 1.15" |
| Cord-clamp | Nylon |
| Current Interrupting | Certified For Current Interrupting At Full Rated Current |
| Device Type | Locking Connector |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Dry |
| Face Dia. | 1.97" |
| Flammability | Rated HB Or Better UL94 |
| For Environment | Dry |
| For Maximum Cable Diameter | 1.15" |
| For Minimum Cable Diameter | 0.595" |
| Grade | Federal |
| Grounding | Grounded , Grounding |
| Housing Color | Black |
| Hp | 2 hp |
| Insulation Material | Nylon |
| Ip Rating | Not Rated |
| Length | 3.78" |
| Max. Operating Temp. | 60°C |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA L14-30R |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Operating Temp. | -40°C to +60°C |
| Outside Dia. | 2.22" |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Shrouded | No |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 14 AWG to 8 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass |
| Voltage | 125/250V AC |
| Wire | 4 |
| Wire Connection Type | Screw Terminals |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 13.65 |
| Ship length (cm) | 29.85 |
| Ship width (cm) | 5.64 |
| Country of Origin | MX |
Product Variants
| Product | Model | Connection Orientation | Number Of Poles | Number Of Wires | Housing Color | Current Rating | Voltage Rating | Phase | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2423 | Straight | 3 | 4 | Black | 20A | 250V AC | Three | Federal Specification | €92.63 | |
 |
4729-C | Straight | 2 | 3 | Black, White | 15A | 125V AC | Single | Federal Specification | €57.25 | |
 |
4729-CY | Straight | 2 | 3 | White, Yellow | 15A | 125V AC | Single | Federal Specification | €41.64 | |
 |
2613-B | Straight | 2 | 3 | Black | - | - | - | Federal | €68.57 | |
 |
2613-PLC | Straight | 2 | 3 | Black, White | 30A | 125V AC | Single | Federal Specification | €282.90 | |
 |
2613-CY | Straight | 2 | 3 | White, Yellow | 30A | 125V AC | Single | Federal Specification | €103.51 | |
 |
2323-B | Straight | 2 | 3 | Black | 20A | 250V AC | Single | Federal Specification | €46.26 |
