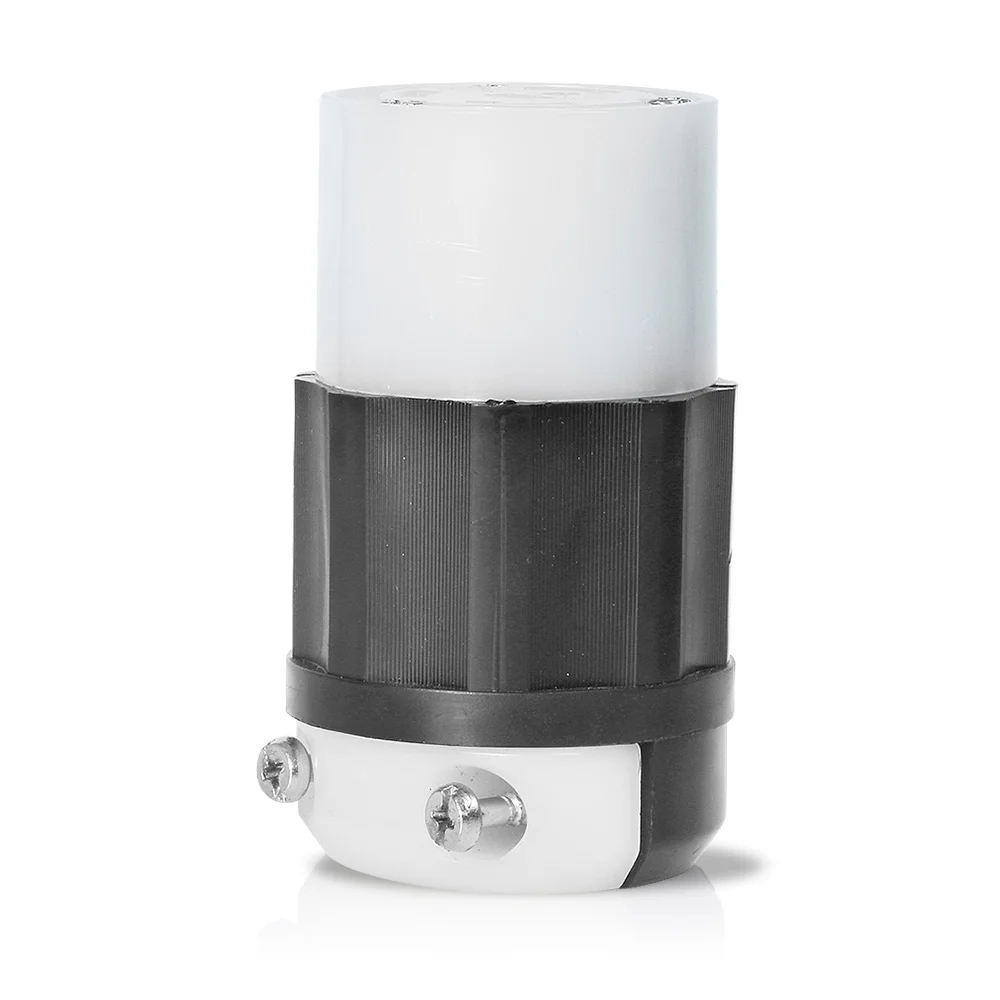

LEVITON 2423 Locking Connector, 250 VAC, 20 A, 3 Poles, 4 Wires, Black/White
Item: CR9HBXModel: 2423Cross Ref: 792T55
7 In Stock
Ships within 2 days via
5.00% off
€88.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 20A |
| Body Material | Nylon |
| Cap Type | No Cap, Cover |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Face Dia. | 1.97" |
| For Max. Cable Dia. | 0.775" |
| For Min. Cable Dia. | 14/25" |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Black |
| Ip Rating | Not Rated |
| Length | 3.78" |
| Market | Industrial |
| Max. Wire Size | 10 AWG |
| Midget Locking | No |
| Min. Wire Size | 18 AWG |
| Nema Enclosure Rating | Not Rated |
| Nema Receptacle Configuration | NEMA L15-20R |
| No. Of Poles | 3 |
| No. Of Wires | 4 |
| Outside Dia. | 2.23" |
| Overall Length | 3.78" |
| Phase | 3 |
| Polarized | Yes |
| Product Datasheet | leviton-2423.pdf |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV, Sunlight Resistant |
| Shrouded | No |
| Standards | Rohs Compliant |
| Torque | 10 lbs.-in. to 14 lbs.-in. |
| Voltage | 250V AC |
| Wire Connection Type | Screw Terminal |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 12.54 |
| Ship length (cm) | 30.01 |
| Ship width (cm) | 71.12 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Connection Orientation | Housing Color | Phase | Face Dia. | Outside Dia. | Grade | Amps | Grounding | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

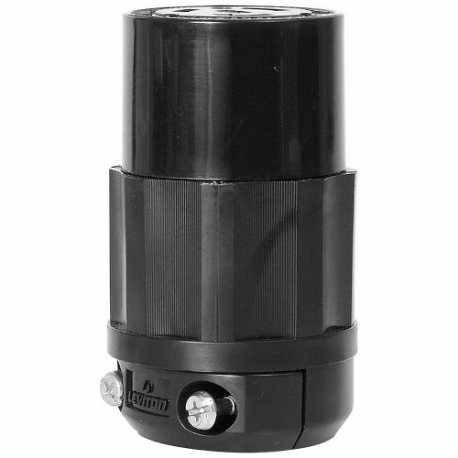

2713-B | Straight | Black | - | 1.97" | 2.22" | Federal | 30A | Grounded | €88.37 | |
 |

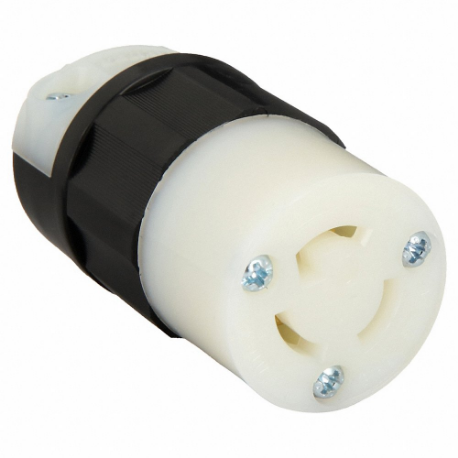

4729-C | Straight | Black, White | 1 | 1.39" | 1.53" | Federal Specification | 15A | Grounded | €57.25 | |
 |

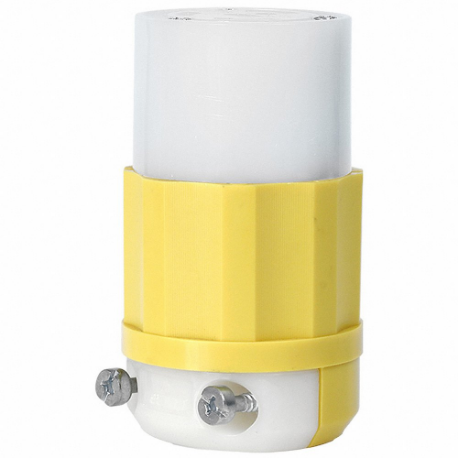

4729-CY | Straight | White, Yellow | 1 | 1.39" | 1.53" | Federal Specification | 15A | Grounded | €41.64 | |
 |
2613-B | Straight | Black | - | 1 21/25" | - | Federal | 30A | Grounded | €68.57 | |
 |

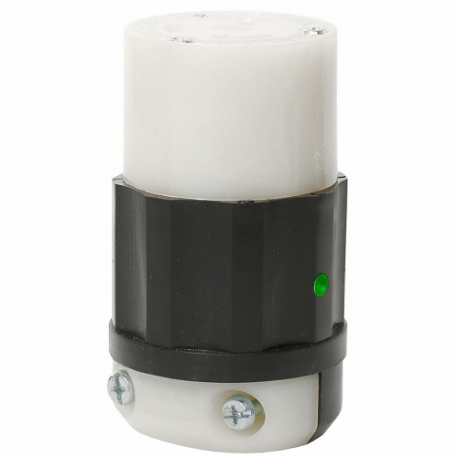

2613-PLC | Straight | Black, White | 1 | 1.84" | 2 2/25" | Federal Specification | 30A | Grounded | €282.90 | |
 |

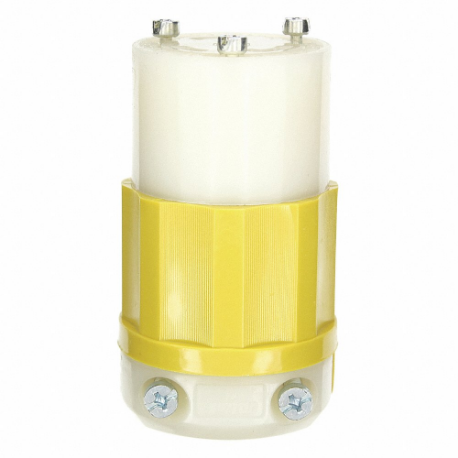

2613-CY | Straight | White, Yellow | 1 | 1 21/25" | 2 2/25" | Federal Specification | 30A | Grounded | €103.51 | |
 |

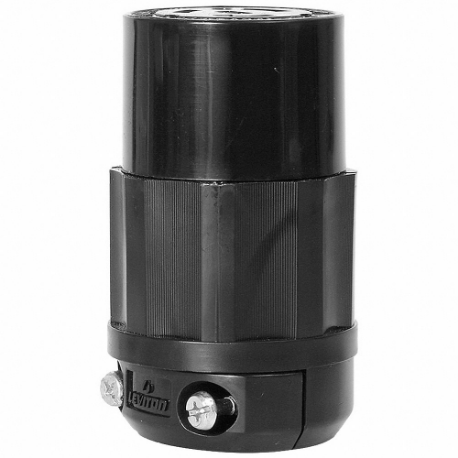

2323-B | Straight | Black | 1 | 1 21/25" | 2 2/25" | Federal Specification | 20A | Grounded | €46.26 |
