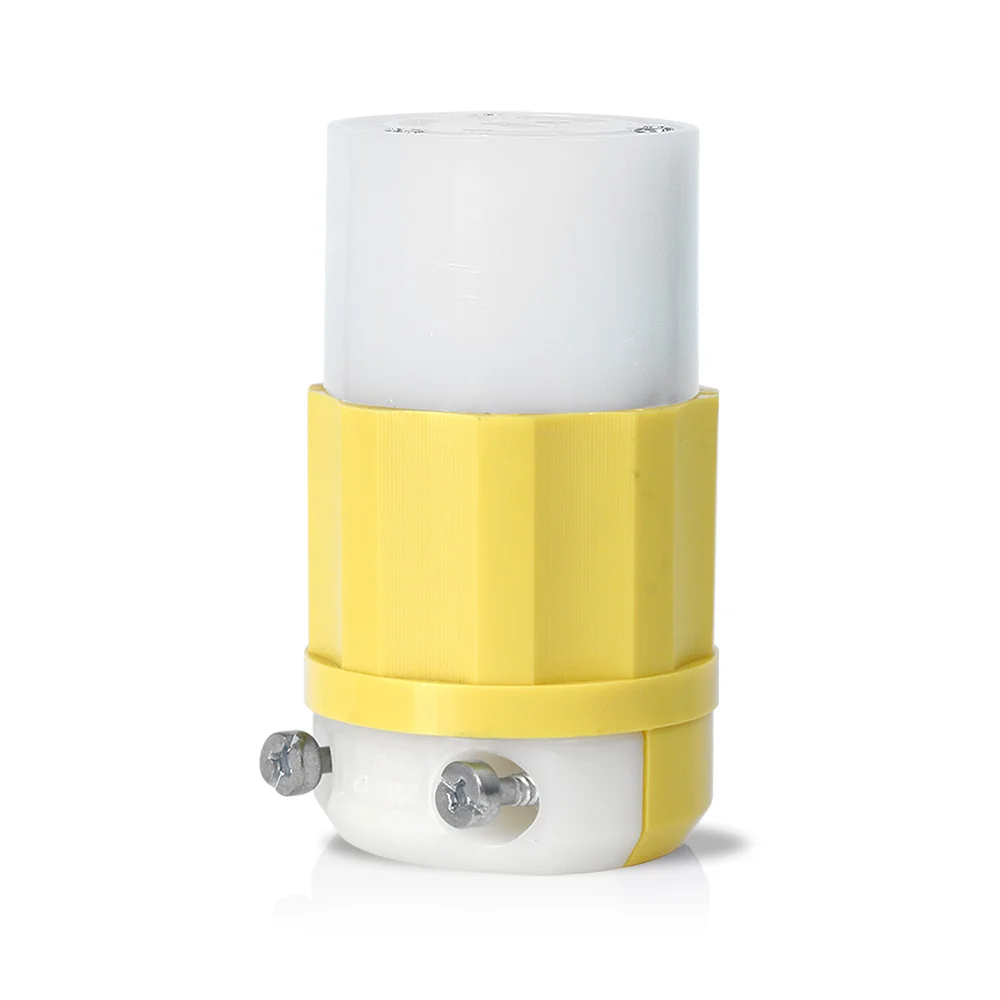

LEVITON 4729-CY Grounding Locking Connector, 1 Phase, 125 VAC, 15 A, 2 Poles, 3 Wires, White/Yellow
Item: CR9HBZModel: 4729-CYCross Ref: 792TH2
7 In Stock
Ships within 2 days via
5.00% off
€39.56 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 15A |
| Amps Interrupting | Certified For Current Interrupting At Full Rated Current |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Back Cover | Thermoplastic |
| Blades/contacts | Solid Brass |
| Body Material | Nylon |
| Cap Type | No Cap, Cover |
| Clamp Insert Material | Nylon |
| Color | Yellow And White |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cord Range | 0.24" to 0.7" |
| Cord-clamp | Nylon |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Dry |
| Face Dia. | 1.39" |
| Flammability | Rated HB Or Better UL94 |
| For Environment | Dry |
| For Max. Cable Dia. | 0.7" |
| For Min. Cable Dia. | 6/25" |
| Grade | Federal Specification |
| Grounding | Grounded , Grounding |
| Housing Color | White, Yellow |
| Housing Material | Nylon |
| Hp | 1/2 hp |
| Insulation Material | Nylon |
| Ip Rating | Not Rated |
| Length | 2 19/25" |
| Market | Industrial |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA L5-15R |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Outside Dia. | 1.53" |
| Overall Length | 2.76" |
| Phase | 1 |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV, Sunlight Resistant |
| Shrouded | No |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass |
| Ul 94 Flammability Rating | HB |
| Voltage | 125V AC |
| Wire Connection Type | Screw Terminal |
| Wire Gauge | 18 AWG to 10 AWG |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 23.81 |
| Ship width (cm) | 15.24 |
| Country of Origin | MX |
Product Variants
| Product | Model | Connection Orientation | Housing Color | Phase | Face Dia. | Outside Dia. | Grade | Amps | Grounding | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2713-B | Straight | Black | - | 1.97" | 2.22" | Federal | 30A | Grounded | €88.37 | |
 |
2423 | Straight | Black | 3 | 1.97" | 2.23" | Federal Specification | 20A | Grounded | €92.63 | |
 |
4729-C | Straight | Black, White | 1 | 1.39" | 1.53" | Federal Specification | 15A | Grounded | €57.25 | |
 |
2613-B | Straight | Black | - | 1 21/25" | - | Federal | 30A | Grounded | €68.57 | |
 |
2613-PLC | Straight | Black, White | 1 | 1.84" | 2 2/25" | Federal Specification | 30A | Grounded | €282.90 | |
 |
2613-CY | Straight | White, Yellow | 1 | 1 21/25" | 2 2/25" | Federal Specification | 30A | Grounded | €103.51 | |
 |
2323-B | Straight | Black | 1 | 1 21/25" | 2 2/25" | Federal Specification | 20A | Grounded | €46.26 |
