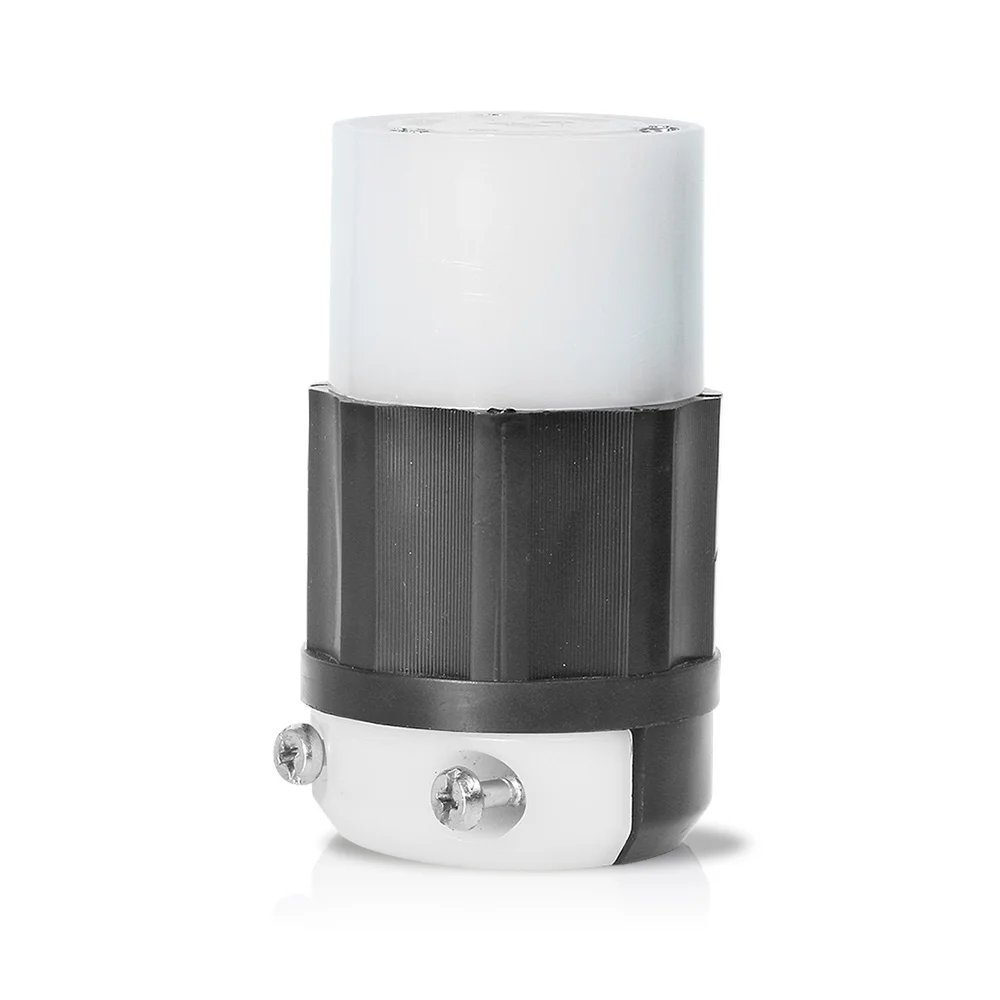

LEVITON 4729-C Locking Connector, L5-15R, 15 A, 125V AC, 2 Poles, Black/White, Screw Terminals, L5-15
Item: CR9HBYModel: 4729-CCross Ref: 792TH1
7 In Stock
Ships within 2 days via
10.00% off
€51.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 15A |
| Body Material | Nylon |
| Cap Type | No Cap, Cover |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Current Rating | 15A |
| Face Dia. | 1.39" |
| For Environment | Dry |
| For Minimum Cable Diameter | 0.23" |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Black, White |
| Hp | 1/2 hp |
| Insulation Material | Nylon |
| Ip Rating | Not Rated |
| Length | 2 19/25" |
| Market | Industrial |
| Max. Operating Temp. | 60°C |
| Maximum Wire Size | 10 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Nema Enclosure Rating | Not Rated |
| Nema Receptacle Configuration | NEMA L5-15R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outside Diameter | 1.53" |
| Overall Length | 2.76" |
| Phase | Single |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Shrouded | No |
| Ul 94 Flammability Rating | HB |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7.01 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Connection Orientation | Number Of Poles | Number Of Wires | Housing Color | Current Rating | Voltage Rating | Phase | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2713-B | Straight | 3 | 4 | Black | - | - | - | Federal | €88.37 | |
 |
2423 | Straight | 3 | 4 | Black | 20A | 250V AC | Three | Federal Specification | €92.63 | |
 |
4729-CY | Straight | 2 | 3 | White, Yellow | 15A | 125V AC | Single | Federal Specification | €41.64 | |
|
2613-B | Straight | 2 | 3 | Black | - | - | - | Federal | €68.57 | |
 |
2613-PLC | Straight | 2 | 3 | Black, White | 30A | 125V AC | Single | Federal Specification | €282.90 | |
 |
2613-CY | Straight | 2 | 3 | White, Yellow | 30A | 125V AC | Single | Federal Specification | €103.51 | |
 |
2323-B | Straight | 2 | 3 | Black | 20A | 250V AC | Single | Federal Specification | €46.26 |
