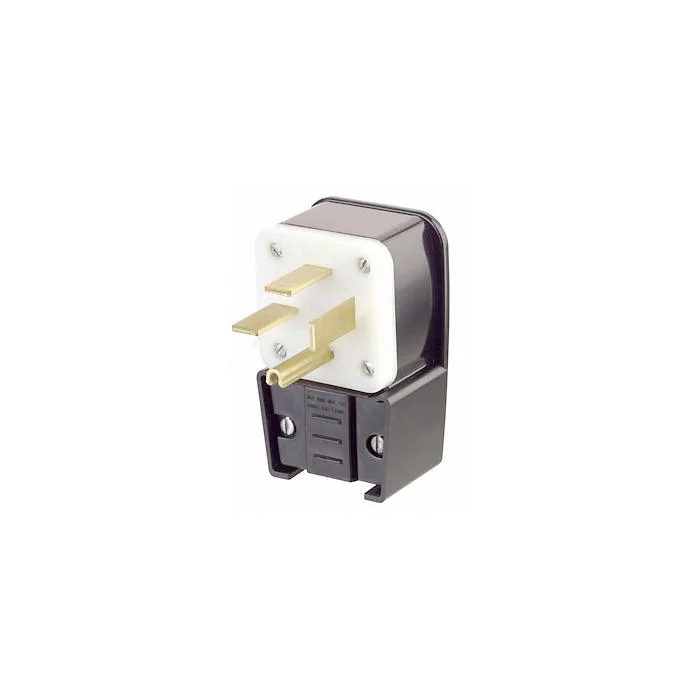

LEVITON 8452-P Angle Straight Blade Plug, 15-50P, 50 A, 250VAC, Black, 3 Poles, Screw Terminals | CR9JDE 792U55

LEVITON 8452-P Angled Straight Blade Power Plug, 250 VAC, 50 A, 3 Poles, 4 Wires, Black

Item: CR9JDEModel: 8452-PCross Ref: 792U55
7 In Stock

Ships within 2 days via

€176.33
5.00% off
€167.51 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Straight Blade Plug
Ac Hp Ratings At Rated Voltage 7 1/2 hp
Amps 50A
Assembly Screws Finish Zinc Plated
Assembly Screws Material Steel
Blade Material Brass
Blades/contacts Solid Brass
Body Material Super Tough Nylon
Color Black
Connection Orientation Angled
Cord Range 0.625" to 1.375"
Current Limiting Full Rated Current
Current Rating 50A
Device Type Power Device
Dielectric Voltage Withstands 2000V Per UL498
Features Angled
For Maximum Cable Diameter 1 3/8"
For Minimum Cable Diameter 5/8"
Grade General Use
Grounding Grounded , Grounding
Housing Color Black
Housing Material Super Tough Nylon
Hp 7 1/2 hp
Insulation Material Nylon
Ip Rating Not Rated
Max. Wire Size 4 AWG
Maximum Operating Temperature 140°F
Min. Operating Temp. -40°C
Min. Wire Size 10 AWG
Minimum Operating Temperature -40°F
Nema Enclosure Rating Not Rated
Nema Plug Configuration 15-50P
Nema Rating NEMA WD-6
No. Of Phase 3
Number Of Blades 4
Number Of Poles 3
Operating Temp. -40°C to +60°C
Phase Three
Polarized Yes
Product Datasheet leviton-8452-p.pdf
Resistance Properties Chemical Resistant, Moisture Resistant, Shatter And Crack Resistant
Standards Ansi C73, Csa C22.2 No. 42 File E152105, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 File E13399
Temp. Rise Max. 30°C After 50 Cycles Ol At 150 Percent Rated Current
Terminal Accom. Up to 4 AWG
Terminal Id Brass Hot, Green Ground, Silver Neutral
Ul 94 Flammability Rating V-2
Voltage 250V AC
Voltage Rating 250V AC
Wire 4
Wire Connection Type Screw Terminals
Wire Gauge 10 AWG to 4 AWG
Wiring Style Standard

Shipping Info:

Ship weight (kg) 0.27
Ship height (cm)22.54
Ship length (cm)27.62
Ship width (cm)8.89
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelAmpsVoltageWiring StyleNumber Of PolesNema Plug ConfigurationConnection OrientationHousing ColorNumber Of BladesPrice
LEVITON 7251-C Straight Blade Plug, 18-20P, 20 A, 120/208VAC, Yellow, 4 Poles | CR9HJH 792TX8 7251-C20A120/208V ACStandard4-StraightYellow4€202.86
LEVITON 5266-PLB Straight Blade Plug, 5-15P, 15 A, 125VAC, Black, 2 Poles, Screw Terminals, 5-15 | CR9HJM 792TM5 5266-PLB15A125V ACStandard2-StraightBlack3€45.73
LEVITON 5266-PLC Straight Blade Plug, 5-15P, 15 A, 125VAC, Black/White, 2 Poles, Screw Terminals, 5-15 | CR9HJP 792TM6 5266-PLC15A125V ACStandard25-15PStraightBlack, White3€42.18
LEVITON 5266-C Straight Blade Plug, 5-15P, 15 A, 125VAC, Black/White, 2 Poles, Screw Terminals, 5-15 | CR9HJQ 792TM2 5266-C15A125V ACStandard25-15PStraightBlack, White3€26.66
LEVITON 5266-CY Straight Blade Plug, 5-15P, 15 A, 125VAC, White/Yellow, 2 Poles | CR9HJU 792TM4 5266-CY15A125V ACStandard25-15PStraightWhite, Yellow3€23.11
LEVITON 5256-VY Straight Blade Plug, 5-15P, 15 A, 125VAC, Yellow, 2 Poles, Screw Terminals, 5-15 | CR9HJV 792TK3 5256-VY15A125V ACHinged25-15PStraightYellow3€17.03
LEVITON 5366-C Straight Blade Plug, 5-20P, 20 A, 125VAC, Black/White, 2 Poles, Screw Terminals, 5-20 | CR9HJY 792TT9 5366-C20A125V ACStandard25-20PStraightBlack, White3€34.55
