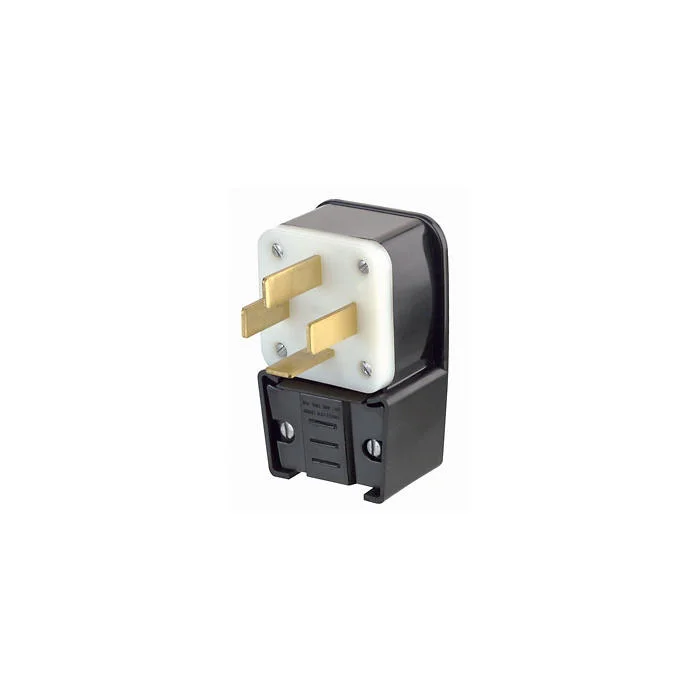

LEVITON 8362-P Angle Straight Blade Plug, 18-60P, 60 A, 120/208VAC, Black, 4 Poles | CR9JDG 792U46

LEVITON 8362-P Angled Cable Mount Non-Grounding Non-Polarized Straight Blade Plug, 3-Phase, 120/208 VAC, 60 A, 4 Poles, 4 Wires, Black

Item: CR9JDGModel: 8362-PCross Ref: 792U46
7 In Stock

Ships within 2 days via

€211.62
5.00% off
€201.04 /unit
This product can only be shipped in multiples of 10
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Straight Blade Plug
Ac Hp @ Rated Voltage 7 1/2 hp
Amps 60A
Amps Limiting Full Rated Current
Assembly Screws Finish Zinc Plated
Assembly Screws Material Steel
Blade Material Brass
Blades/contacts Solid Brass
Body Length 1.89"
Body Material Super Tough Nylon
Color Black
Connection Orientation Angled
Cord Range 0.625" to 1.375"
Device Type Straight Blade Plug
Dielectric Voltage Withstands 2000V Per UL498
Features Angled
For Max. Cable Dia. 1 3/8"
For Min. Cable Dia. 5/8"
Grade General Use
Grounding Non Grounded , Non Grounding
Housing Color Black
Housing Material Super Tough Nylon
Hp 7 1/2 hp
Insulation Material Nylon
Ip Rating Not Rated
Max. Operating Temp. 140°F
Max. Wire Size 4 AWG
Min. Operating Temp. -40°C , -40°F
Min. Wire Size 10 AWG
Nema Enclosure Rating Not Rated
Nema Plug Configuration 18-60P
Nema Rating NEMA WD-6
No. Of Blades 4
No. Of Poles 4
No. Of Wires 4
Operating Temp. -40°C to +60°C
Phase 3
Polarized Yes
Resistance Properties Chemical Resistant, Moisture Resistant, Shatter And Crack Resistant
Standards Ansi C73, Csa C22.2 No. 42 File E152105, Nema Wd-6, Nom 057 Certified, Rohs Compliant
Temp. Rise Max. 30°C After 50 Cycles Ol At 150 Percent Rated Current
Terminal Accom. Up to 4 AWG
Terminal Inside Dia. Brass Hot, Green Ground, Silver Neutral
Torque 16 lbs.-in. to 20 lbs.-in.
Ul 94 Flammability Rating V-2
Voltage 120/208V AC , 277V AC
Wire Connection Type Screw Terminal
Wire Gauge 10 AWG to 4 AWG
Wiring Style Standard

Shipping Info:

Ship weight (kg) 0.3
Ship height (cm)22.54
Ship length (cm)27.62
Ship width (cm)8.89
Country of OriginMX

Product Variants

ProductModelAmpsVoltageWiring StyleNema Plug ConfigurationConnection OrientationHousing ColorPolarizedHousing MaterialPrice
LEVITON 7251-C Straight Blade Plug, 18-20P, 20 A, 120/208VAC, Yellow, 4 Poles | CR9HJH 792TX8 7251-C20A120/208V ACStandard-StraightYellowYesSuper Tough Nylon€202.86
LEVITON 5266-PLB Straight Blade Plug, 5-15P, 15 A, 125VAC, Black, 2 Poles, Screw Terminals, 5-15 | CR9HJM 792TM5 5266-PLB15A125V ACStandard-StraightBlackYesImpact Modified Nylon€45.73
LEVITON 5266-PLC Straight Blade Plug, 5-15P, 15 A, 125VAC, Black/White, 2 Poles, Screw Terminals, 5-15 | CR9HJP 792TM6 5266-PLC15A125V ACStandard5-15PStraightBlack, WhiteYesImpact Modified Nylon€42.18
LEVITON 5266-C Straight Blade Plug, 5-15P, 15 A, 125VAC, Black/White, 2 Poles, Screw Terminals, 5-15 | CR9HJQ 792TM2 5266-C15A125V ACStandard5-15PStraightBlack, WhiteYesImpact Modified Nylon€26.66
LEVITON 5266-CY Straight Blade Plug, 5-15P, 15 A, 125VAC, White/Yellow, 2 Poles | CR9HJU 792TM4 5266-CY15A125V ACStandard5-15PStraightWhite, YellowYesImpact Modified Nylon€23.11
LEVITON 5256-VY Straight Blade Plug, 5-15P, 15 A, 125VAC, Yellow, 2 Poles, Screw Terminals, 5-15 | CR9HJV 792TK3 5256-VY15A125V ACHinged5-15PStraightYellowYesSuper Tough Nylon€17.03
LEVITON 5366-C Straight Blade Plug, 5-20P, 20 A, 125VAC, Black/White, 2 Poles, Screw Terminals, 5-20 | CR9HJY 792TT9 5366-C20A125V ACStandard5-20PStraightBlack, WhiteYesImpact Modified Nylon€34.55
