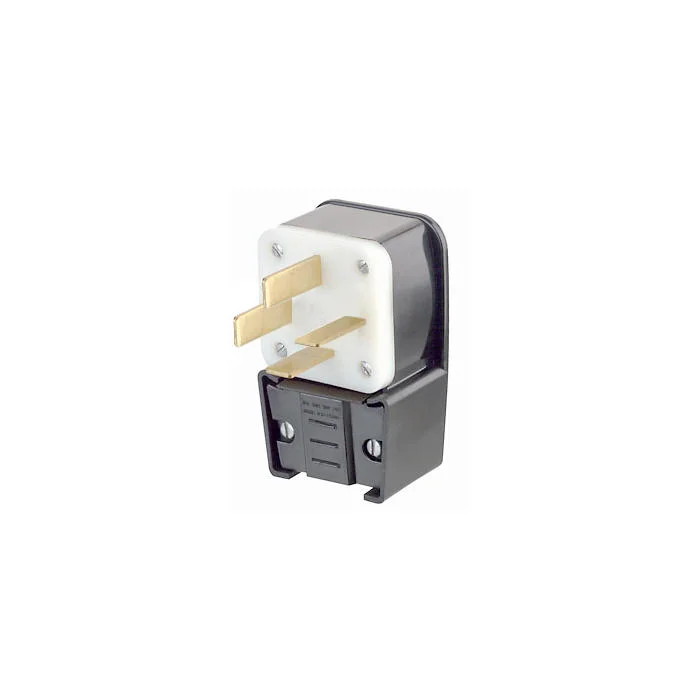

LEVITON 8352-P Angled Straight Blade Power Plug, 120/208 VAC, 50 A, 4 Poles, 4 Wires, Black
Item: CR9JDQModel: 8352-PCross Ref: 792U44
7 In Stock
Ships within 2 days via
5.00% off
€151.89 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Blade Plug |
| Ac Hp Ratings At Rated Voltage | 7 1/2 hp |
| Amps | 50A |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Blade Material | Brass |
| Blades/contacts | Solid Brass |
| Body Length | 1.89" |
| Body Material | Super Tough Nylon |
| Color | Black |
| Connection Orientation | Angled |
| Connection Type | WYE |
| Cord Range | 0.625" to 1.375" |
| Current Limiting | Full Rated Current |
| Current Rating | 50A |
| Device Type | Power Device |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Features | Angled |
| For Maximum Cable Diameter | 1 3/8" |
| For Minimum Cable Diameter | 5/8" |
| Grade | General Use |
| Grounding | Non Grounded , Non Grounding |
| Housing Color | Black |
| Housing Material | Super Tough Nylon |
| Hp | 7 1/2 hp |
| Insulation Material | Nylon |
| Ip Rating | Not Rated |
| Max. Wire Size | 4 AWG |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 10 AWG |
| Nema Enclosure Rating | Not Rated |
| Nema Plug Configuration | 18-50P |
| Nema Rating | NEMA WD-6 |
| No. Of Phase | 3 |
| No. Of Wires | 4 |
| Number Of Blades | 4 |
| Number Of Poles | 4 |
| Operating Temp. | -40°C to +60°C |
| Phase | Three |
| Polarized | Yes |
| Product Datasheet | leviton-8352-p.pdf |
| Resistance Properties | Chemical Resistant, Moisture Resistant, Shatter And Crack Resistant |
| Standards | Ansi C73, Csa C22.2 No. 42 File E152105, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 File E13399 |
| Temp. Rise | Max. 30°C After 50 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | Up to 4 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 120/208V AC |
| Voltage Rating | 120/208V AC |
| Wire Connection Type | Screw Terminals |
| Wire Gauge | 10 AWG to 4 AWG |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.3 |
| Ship height (cm) | 22.54 |
| Ship length (cm) | 27.62 |
| Ship width (cm) | 8.89 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Voltage | Wiring Style | Number Of Poles | Nema Plug Configuration | Connection Orientation | Housing Color | Number Of Blades | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7251-C | 20A | 120/208V AC | Standard | 4 | - | Straight | Yellow | 4 | €202.86 | |
 |
5266-PLB | 15A | 125V AC | Standard | 2 | - | Straight | Black | 3 | €45.73 | |
 |
5266-PLC | 15A | 125V AC | Standard | 2 | 5-15P | Straight | Black, White | 3 | €42.18 | |
 |
5266-C | 15A | 125V AC | Standard | 2 | 5-15P | Straight | Black, White | 3 | €26.66 | |
 |
5266-CY | 15A | 125V AC | Standard | 2 | 5-15P | Straight | White, Yellow | 3 | €23.11 | |
 |
5256-VY | 15A | 125V AC | Hinged | 2 | 5-15P | Straight | Yellow | 3 | €17.03 | |
 |
5366-C | 20A | 125V AC | Standard | 2 | 5-20P | Straight | Black, White | 3 | €34.55 |
