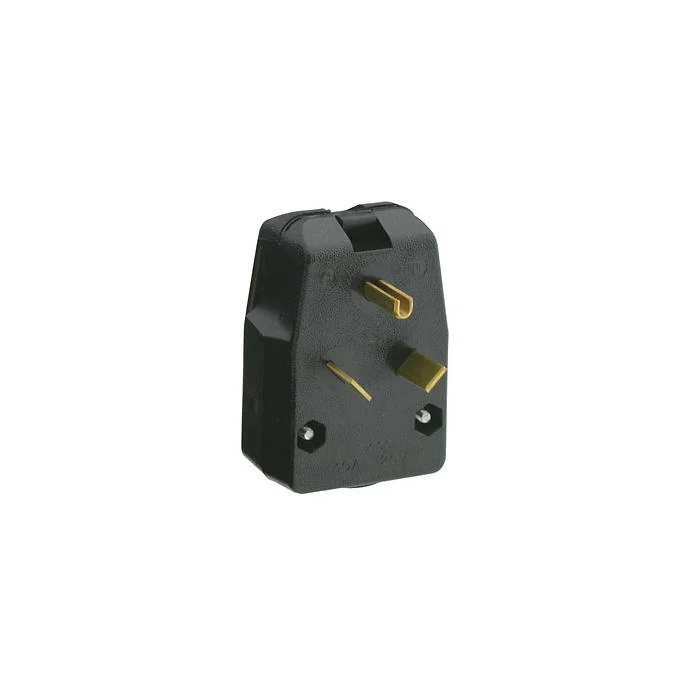

LEVITON 830-E Angle Grounding Straight Blade Plug, 125 VAC, 30 A, 2 Poles, 3 Wires, Black
Item: CR9HKLModel: 830-ECross Ref: 792U38
7 In Stock
Ships within 2 days via
5.00% off
€66.34 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug |
| Amps | 30A |
| Blade Material | Brass |
| Connection Orientation | Angled |
| For Location | Indoor, Outdoor |
| For Max. Cable Dia. | 7/8" |
| For Min. Cable Dia. | 0.687" |
| Grounding | Grounded |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Hp | 2 hp |
| Ip Rating | Not Rated |
| Max. Operating Temp. | 140°F |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C , -40°F |
| Nema Plug Configuration | TT-30P |
| No. Of Blades | 3 |
| No. Of Poles | 2 |
| Phase | 1 |
| Polarized | No |
| Standards | Ansi C73, Csa C22.2 No. 42 File E152105, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 File E13399 |
| Voltage | 125V AC |
| Wire Connection Type | Screw Terminal |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 27.62 |
| Ship width (cm) | 15.24 |
| Country of Origin | MX |
Product Variants
| Product | Model | Amps | Voltage | Wiring Style | Nema Plug Configuration | Connection Orientation | Housing Color | Polarized | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7251-C | 20A | 120/208V AC | Standard | - | Straight | Yellow | Yes | Super Tough Nylon | €202.86 | |
 |
5266-PLB | 15A | 125V AC | Standard | - | Straight | Black | Yes | Impact Modified Nylon | €45.73 | |
 |
5266-PLC | 15A | 125V AC | Standard | 5-15P | Straight | Black, White | Yes | Impact Modified Nylon | €42.18 | |
 |
5266-C | 15A | 125V AC | Standard | 5-15P | Straight | Black, White | Yes | Impact Modified Nylon | €26.66 | |
 |
5266-CY | 15A | 125V AC | Standard | 5-15P | Straight | White, Yellow | Yes | Impact Modified Nylon | €23.11 | |
 |
5256-VY | 15A | 125V AC | Hinged | 5-15P | Straight | Yellow | Yes | Super Tough Nylon | €17.03 | |
 |
5366-C | 20A | 125V AC | Standard | 5-20P | Straight | Black, White | Yes | Impact Modified Nylon | €34.55 |
