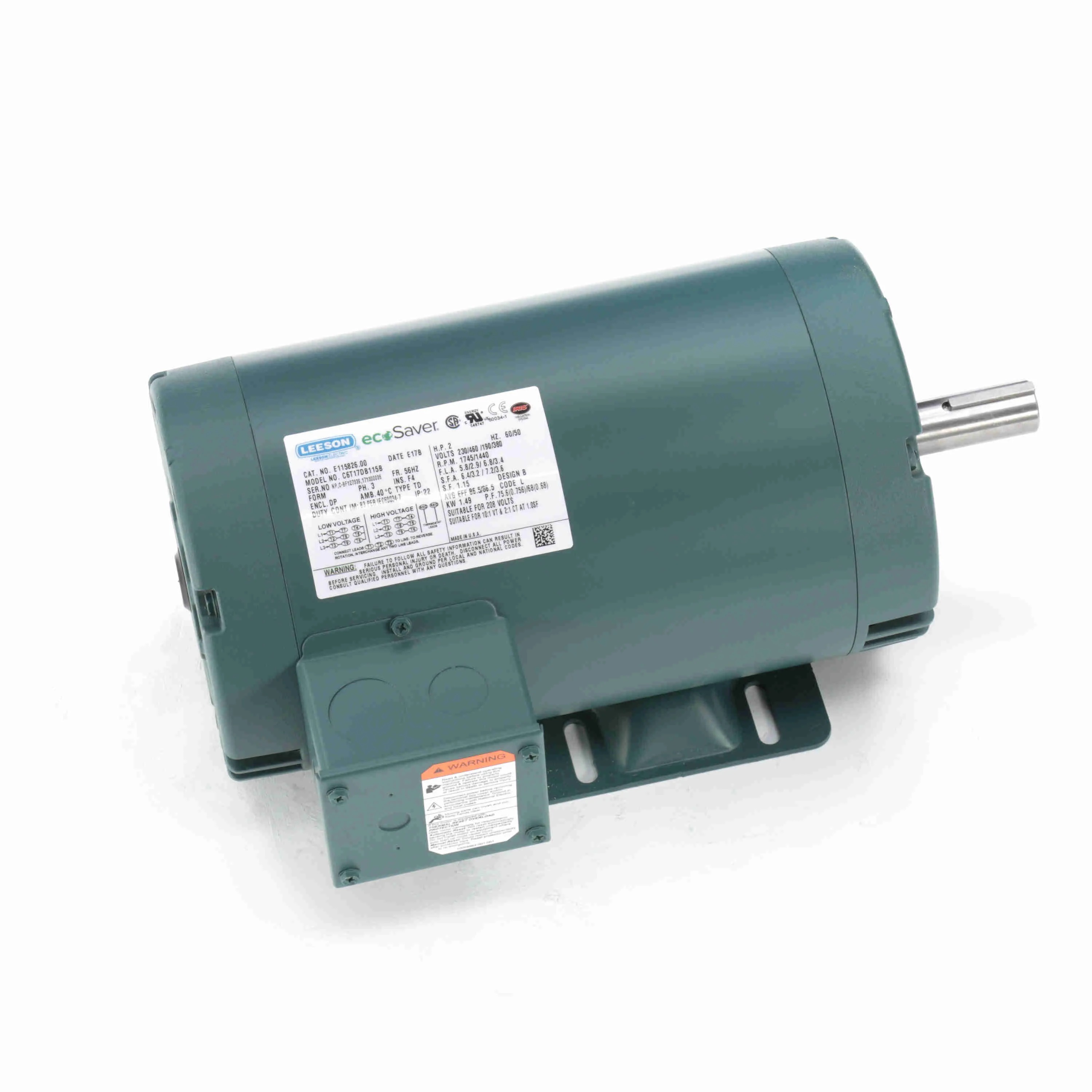

LEESON E115826.00 C6T17DB115B General Purpose Motor, 2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, Dec 23
€805.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 2.9/5.8A |
| Application Type | Compressor Motors, Fan And Blower Motors, General Purpose Ac Motors |
| Assembly/box Mounting | F1 Only |
| Code | L |
| Curvepoint | Pull Up |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | ODP |
| Frame | 56HZ |
| Frame Length | 8 1/2" |
| Frame Material | Rolled Steel |
| Frame Size | 56HZ |
| Frame Suffix | Hz |
| Frequency | 50/60 Hz |
| Full Load Amps | 5.8/2.9A |
| Grease Type | Polyrex EM |
| Height | 10.63" |
| Hp | 2 hp |
| Insulation Class | Class F |
| Inverter Load Ratio | 10:1 |
| Inverter Load Type | Constant |
| Ip Code | IP22 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 19.69" |
| Load | 1 |
| Lubrication | Polyrex EM |
| Material | Rolled Steel |
| Motor Enclosure Design | Dripproof |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Design | B, L |
| Nema Rating | NEMA 145T |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.5 kW |
| Overall Length | 13.69" |
| Packaging | B |
| Phase | 3 |
| Power Factor | 75.6 |
| Resistance Main | 1.5 ohms |
| Rotation Type | Reversible |
| Rpm | 1745 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Starting Method | Line Or Inverter |
| Synchronous Rpm | 1800/1500 RPM |
| Thermal Protection | Thermostat |
| Torque | 24.6 lbs.-ft. |
| Torque Rating | 6 lbs.-ft. |
| Torquepct | 410 |
| Type | TD |
| Variable Torque Speed Range | 10 |
| Voltage | 230/460V AC |
| Voltage Rating | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 27 |
| Ship length (cm) | 50.01 |
| Ship width (cm) | 28.58 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - 115826.00 / C6T17DB78A
- Eff 100%: 86.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 10000418-001-001
- Winding: T634340
- GROUP: 3
- Paint: GREEN - LEESON WATTSAVER
- S. F Amps: 6.4 / 3.2
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Mounting Type | Service Factor | Frame | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
170144.60 | 208-230/460V AC | 1800/1500 RPM | 10 hp, 7 1/2 hp | 28.5-25.6/12.8A | Rigid Base | 1.15 | 215T | Class F | - | RFQ
|
 |
E110028.00 | 230/460V AC | 1200/1000 RPM | 3/4 hp | 2.8/1.4A | C Face Footed Rigid Base | 1.15 | 56 | Class F | €1,325.82 | |
 |
E115825.00 | 230/460V AC | 1800/1500 RPM | 1 1/2 hp | 4.8/2.4A | Rigid Base | 1.15 | 56HZ | Class F | €1,149.77 | |
 |
E115827.00 | 230/460V AC | 1800/1500 RPM | 1 hp | 3.2/1.6A | Rigid Base | 1.15 | 56HZ | Class F | €645.31 | |
 |
E119351.00 | 208-230/460V AC | 1800/1500 RPM | 1/2 hp | 1.8-2/1A | C Face Footed Rigid Base | 1.25 | 56 | Class B | €472.66 |
