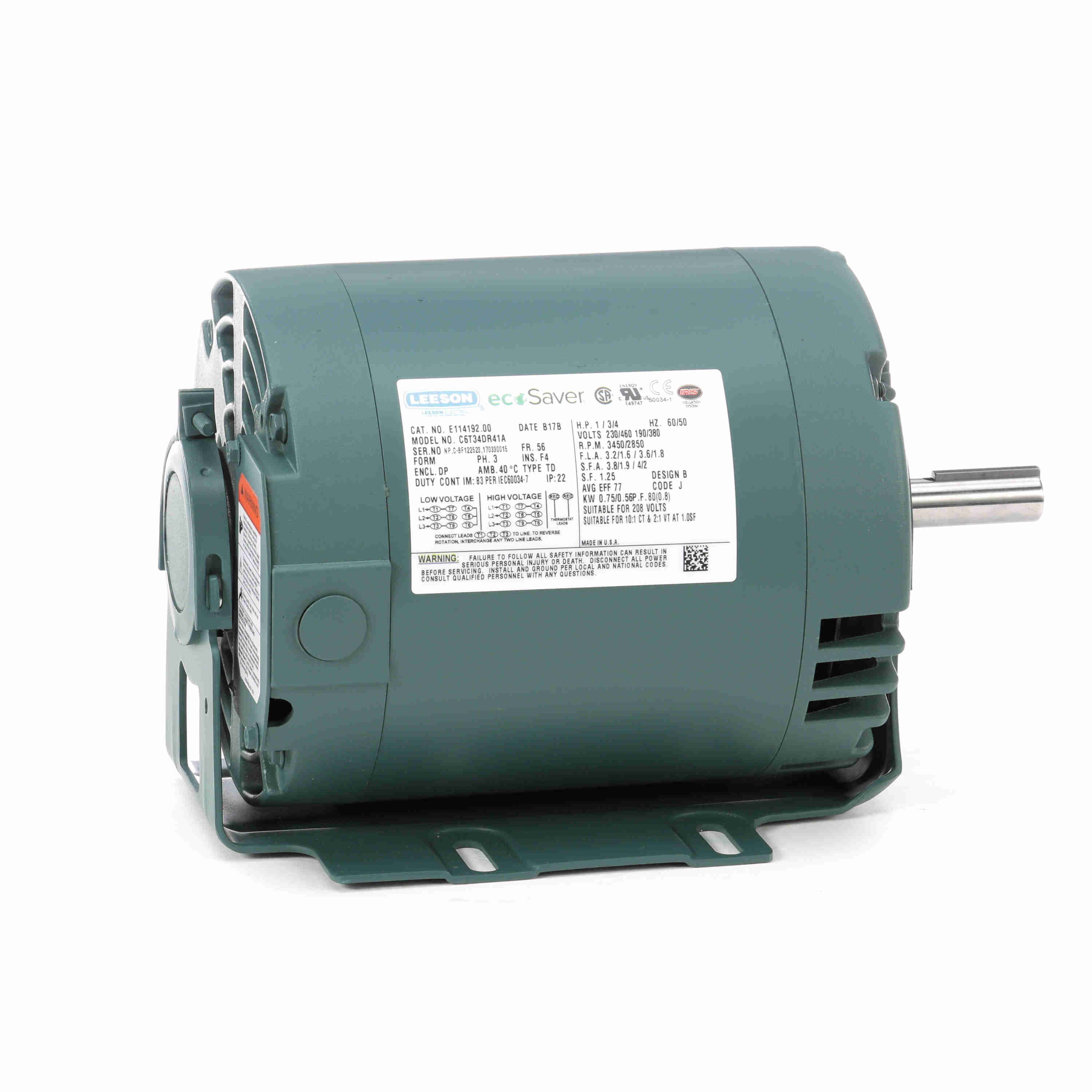

LEESON E114192.00 C6T34DR41A General Purpose Motor, 1/0.75 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 RPM
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€768.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Amps | 1.6/3.2A |
| Application Type | General Purpose Ac Motors |
| Assembly/box Mounting | F1 Only |
| Code | J |
| Curvepoint | Break Down |
| Design Code | B |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 77% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | ODP |
| Frame | 56 |
| Frame Length | 5" |
| Frame Material | Rolled Steel |
| Frame Size | 56 |
| Frame Suffix | Not Available |
| Frequency | 50/60 Hz |
| Full Load Amps | 3.2/1.6A |
| Height | 10 22/25" |
| Hp | 1 hp |
| Insulation Class | Class F |
| Inverter Load Ratio | 10:1 |
| Inverter Load Type | Constant |
| Ip Code | IP22 |
| Kva Code | J |
| Kw | 0.75 kW |
| Length | 14 11/25" |
| Load | 0 |
| Lubrication | Polyrex EM |
| Material | Rolled Steel |
| Motor Mounting Type | Resilient Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Motor Type | TD |
| Mounting Type | Resilient Base |
| Nema Design | B |
| Nema Rating | NEMA 56 |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.56/0.75 kW |
| Overall Length | 10.82" |
| Packaging | B |
| Phase | 3 |
| Power | 0.75/0.56 kW |
| Power Factor | 80 |
| Resistance Main | 23.07 ohms |
| Rotation Type | Reversible |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1.87" |
| Starting Method | Line Or Inverter |
| Synchronous Rpm | 3600/3000 RPM |
| Thermal Protection | Thermostat |
| Torque | 5 lbs.-ft. |
| Torque Rating | 1.5 lbs.-ft. |
| Torquepct | 333 |
| Variable Torque Speed Range | 10 |
| Voltage | 230/460V AC |
| Voltage Rating | 230/460V AC |
| Width | 6 2/5" |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 20.17 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - 114192.00 / C6T34DR35B
- Eff 100%: 77
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 10000418-001-001
- Winding: T632161
- GROUP: 3
- Paint: GREEN - LEESON WATTSAVER
- S. F Amps: 3.8 / 1.9
Product Variants
| Product | Model | Voltage | Hp | Frame | Shaft Length | Insulation Class | Thermal Protection | Efficiency | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

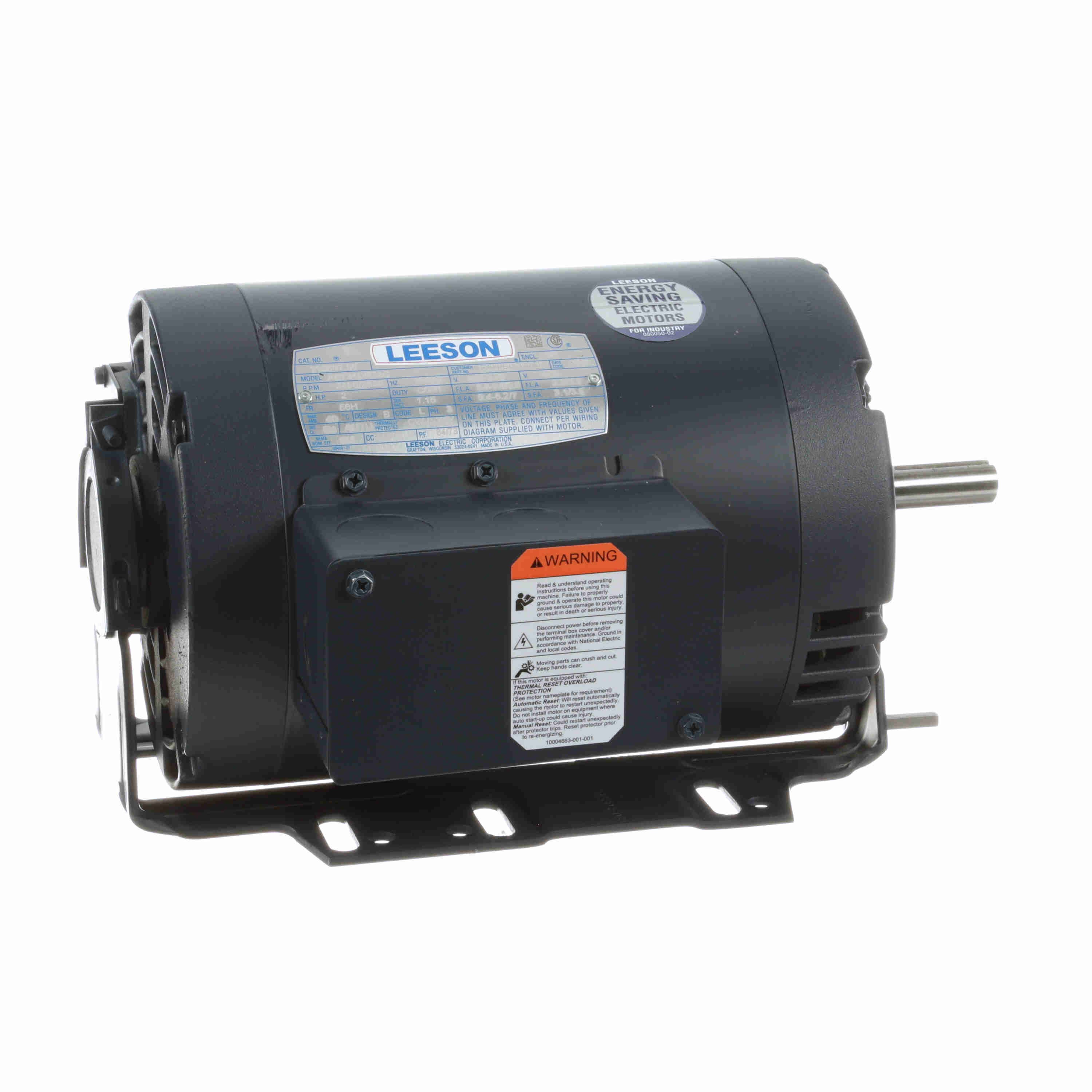

113897.00 | 208-230/460V | 2 hp | 56H | 1 22/25" | Class B | Automatic | 82.5% | 84 | €228.50 | |
 |

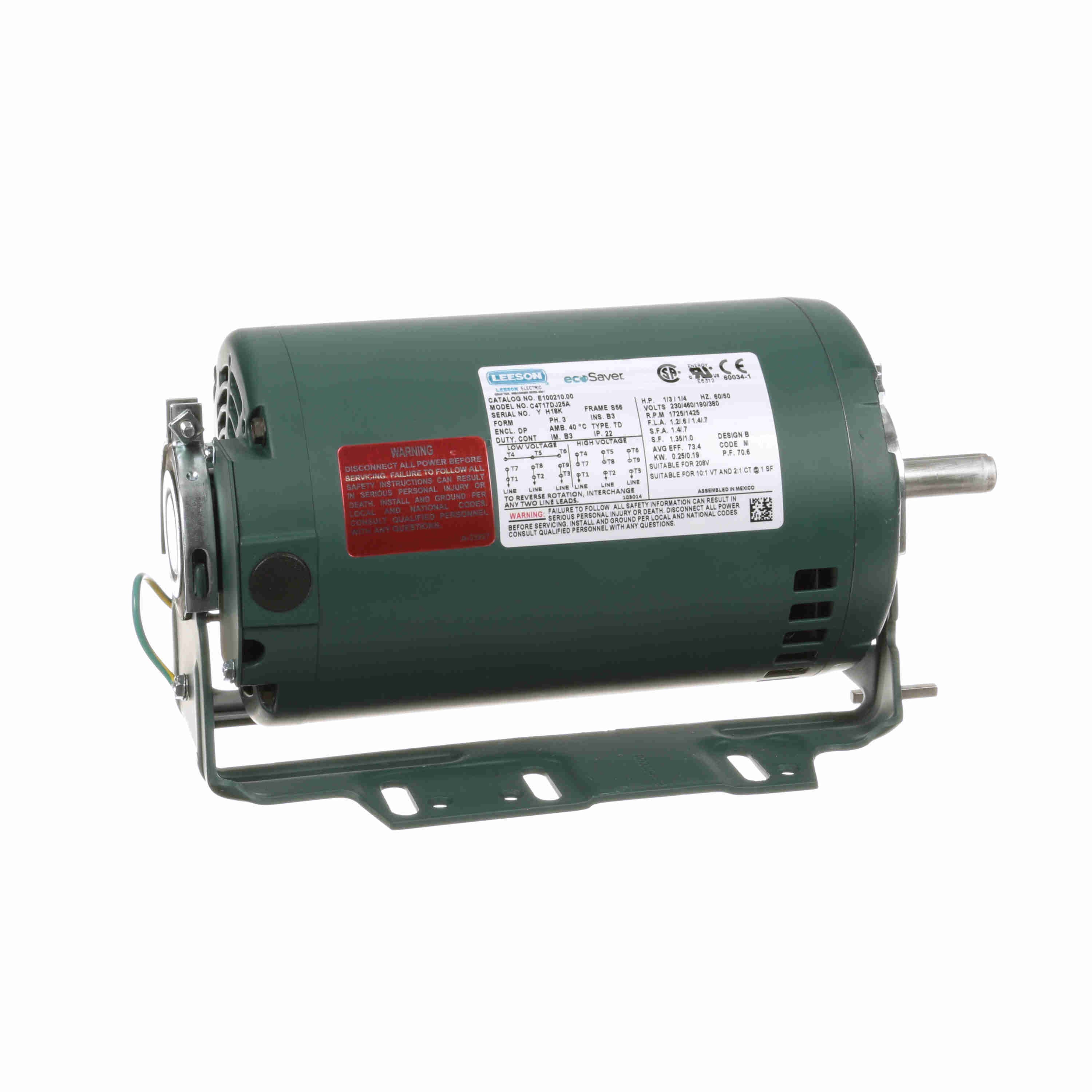

E100210.00 | 230/460V AC | 33/100 hp | S56 | 1 22/25" | Class B | No Protection | 73.4% | 70.6 | €103.71 |
