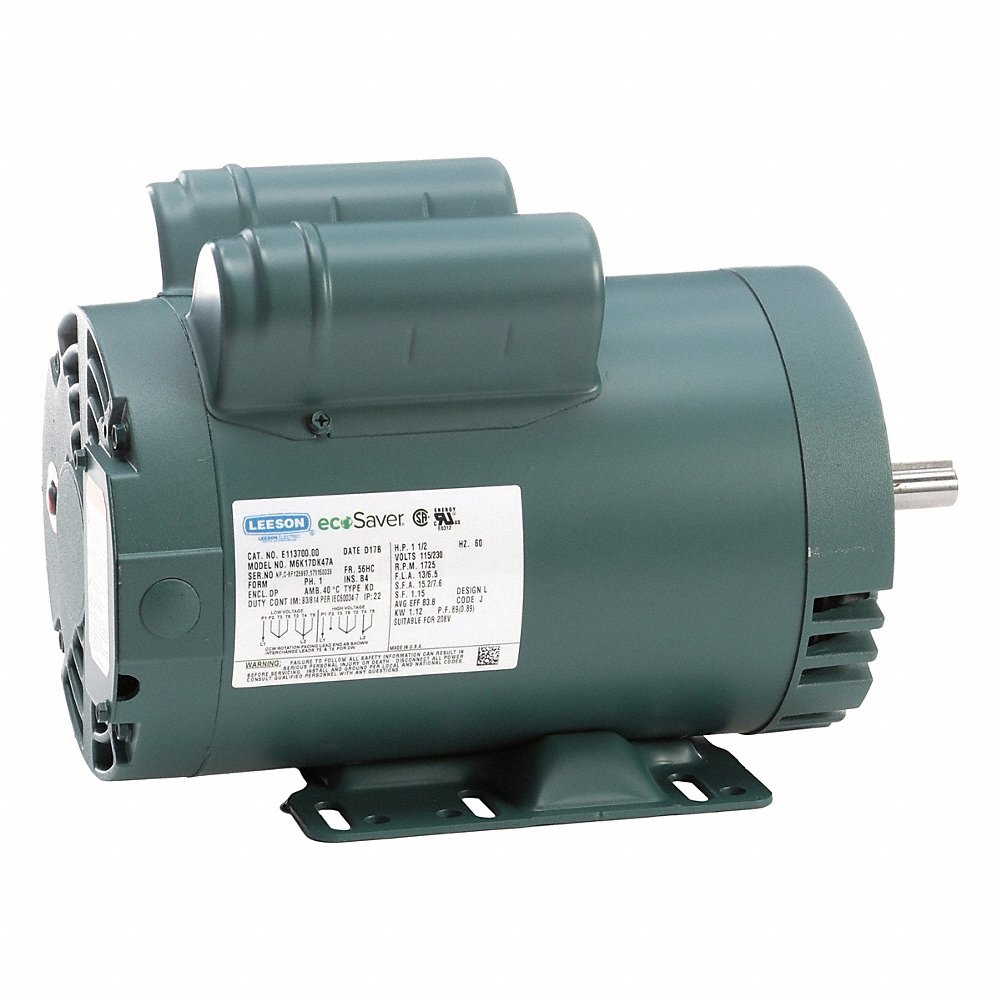

LEESON E113700.00 M6K17DK47A General Purpose Motor, 1.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Wednesday, May 20
5.00% off
€1,283.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Amps | 6.5/13A |
| Application Type | General Purpose Ac Motors |
| Assembly/box Mounting | F1 Only |
| Code | J |
| Curvepoint | Full Load |
| Design Code | L |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 83.8% |
| Electrical Type | Capacitor Start, Capacitor Run |
| Enclosure Type | ODP |
| Frame | 56HC |
| Frame Length | 8" |
| Frame Material | Rolled Steel |
| Frame Size | 56HC |
| Frame Suffix | Hc |
| Frequency | 60 Hz |
| Full Load Amps | 13/6.5A |
| Grease Type | Polyrex EM |
| Height | 8.13" |
| Hp | 1 1/2 hp |
| Insulation Class | Class B |
| Ip Code | IP22 |
| Kva Code | J |
| Kw | 1.1 kW |
| Length | 14.63" |
| Load | 1 |
| Lubrication | Polyrex EM |
| Material | Rolled Steel |
| Motor Enclosure Design | Dripproof |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | C Face Footed Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | J, L |
| Nema Rating | NEMA 56 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.1 kW |
| Overall Length | 12.87" |
| Packaging | B |
| Phase | 1 |
| Power Factor | 89 |
| Product Datasheet | leeson-e113700-00.pdf |
| Resistance Main | 0 ohms |
| Rotation Type | Selective CCW |
| Rpm | 1725 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Special Features | Capacitor Start Motors |
| Starting Method | Across The Line |
| Synchronous Rpm | 1800 RPM |
| Thermal Protection | Manual |
| Torque Rating | 4.5 lbs.-ft. |
| Torquepct | 100 |
| Type | KD |
| Variable Torque Speed Range | 10 |
| Voltage | 115/230V AC |
| Voltage Rating | 115/230V AC |
| Width | 6 1/2" |
Shipping Info:
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 20.65 |
| Ship length (cm) | 37.16 |
| Ship width (cm) | 28.58 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - 113700.00
- Eff 100%: 83.8
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 10008461-001-001
- Winding: K634339
- GROUP: 3
- Paint: GREEN - LEESON WATTSAVER
- S. F Amps: 15.2 / 7.6
Documentation:
Product Variants
| Product | Model | Voltage | Phase | Hp | Frequency | Full Load Amps | Mounting Type | Motor Type | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E100025.00 | 115/230V AC | 1 | 1/2 hp | 60 Hz | 4.6/2.3A | Round, C Face Footless | Capacitor Start/Run | 1.25 | €802.83 | |
 |
E100116.00 | 115/230V AC | 1 | 33/100 hp | 60 Hz | 3.8/1.9A | Rigid Base | Capacitor Start/Run | 1.35 | €602.01 | |
 |
E100336.00 | 115/230V AC | 1 | 33/100 hp | 60 Hz | 3/1.5A | Rigid Base | Capacitor Start/Run | 1.35 | €89.10 | |
 |
E100337.00 | 115/230V AC | 1 | 1/2 hp | 60 Hz | 4.4/2.2A | Rigid Base | Capacitor Start/Run | 1.25 | €84.02 | |
 |
E100338.00 | 115/230V AC | 1 | 1/2 hp | 60 Hz | 4.6/2.3A | Rigid Base | Capacitor Start/Run | 1.25 | €541.17 | |
 |
E114192.00 | 230/460V AC | 3 | 1 hp | 50/60 Hz | 3.2/1.6A | Resilient Base | TD | 1.25 | €853.80 | |
 |
E115825.00 | 230/460V AC | 3 | 1 1/2 hp | 50/60 Hz | 4.8/2.4A | Rigid Base | Squirrel Cage Inverter Rated | 1.15 | €1,149.77 |
