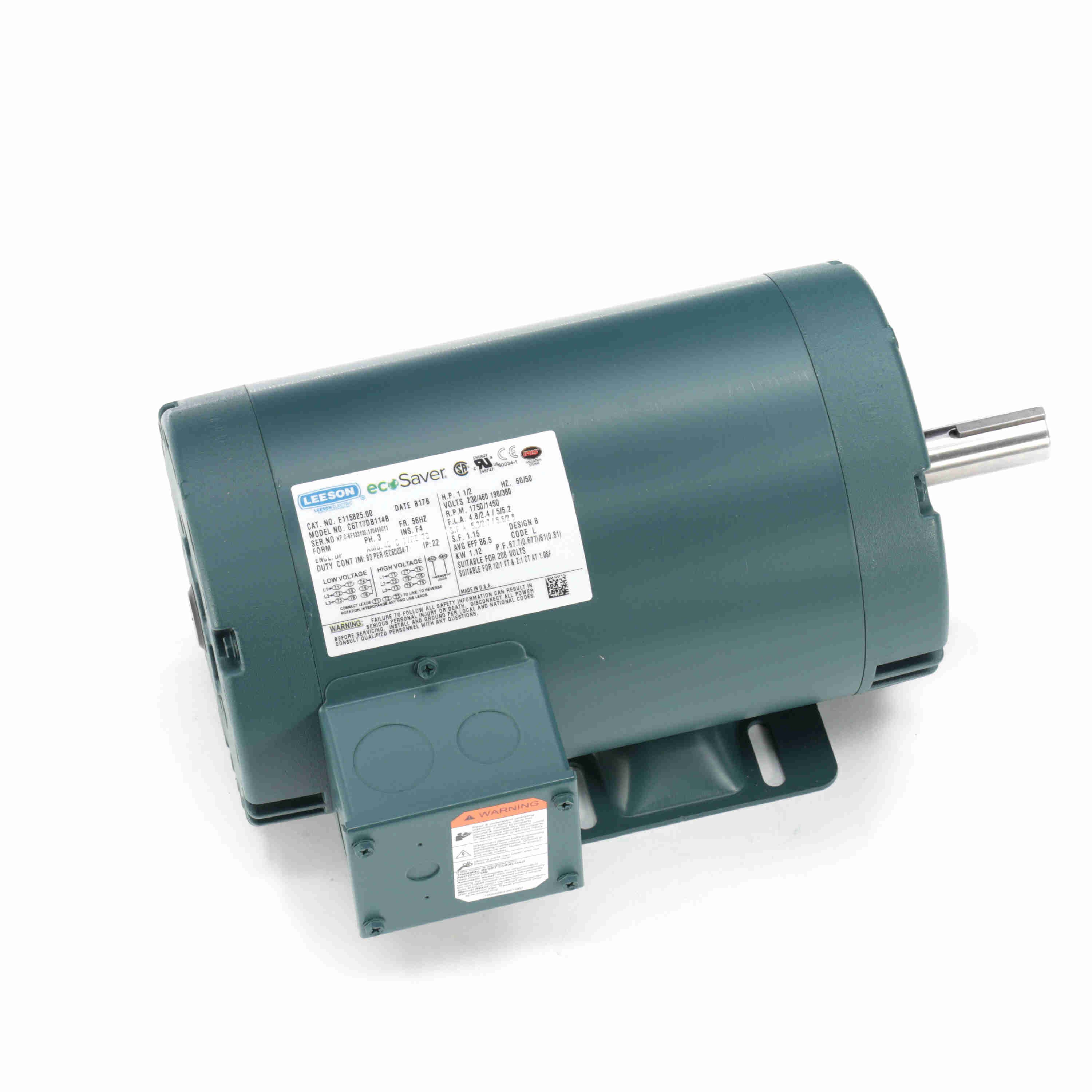

LEESON E115825.00 C6T17DB114B General Purpose Motor, 1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, May 19
5.00% off
€1,092.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 2.4/4.8A |
| Application Type | Compressor Motors, Fan And Blower Motors, General Purpose Ac Motors |
| Assembly/box Mounting | F1 Only |
| Code | L |
| Curvepoint | Break Down |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | ODP |
| Frame | 56HZ |
| Frame Length | 8" |
| Frame Material | Rolled Steel |
| Frame Size | 56HZ |
| Frame Suffix | Hz |
| Frequency | 50/60 Hz |
| Full Load Amps | 4.8/2.4A |
| Grease Type | Polyrex EM |
| Height | 10.63" |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Inverter Load Ratio | 10:1 |
| Inverter Load Type | Constant |
| Ip Code | IP22 |
| Kva Code | L |
| Kw | 1.1 kW |
| Length | 14.63" |
| Load | 1.25 |
| Lubrication | Polyrex EM |
| Material | Rolled Steel |
| Motor Enclosure Design | Dripproof |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Design | B, L |
| Nema Rating | NEMA 145T |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.1 kW |
| Overall Length | 13.19" |
| Phase | 3 |
| Power Factor | 67.7 |
| Product Datasheet | leeson-e115825-00.pdf |
| Resistance Main | 2.27 ohms |
| Rotation Type | Reversible |
| Rpm | 1750 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 1.47" |
| Starting Method | Line Or Inverter |
| Synchronous Rpm | 1800/1500 RPM |
| Thermal Protection | Thermostat |
| Torque | 19.8 lbs.-ft. |
| Torque Rating | 4.5 lbs.-ft. |
| Torquepct | 440 |
| Type | TD |
| Variable Torque Speed Range | 10 |
| Voltage | 230/460V AC |
| Voltage Rating | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 27 |
| Ship length (cm) | 37.16 |
| Ship width (cm) | 28.58 |
| Country of Origin | US |
Product Details:
- Eff 100%: 86.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 10000418-001-001
- Winding: T634341
- GROUP: 3
- Paint: GREEN - LEESON WATTSAVER
- S. F Amps: 5.3 / 2.7
Documentation:
Product Variants
| Product | Model | Voltage | Phase | Hp | Frequency | Full Load Amps | Mounting Type | Motor Type | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E100025.00 | 115/230V AC | 1 | 1/2 hp | 60 Hz | 4.6/2.3A | Round, C Face Footless | Capacitor Start/Run | 1.25 | €802.83 | |
 |
E100116.00 | 115/230V AC | 1 | 33/100 hp | 60 Hz | 3.8/1.9A | Rigid Base | Capacitor Start/Run | 1.35 | €602.01 | |
 |
E100336.00 | 115/230V AC | 1 | 33/100 hp | 60 Hz | 3/1.5A | Rigid Base | Capacitor Start/Run | 1.35 | €89.10 | |
 |
E100337.00 | 115/230V AC | 1 | 1/2 hp | 60 Hz | 4.4/2.2A | Rigid Base | Capacitor Start/Run | 1.25 | €84.02 | |
 |
E100338.00 | 115/230V AC | 1 | 1/2 hp | 60 Hz | 4.6/2.3A | Rigid Base | Capacitor Start/Run | 1.25 | €541.17 | |
 |
E113700.00 | 115/230V AC | 1 | 1 1/2 hp | 60 Hz | 13/6.5A | C Face Footed Rigid Base | Capacitor Start/Run | 1.15 | €1,350.97 | |
 |
E114192.00 | 230/460V AC | 3 | 1 hp | 50/60 Hz | 3.2/1.6A | Resilient Base | TD | 1.25 | €853.80 |
