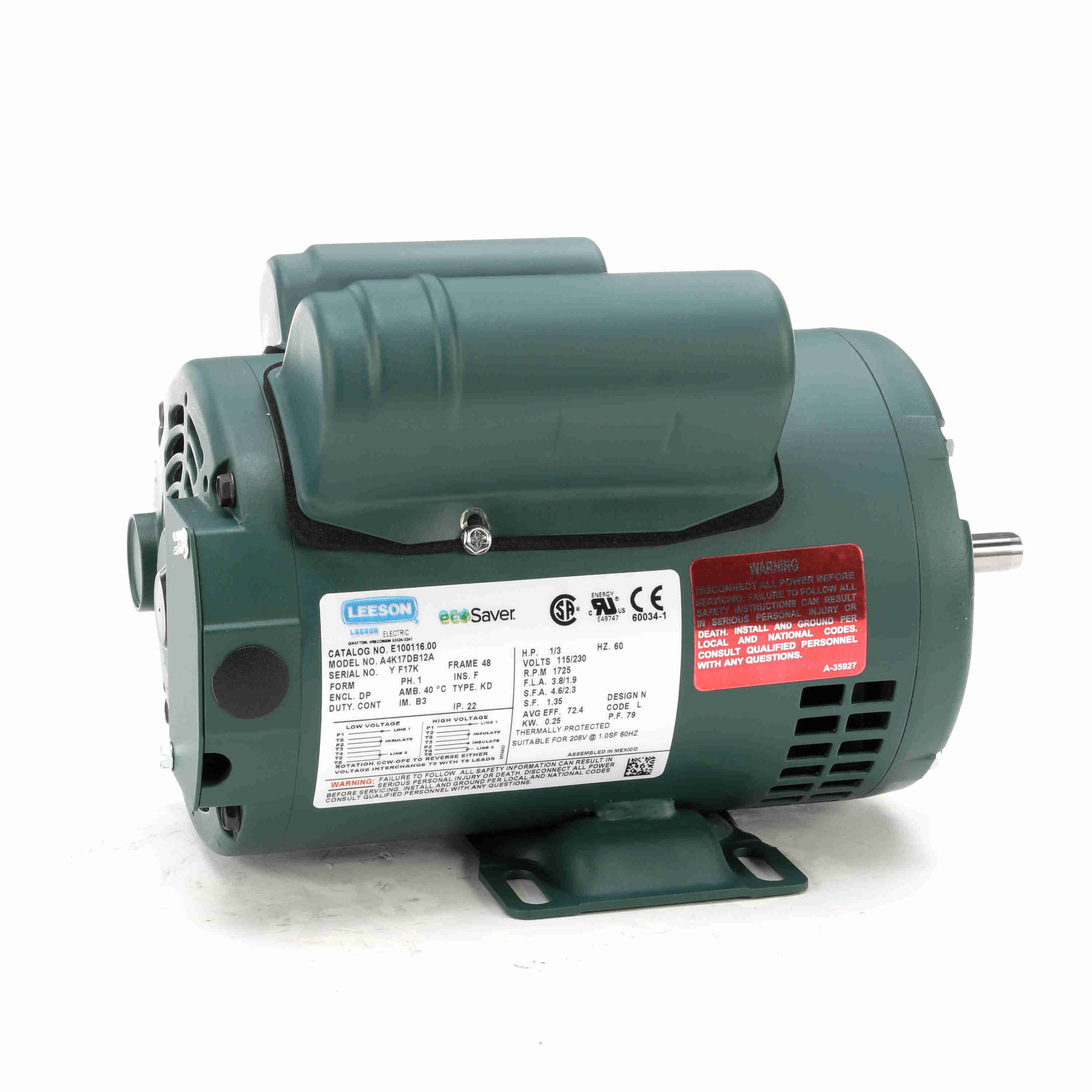

LEESON E100116.00 A4K17DB12A General Purpose Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€541.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 1.9/3.8A |
| Application Type | General Purpose Ac Motors |
| Assembly/box Mounting | F1 Only |
| Code | L |
| Curvepoint | Full Load |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 72.4% |
| Electrical Type | Capacitor Start, Capacitor Run |
| Enclosure Type | ODP |
| Frame | 48 |
| Frame Length | 7" |
| Frame Material | Rolled Steel |
| Frame Size | 48 |
| Frame Suffix | Not Available |
| Frequency | 60 Hz |
| Full Load Amps | 3.8/1.9A |
| Grease Type | Polyrex EM |
| Height | 8 3/4" |
| Hp | 33/100 hp |
| Insulation Class | Class F |
| Ip Code | IP22 |
| Kva Code | L |
| Kw | 0.25 kW |
| Length | 13 3/4" |
| Load | 1.5 |
| Lubrication | Polyrex EM |
| Material | Rolled Steel |
| Motor Enclosure Design | Dripproof |
| Motor Orientation | Horizontal |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | L, N |
| Nema Rating | NEMA 48 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.25 kW |
| Overall Length | 10.62" |
| Packaging | F |
| Phase | 1 |
| Power Factor | 79 |
| Resistance Main | 0 ohms |
| Rotation Type | Selective CCW |
| Rpm | 1725 RPM |
| Service Factor | 1.35 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Special Features | Capacitor Start Motors |
| Starting Method | Across The Line |
| Synchronous Rpm | 1800 RPM |
| Thermal Protection | Automatic |
| Torque Rating | 16 lbs.-ft. |
| Torquepct | 100 |
| Type | KD |
| Variable Torque Speed Range | 10 |
| Voltage | 115/230V AC |
| Voltage Rating | 115/230V AC |
| Width | 6.17" |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
Product Details:
- Supersedes Leeson - 100116.00
- Eff 100%: 72.4
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 10000417-001-001
- Winding: BE484111
- GROUP: 3
- Paint: GREEN (POWDER)
- S. F Amps: 4.6 / 2.3
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Motor Type | Service Factor | Frame | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
131530.00 | 115V | 1800 RPM | 3 hp | 33.8/16.9A | Capacitor Start | 1.15 | 184T | Class F | €999.79 | |
 |
131535.00 | 115/208-230V | 1800 RPM | 2 hp | 24.5/13-12.4A | Capacitor Start/Run | 1.15 | 182T | Class F | €805.01 | |
 |
131560.00 | 208V | 1800 RPM | 5 hp | 23.2A | Capacitor Start/Run | 1.15 | 184T | Class F | €890.25 | |
 |
131561.00 | 115-230V | 1800 RPM | 3 hp | 33.8/16.9A | Capacitor Start/Run | 1.15 | 184T | Class F | €967.42 | |
 |
131616.00 | 208-230V | 3600 RPM | 5 hp | 22-24A | Capacitor Start/Run | 1.15 | MX184T | Class F | €1,044.75 | |
 |
131636.00 | 115/208-230V | 3600 RPM | 3 hp | 28/15.2-14A | Capacitor Start/Run | 1.15 | 182T | Class F | €869.22 | |
 |
E100006.00 | 115/230V AC | 1800 RPM | 33/100 hp | 3.8/1.9A | Capacitor Start/Run | 1.35 | S56 | Class B | €814.98 |
