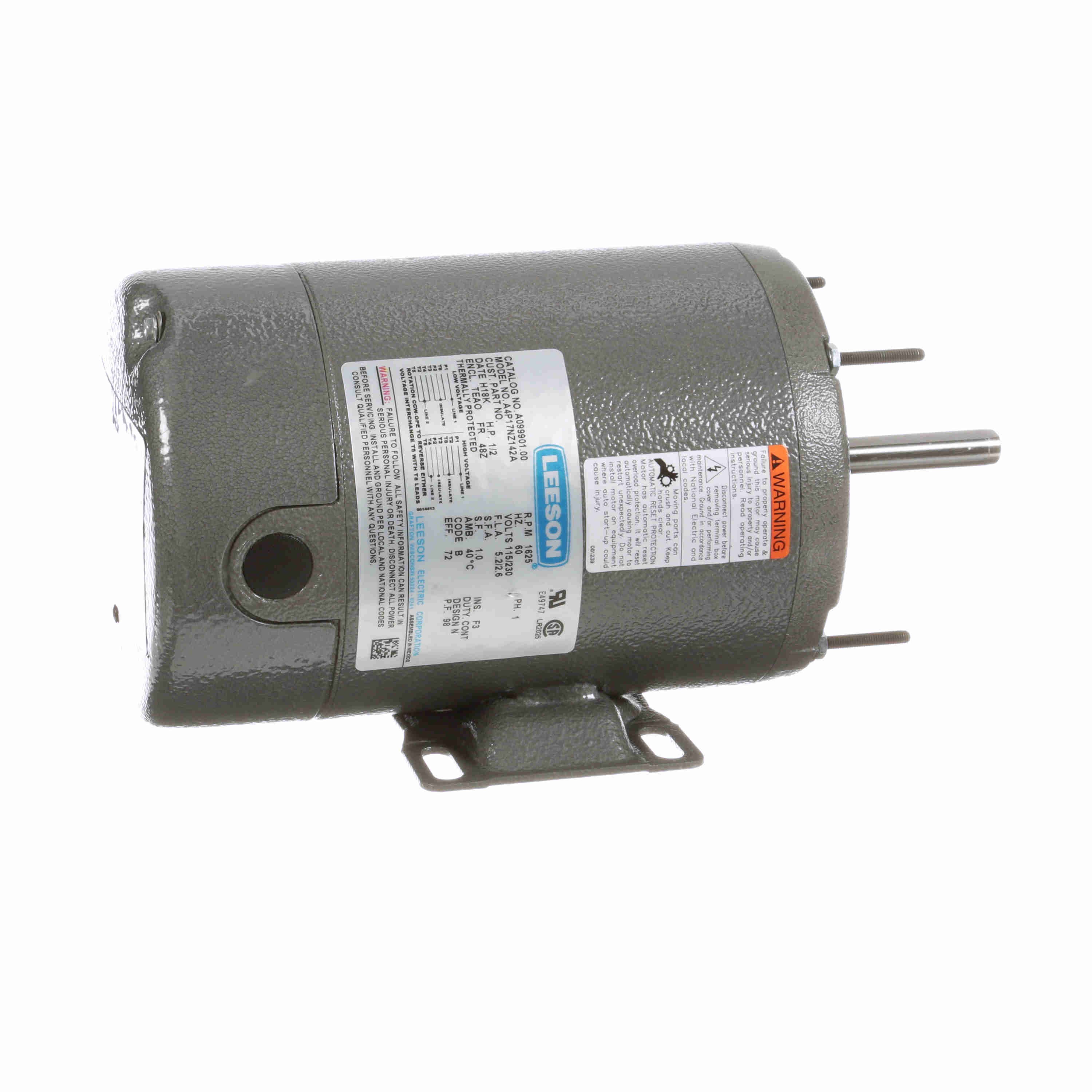

LEESON A099901.00 A4P17NZ142A Agricultural Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Wednesday, May 20
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€641.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 2.6/5.2A |
| Application Type | Farm Duty Motors, Fan And Blower Motors, General Purpose HVAC Motors |
| Assembly/box Mounting | F1 Only |
| Code | B |
| Curvepoint | Full Load |
| Design | B, N |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 72% |
| Electrical Type | Permanent Split Capacitor |
| Enclosure Type | Teao |
| Frame | 48Z |
| Frame Length | 5 1/2" |
| Frame Material | Rolled Steel |
| Frame Size | 48Z |
| Frame Suffix | Z |
| Frequency | 60 Hz |
| Full Load Amps | 5.2/2.6A |
| Height | 8 3/4" |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Ip Code | 43 |
| Kva Code | B |
| Kw | 0.37 kW |
| Length | 13 3/4" |
| Load | 0 |
| Material | Rolled Steel |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Rigid Base, Extended Thru Bolt |
| Nameplate Rpm | 1625 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.37 kW |
| Overall Length | 10.89" |
| Packaging | F |
| Phase | 1 |
| Power | 0.37 kW |
| Power Factor | 98 |
| Product Datasheet | leeson-a099901-00.pdf |
| Resistance Main | 0 ohms |
| Rotation Type | Selective CCW |
| Rpm | 1625 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 6/25" |
| Shaft Type | Single Special Extension |
| Starting Method | Across The Line |
| Synchronous Rpm | 1800 RPM |
| Thermal Protection | Automatic |
| Torque Rating | 25.86 lbs.-ft. |
| Torquepct | 100 |
| Type | PN |
| Variable Torque Speed Range | 10 |
| Voltage | 115/230V AC |
| Voltage Rating | 115/230V AC |
| Width | 5.78" |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
Product Details:
- Supersedes Leeson - M099901.00 / A4P17NB60A
- Eff 100%: 72
- Eff 75%: 70
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 92005-6
- Winding: PE484278
- GROUP: 3
- Paint: GRAY (POWDER)
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frame | Phase | Nameplate Rpm | Motor Shaft Design | Motor Mounting Type | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KHC39QN9575T | 115/208-230V AC | 1/4 hp | 48 | 1 | 1725 RPM | Flat | Cradle Base | Auto | €273.49 | |
 |
5KH49MN6057S | 115V AC | 1/4 hp | 56 | 1 | 1140 RPM | Keyed | Cradle Base | Auto | €508.80 | |
 |
5KH33JNA500S | 115V AC | 1/3 hp | 48Z | 1 | 1725 RPM | Flat | Cradle Base | Automatic | €266.17 | |
 |
5KH42JN0328S | 115/208-230V AC | 1/2 hp | 56 | 1 | 1725 RPM | Keyed | Cradle Base | Auto | €457.32 | |
 |
5KCP36NNB059S | 115/230V AC | 1/2 hp | 48Z | 1 | 1075 RPM | Flat | Cradle Base | Auto | €280.72 | |
 |
5KCP49UN9837S | 208-230V AC | 1/2 hp | 56Y | 1 | 850 RPM | Keyed | Face | Automatic | €433.09 | |
 |
5KCR49SN0493S | 115/208-230V AC | 1 hp | 56 | 1 | 1725 RPM | Keyed | Cradle Base | Automatic | €543.50 |
