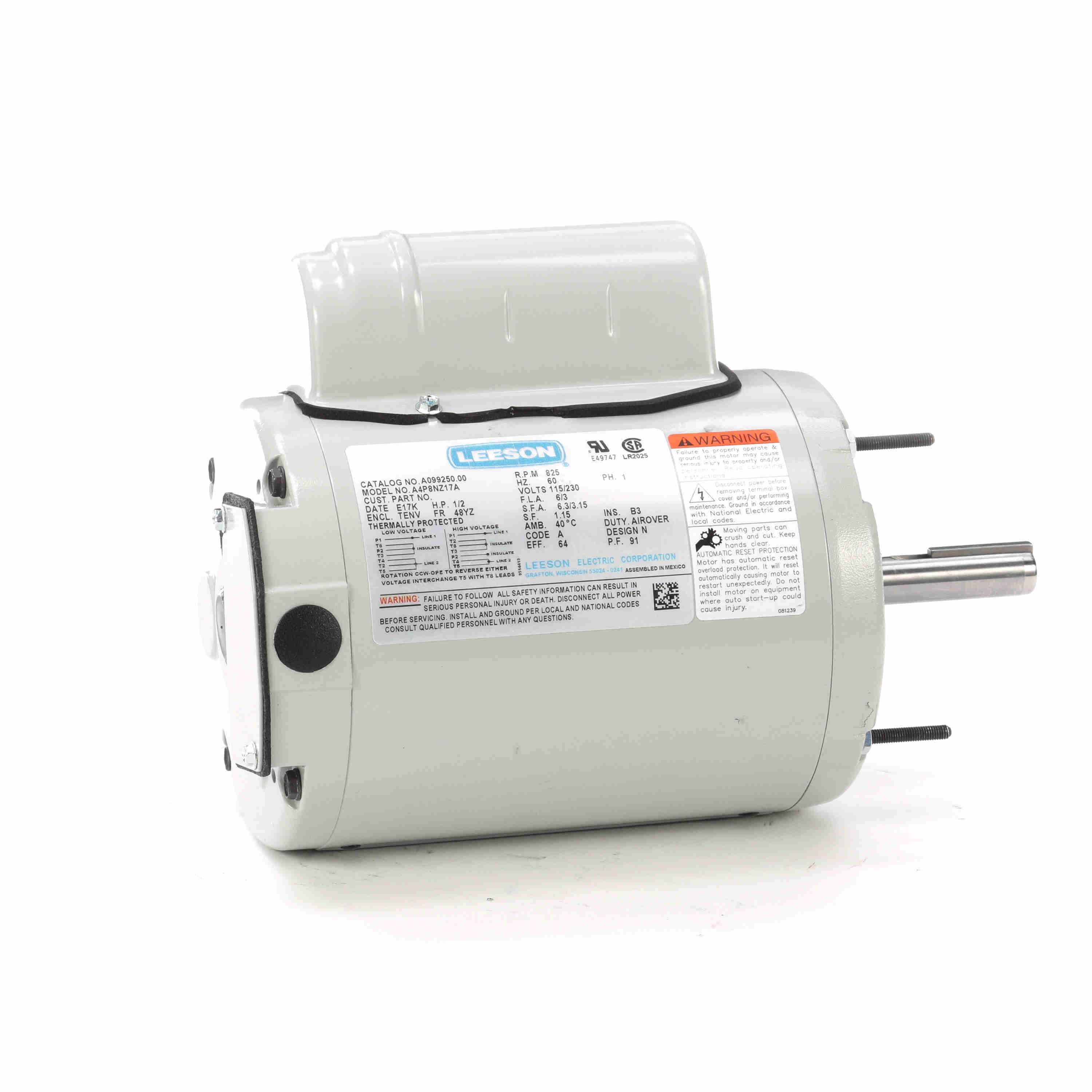

LEESON A099250.00 A4P8NZ17A Fan and Blower Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 900 RPM
Get it by Tuesday, May 19
5.00% off
€738.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 3/6A |
| Application Type | Fan And Blower Motors, General Purpose HVAC Motors |
| Assembly/box Mounting | F1 Only |
| Code | A |
| Conduit Box Position | F1 |
| Curvepoint | Full Load |
| Design Code | No |
| Diameter | 5.62" |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 64% |
| Electrical Type | Permanent Split Capacitor |
| Enclosure Type | Teao |
| Frame | 48YZ |
| Frame Length | 6" |
| Frame Material | Rolled Steel |
| Frame Size | 48YZ |
| Frame Suffix | YZ |
| Frequency | 60 Hz |
| Full Load Amps | 6/3A |
| Height | 9 3/25" |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Ip Code | 43 |
| Kva Code | A |
| Kw | 0.37 kW |
| Length | 10.81" |
| Load | 0.5 |
| Material | Rolled Steel |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Round, Extended Thru Bolt |
| Nameplate Rpm | 825 RPM |
| Nema Design | A, N |
| No. Of Poles | 8 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.37 kW |
| Overall Length | 10 4/5" |
| Packaging | F |
| Phase | 1 |
| Power | 0.37 kW |
| Power Factor | 91 |
| Product Datasheet | leeson-a099250-00.pdf |
| Resistance Main | 0 ohms |
| Rotation Type | Selective CCW |
| Rpm | 825 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.62" |
| Shaft Type | Single Special Extension |
| Starting Method | Across The Line |
| Synchronous Rpm | 900 RPM |
| Thermal Protection | Automatic |
| Torque Rating | 49.4 lbs.-ft. |
| Torquepct | 100 |
| Type | PN |
| Variable Torque Speed Range | 10 |
| Voltage | 115/230V AC |
| Voltage Rating | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 23.16 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
Product Details:
- Supersedes Leeson - M099250.00
- Eff 100%: 64
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 92005-6
- Winding: PE488252
- GROUP: 3
- Paint: GRAY - LIGHT
- S. F Amps: 6.3 / 3.15
Documentation:
Product Variants
| Product | Model | Hp | Full Load Amps | Motor Type | Service Factor | Voltage | Nameplate Rpm | Frame | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048A17O124 | 1/4 hp | 1.8A | Permanent Split Capacitor | 1 | 230V AC | 1625 RPM | 48Y | Selective CCW | €299.62 | |
 |
048S17D997 | 1/3 hp | 6.6A | Split Phase | 1 | 115V AC | - | 48 | Selective Counter Clockwise | €247.56 | |
 |
A009644.00 | 1 hp | 5.2A | PN | 1.1 | - | - | 56CZ | Fixed Counter Clockwise | €787.64 | |
 |
M900195.00 | 1/4 hp | 5A | Split Phase | 1.35 | 115V | 1800 RPM | 48Z | Selective Counter Clockwise | €250.90 | |
 |
191868.00 | - | - | - | - | - | - | - | - | €678.57 | |
 |
M090602.00 | - | - | - | - | - | - | - | - | €831.09 | |
 |
048S17D7209 | - | - | - | - | - | - | - | - | €364.23 |
