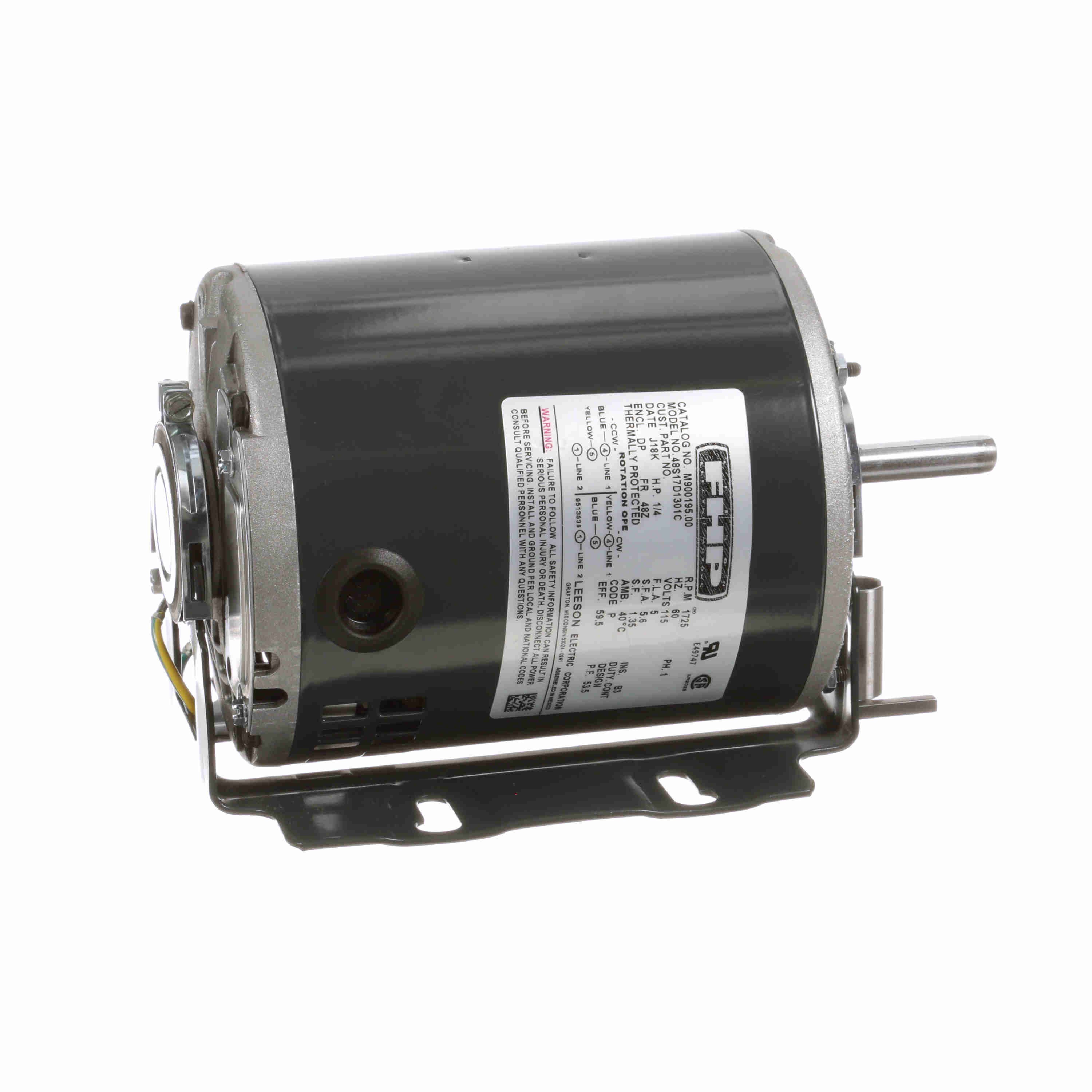

LEESON M900195.00 48S17D1301C Fan and Blower Motor, 0.25 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
Get it by Tuesday, Jul 7
€250.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 13.2A |
| Assembly/box Mounting | F1 Only |
| Bearing Size | Not Available |
| Code | P |
| Curvepoint | Locked Rotor |
| Design Code | No Design Code |
| Drive End Bearing Size | 203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 60% |
| Efficiency @ 100% | 59.5% |
| Electrical Type | Split Phase |
| Enclosure Type | ODP |
| Frame | 48Z |
| Frame Length | 5 3/4" |
| Frame Material | Rolled Steel |
| Frame Size | 48Z |
| Frame Suffix | Z |
| Frequency | 60 Hz |
| Full Load Amps | 5A |
| Hazardous Location | Not Available |
| Height | 6.62" |
| Hp | 1/4 hp |
| Insulation Class | Class B |
| Ip Code | IP22 |
| Kw | 0.19 kW |
| Length | 13 1/4" |
| Load | 1.15 |
| Lubrication | Standard |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Type | Resilient Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Split Phase |
| Mounting Type | Resilient Base |
| Nameplate Speed | 1800 RPM |
| Nema Design | P |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 203 |
| Opp. Drive End Bearing Type | Ball |
| Outline | A-SS403617LE-575 |
| Output Kw | 0.19 kW |
| Overall Length | 9 18/25" |
| Packaging | B |
| Paint | Standard |
| Phase | 1 |
| Power | 0.187 kW |
| Power Factor | 53.5 |
| Product Datasheet | leeson-m900195-00.pdf |
| Resistance Main | 0 ohms |
| Rotation Type | Selective CCW |
| Service Factor | 1.35 |
| Service Factor Amps | 5.6A |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 22/25" |
| Shaft Type | Single Special Extension |
| Speed | 1725 RPM , Not Available |
| Starting Method | Across The Line |
| Synchronous Speed | 1800 RPM |
| Thermal Protection | Automatic |
| Torque | 17.3 lbs.-ft. |
| Type | SD |
| Voltage | 115V |
| Winding | SE48459 |
Shipping Info:
| Ship weight (kg) | 5.85 |
| Ship height (cm) | 16.81 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 17.63 |
| Country of Origin | MX |
Product Details:
- S. F Amps: 5.6
- Eff 100%: 59.5
- Eff 75%: 56.7
- Bearing OPE: 203
- CC Number: EXEMPT
- Bearing PE: 203
- Nameplate: A-92005
- Winding: SE48459
- GROUP: 1
- Paint: VERIFY
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Motor Type | Service Factor | Frame | Motor Shaft Rotation | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048A17O124 | 230V AC | 1/4 hp | 1.8A | Permanent Split Capacitor | 1 | 48Y | Selective CCW | 1/2" | €299.62 | |
 |
048S17D997 | 115V AC | 1/3 hp | 6.6A | Split Phase | 1 | 48 | Selective Counter Clockwise | 1/2" | €247.56 | |
 |
A009644.00 | 230V AC | 1 hp | 5.2A | PN | 1.1 | 56CZ | Fixed Counter Clockwise | 3/4" | €787.64 | |
 |
A099250.00 | 115/230V AC | 1/2 hp | 6/3A | Permanent Split Capacitor | 1.15 | 48YZ | Selective Counter Clockwise | 5/8" | €739.29 | |
 |
191868.00 | - | - | - | - | - | - | - | - | €678.57 | |
 |
M090602.00 | - | - | - | - | - | - | - | - | €831.09 | |
 |
048S17D7209 | 115V AC | 1/3 hp | 5.3/2.9A | Split Phase | 1 | 48 | CW, CCW | 1/2" | €364.23 |
