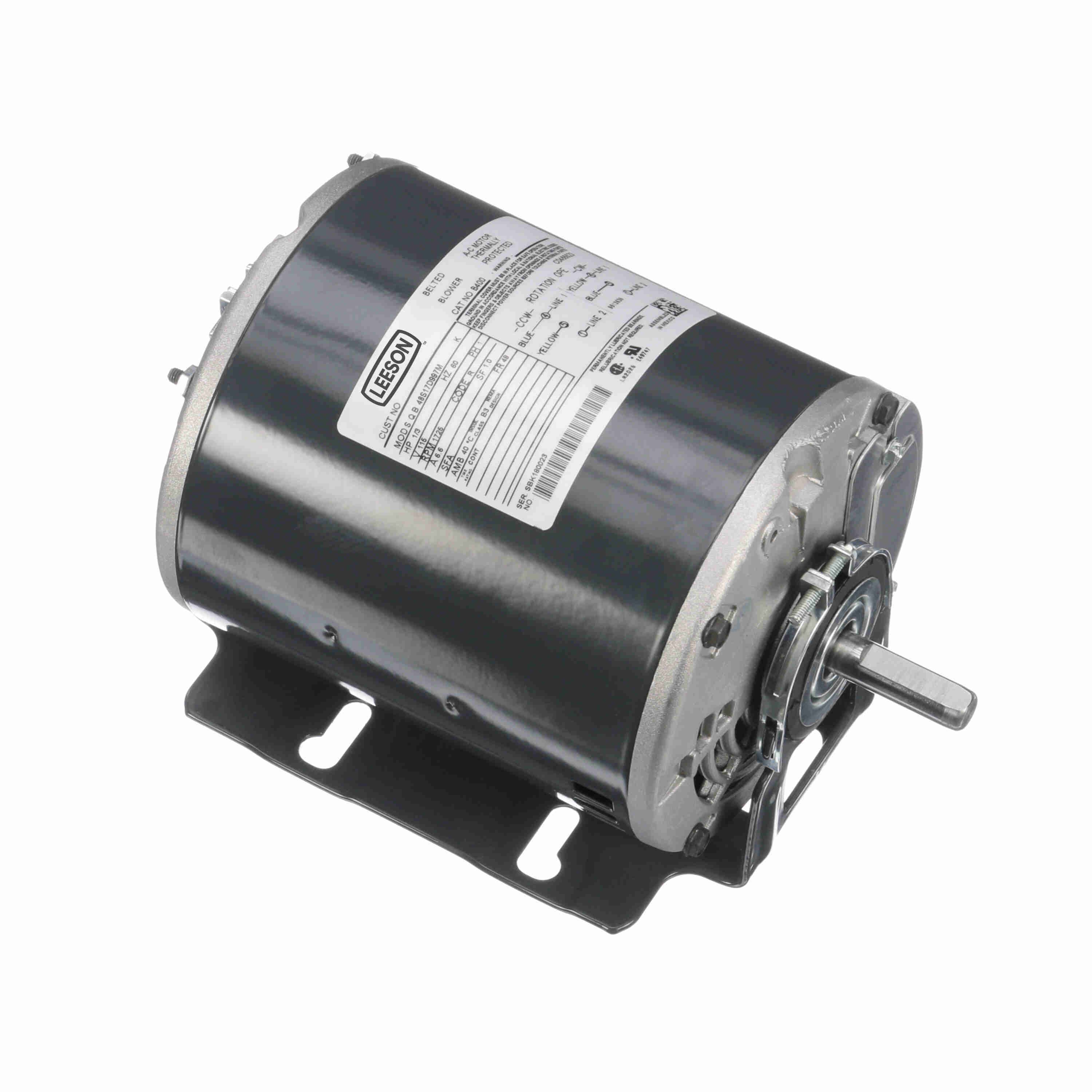

LEESON 048S17D997 48S17D997M / B400 Fan and Blower Motor, 0.33 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
Get it by Monday, May 18
€247.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | N/A % |
| Efficiency | Not Applicable |
| Enclosure Type | Dripproof Air Over |
| Frame | 48 |
| Frequency | 60 Hz |
| Full Load Amps | 6.6A |
| Full Load Efficiency | 61.5% |
| Hp | 1/3 hp |
| Includes | Adapter With Keyway |
| Insulation Class | Class B |
| Length Less Shaft | 7 3/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Thermal Protection | Automatic |
| Motor Type | Split Phase |
| Mounting Type | Resilient Base |
| Nema Design | No Design Code |
| Number Of Speeds | 1 |
| Overall Length | 9.312" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/4" |
| Ring To Ring Center | 7.312" |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1.59" |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 6.3 |
| Ship height (cm) | 16.81 |
| Ship length (cm) | 28.09 |
| Ship width (cm) | 17.15 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: SPLIT PHASE
- KVA Code: R
- Drive End Bearing: BALL
- IP Code: 22
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Hp | Full Load Amps | Motor Type | Service Factor | Voltage | Nameplate Rpm | Frame | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048A17O124 | 1/4 hp | 1.8A | Permanent Split Capacitor | 1 | 230V AC | 1625 RPM | 48Y | Selective CCW | €299.62 | |
 |
A009644.00 | 1 hp | 5.2A | PN | 1.1 | - | - | 56CZ | Fixed Counter Clockwise | €787.64 | |
 |
A099250.00 | 1/2 hp | 6/3A | Permanent Split Capacitor | 1.15 | 115/230V AC | 825 RPM | 48YZ | Selective Counter Clockwise | €777.05 | |
 |
M900195.00 | 1/4 hp | 5A | Split Phase | 1.35 | 115V | 1800 RPM | 48Z | Selective Counter Clockwise | €250.90 | |
 |

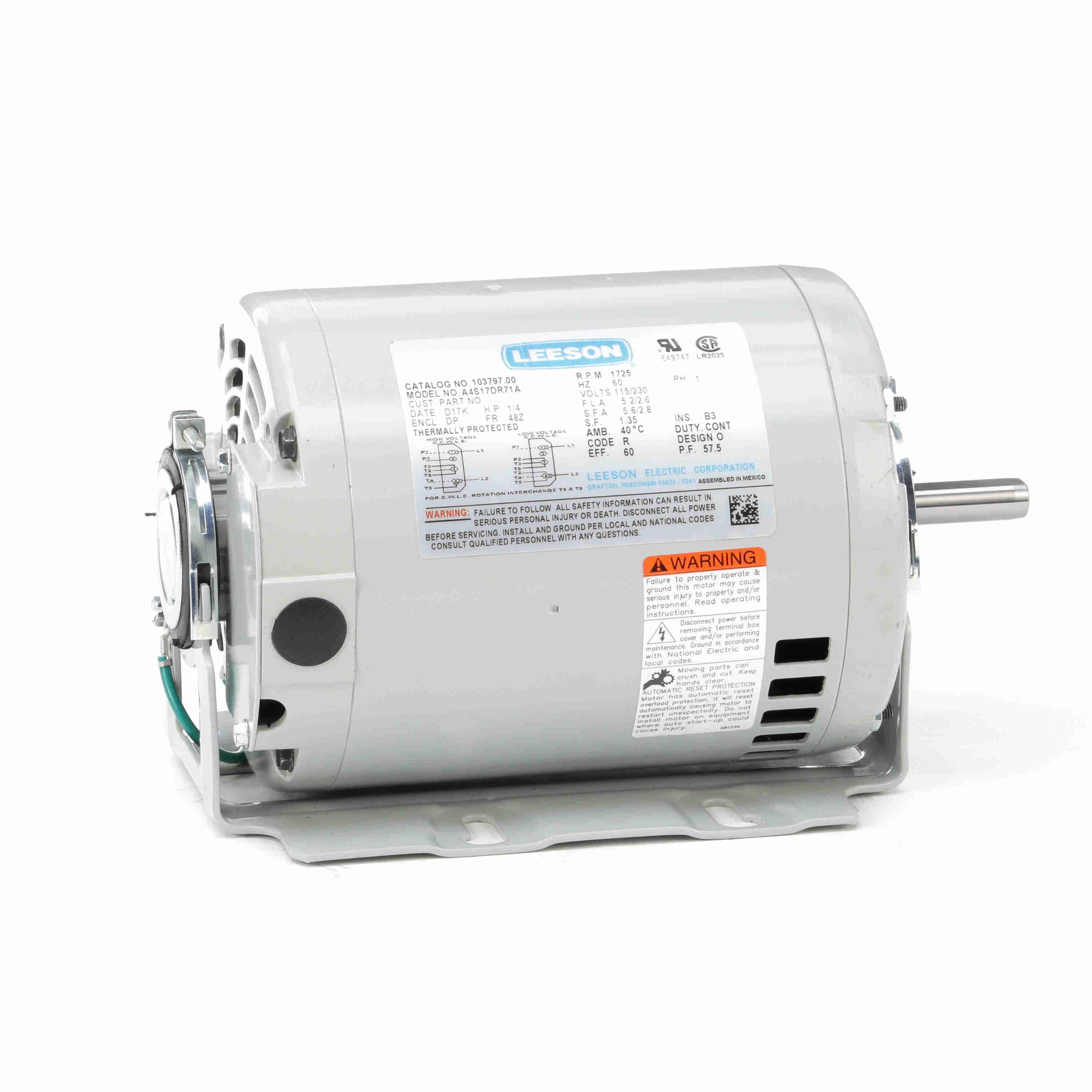

191868.00 | - | - | - | - | - | - | - | - | €678.57 | |
 |

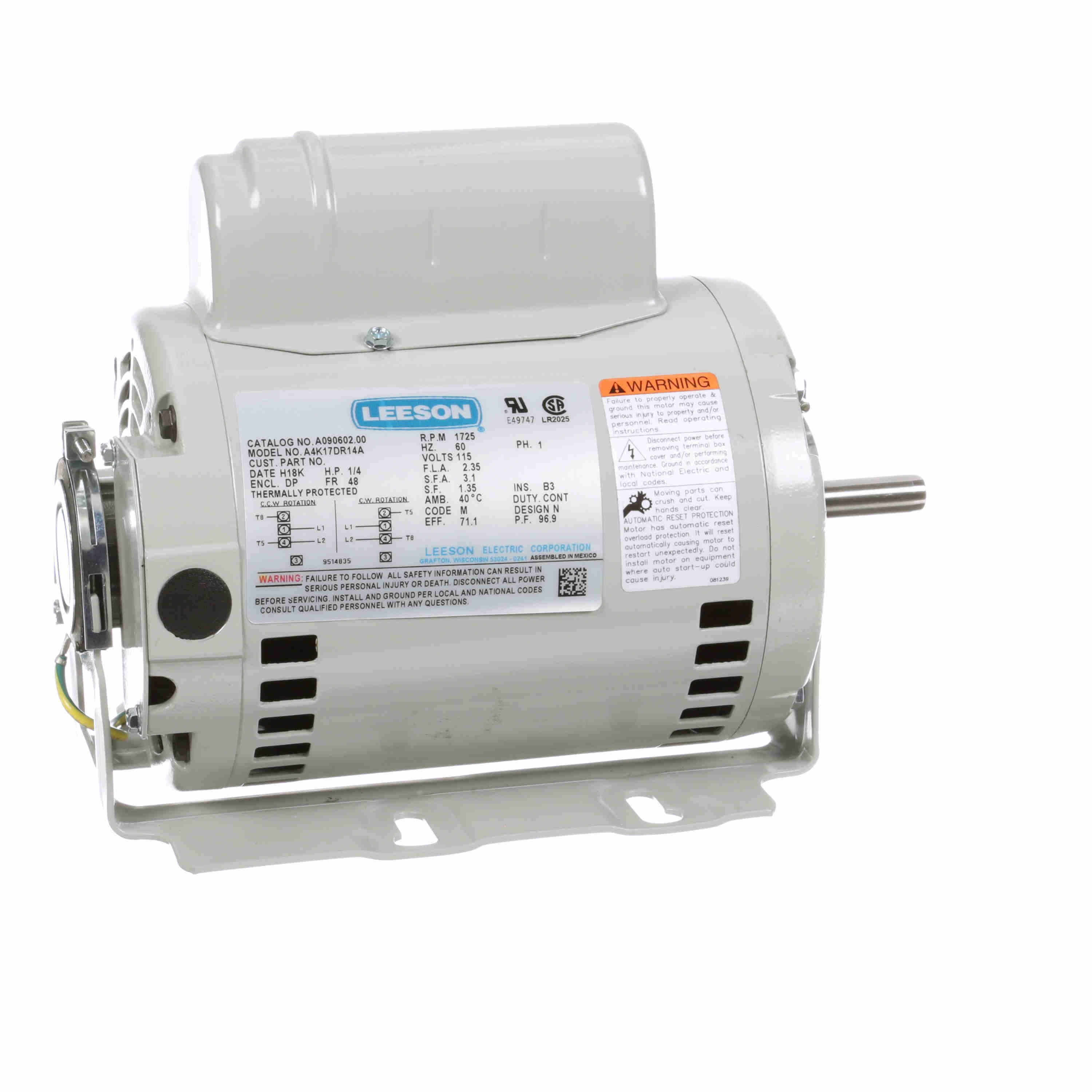

M090602.00 | - | - | - | - | - | - | - | - | €831.09 | |
 |

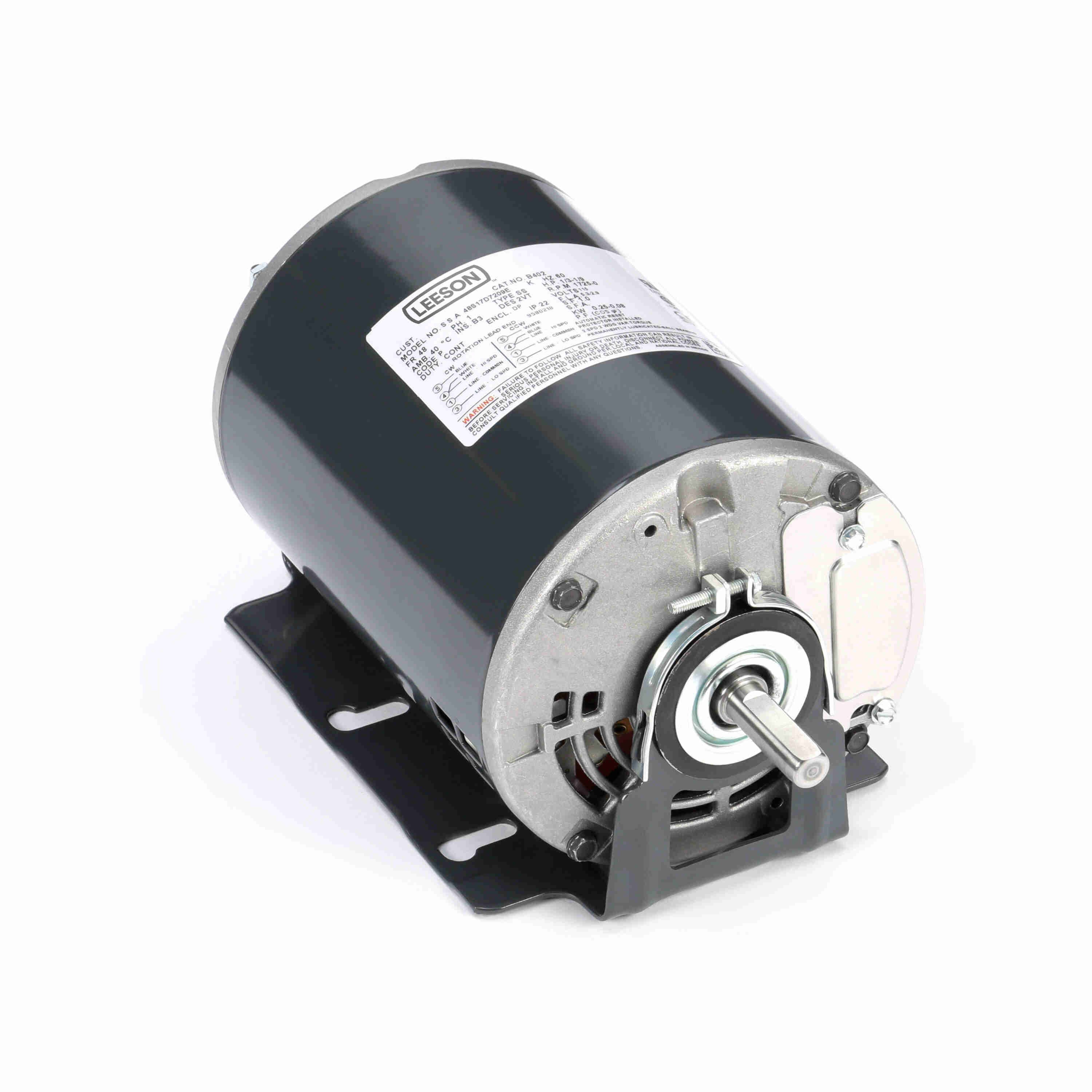

048S17D7209 | - | - | - | - | - | - | - | - | €364.23 |
