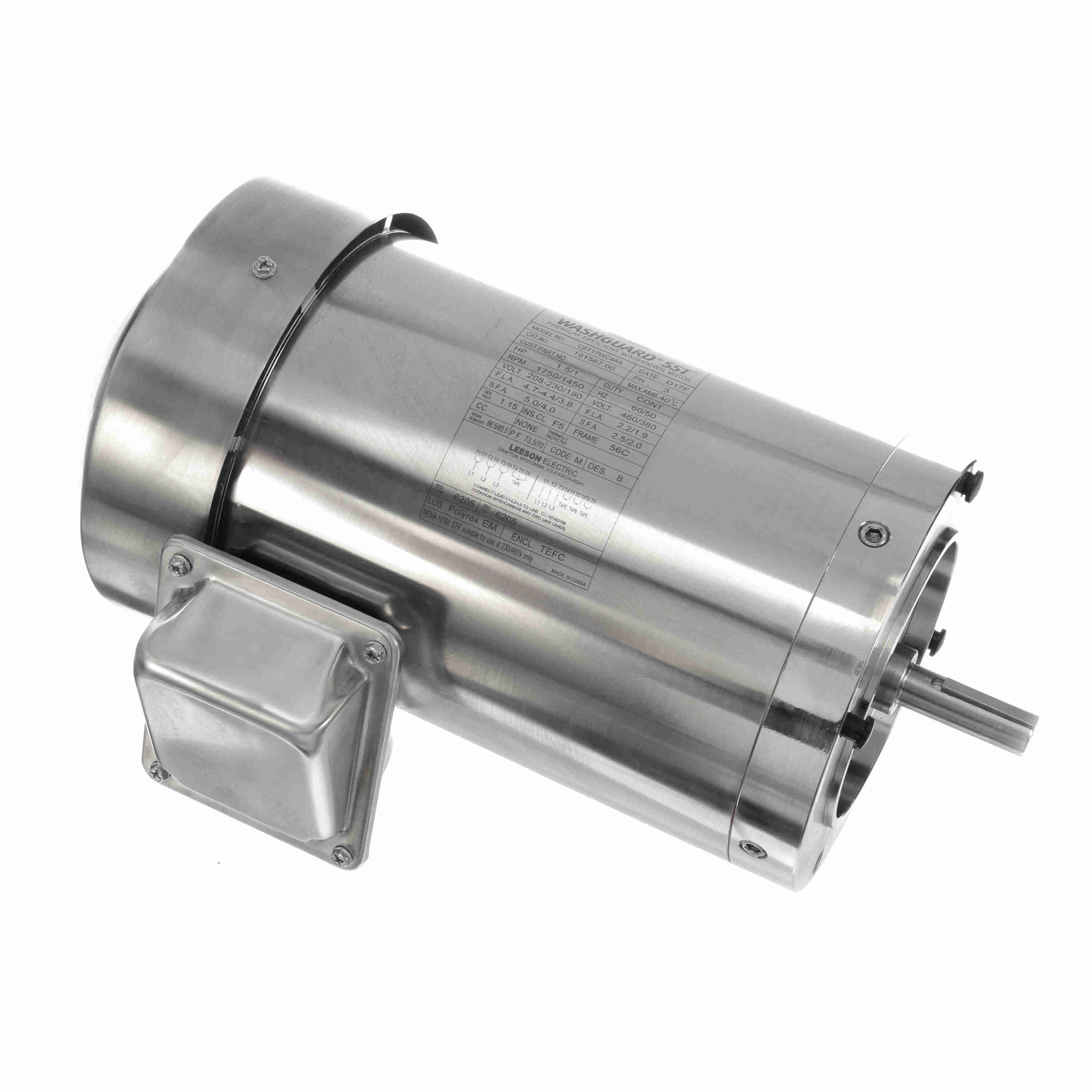

LEESON 191567.00 C6T17WC63A General Purpose Motor, 1.50/1 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM

Item: AJ2TNZModel: 191567.00Cross Ref: 48ZH74 / C6T17WC63A

Check Availability

In Stock

Get it by Thursday, Dec 18

€1,305.60 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Washdown Motor
Ambient Temp.	104°F
Amps	4.4/2.2A
Application	Washdown
Bearing Type	Ball
Body Dia.	6 1/2"
Bolt Circle Dia.	5 7/8"
Cc Number	CC005A
Code	M
Conduit Box Location	Exterior
Conduit Box Position	F1
Design Code	B
Drive End Bearing Size	6205
Drive End Bearing Type	Ball
Duty Cycle	Continuous
Efficiency	86.5%
Electrical Type	Squirrel Cage, Inverter Rated
Enclosure Type	Tefc
Finish	Unfinished
Frame	56C
Frame Length	7.99"
Frame Material	Stainless Steel
Frame Type	56C
Frequency	60 Hz
Frequency	50/60 Hz
Full Load Amps	4.4-4.8/2.2A
Grade	Grade 300
Grease Type	Polyrex EM
Height	9.65"
Hp	1 1/2 hp
Hz	50/60 Hz
Ins. Class	Class F
Insulation Class	Class F
Ip Code	IP55
Kva Code	M
Kw	1.1 kW
Length	15 4/25"
Length Less Shaft	11 7/8"
Manufacturers Warranty Length	1 yr.
Max. Ambient Temp.	40°C
Max. Rpm	1750 RPM
Motor Application	Washdown
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Frame Material	Stainless Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Face
Motor Orientation	Horizontal
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	Counter Clockwise Shaft End
Motor Shaft Rotation	CWSE
Motor Type	Three Phase
Mounting Type	Round
Nema Design	B
No. Of Poles	4
No. Of Speeds	1
Nominal Efficiency	86.5%
Opp. Drive End Bearing Size	6205
Opp. Drive End Bearing Type	Ball
Overall Length	13 3/4"
Packaging	Individual
Phase	3
Power	1.12 kW
Power Factor	73.5
Product Type	Washdown Motor
Rotation	Reversible
Rpm	1700-1800 RPM
Service Factor	1.15
Shaft Dia.	5/8"
Shaft Length	1 22/25"
Shaft Material	Stainless Steel
Shaft Type	NEMA 56
Standards	Bissc Approved, Ce, Csa Certified, Ul Recognized
Starting Method	Line Or Inverter
Thermal Protection	No Protection
Type	TF
Usable @ 200v	No
Usable @ 208v	Yes
Voltage	208-230/460V
Weight	67 lbs.
Width	11"

Shipping Info:

Ship weight (kg)	30.15
Ship height (cm)	24.51
Ship length (cm)	38.51
Ship width (cm)	27.94
Country of Origin	CN

Product Details:

Supersedes Leeson - 191219.00
Bearing OPE: 6205
CC Number: CC005A
Bearing PE: 6205
Winding: QT63421
GROUP: 3
S. F Amps: 5.5-5 / 2.5
Eff 100%: 86.5 / 85.5

Product Variants

Model	Voltage	Hp	Frame	Full Load Amps	Nameplate Rpm	Finish	Ambient Temp.	Motor Type	Price
191419.00	208-230/460V AC	1/2 hp	56C	26.4/13.2A	1140 RPM	Unfinished	104°F	Three Phase	€1,779.66
191421.00	208-230/460V	1 hp	56C	3.8/1.9A	1150 RPM	Unfinished	104°F	Three Phase	€2,642.30
191507.00	208-230/460V	1/2 hp	56C	1.9-2/1A	1800/1500 RPM	Paint Free	40°C	Squirrel Cage Inverter Rated	€3,031.58
191508.00	208-230/460V	3/4 hp	56C	2.4-2.3/1.15A	1800/1500 RPM	Paint Free	40°C	Squirrel Cage Induction Run	€3,278.52
191542.00	208-230/460V	3 hp	145TC	7.2-8/3.6A	3470 RPM	Unfinished	104°F	Three Phase	€3,137.76
191565.00	208-230/460V	1 hp	143TC	3-3.2/1.5A	1750 RPM	Unfinished	104°F	Three Phase	€1,239.01
191568.00	208-230/460V	1 1/2 hp	145TC	4.4-4.8/2.2A	1750 RPM	Unfinished	104°F	Three Phase	€2,256.07
