Precision Ball Screws

Filter

PBC LINEAR -

Lead Screw Assemblies With Rectangle Nuts

Style	Model	Thread Direction	Lead Length	Nut Drag Torque	Nut Dynamic Load Capacity	Percent Efficiency	Nut Type	Assembly Type	Screw Material	Price

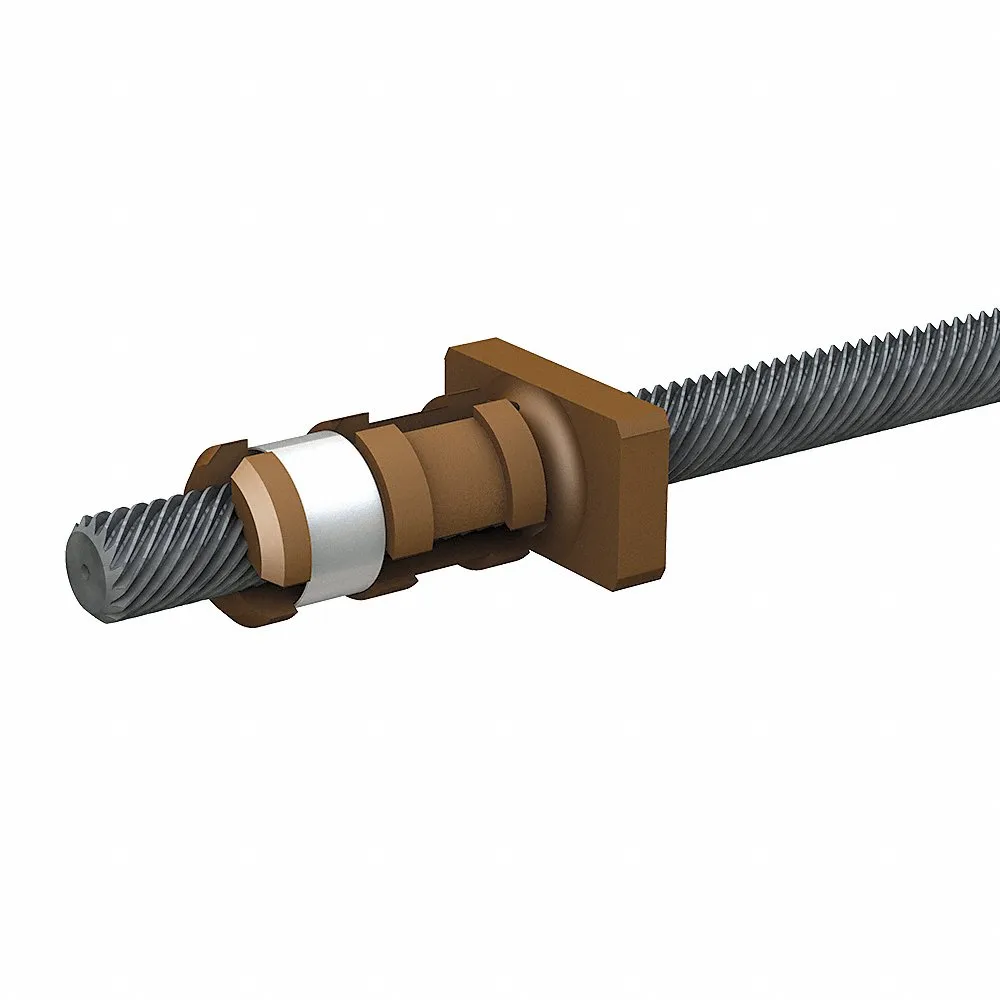

A	LSR0604T-0254-VCF-NNN-NNN-N	Right	4 mm	0.0134 N-m to 0.0164 N-m	302N	0.71	Anti Backlash	Lead Screw, Nut Assembly	-	€155.07
B	LSR0604T-0254-VS-NNN-NNN-N	Right Hand	4 mm	Free Wheeling	334N	71%	Standard	Lead Screw And Nut Assembly	Stainless Steel	€132.69
A	LSR0601T-0254-VCF-NNN-NNN-N	Right Hand	1 mm	0.0134 N-m to 0.0164 N-m	302N	39%	Anti Backlash	Lead Screw And Nut Assembly	Stainless Steel	€155.07

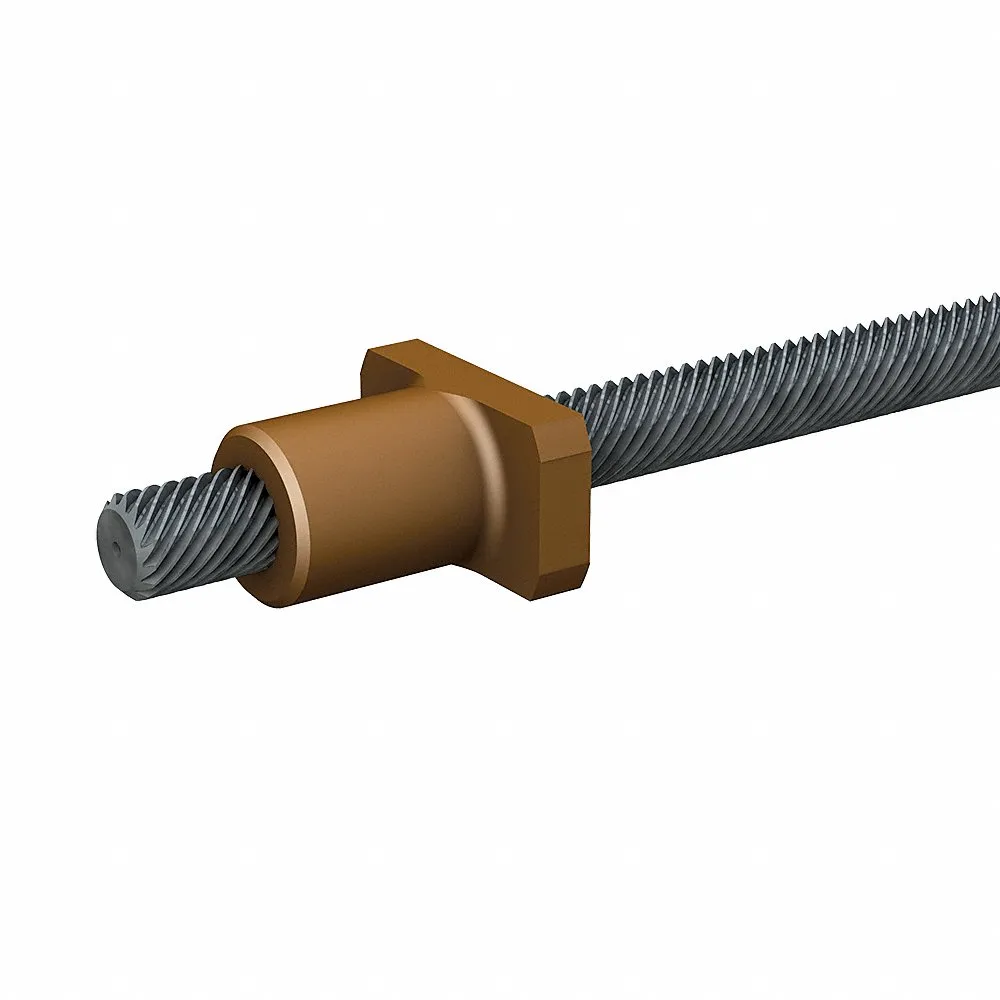

B	LSR0601T-0254-VS-NNN-NNN-N	Right Hand	1 mm	Free Wheeling	334N	39%	Standard	Lead Screw And Nut Assembly	Stainless Steel	€132.69

PBC LINEAR -

Motorized Lead Screw Assemblies With Triangle Nuts

Style	Model	Lead Length	Percent Efficiency	Screw Material	Nut Material	Thread Direction	Coating Material	Screw Material Grade	Nut Drag Torque	Price

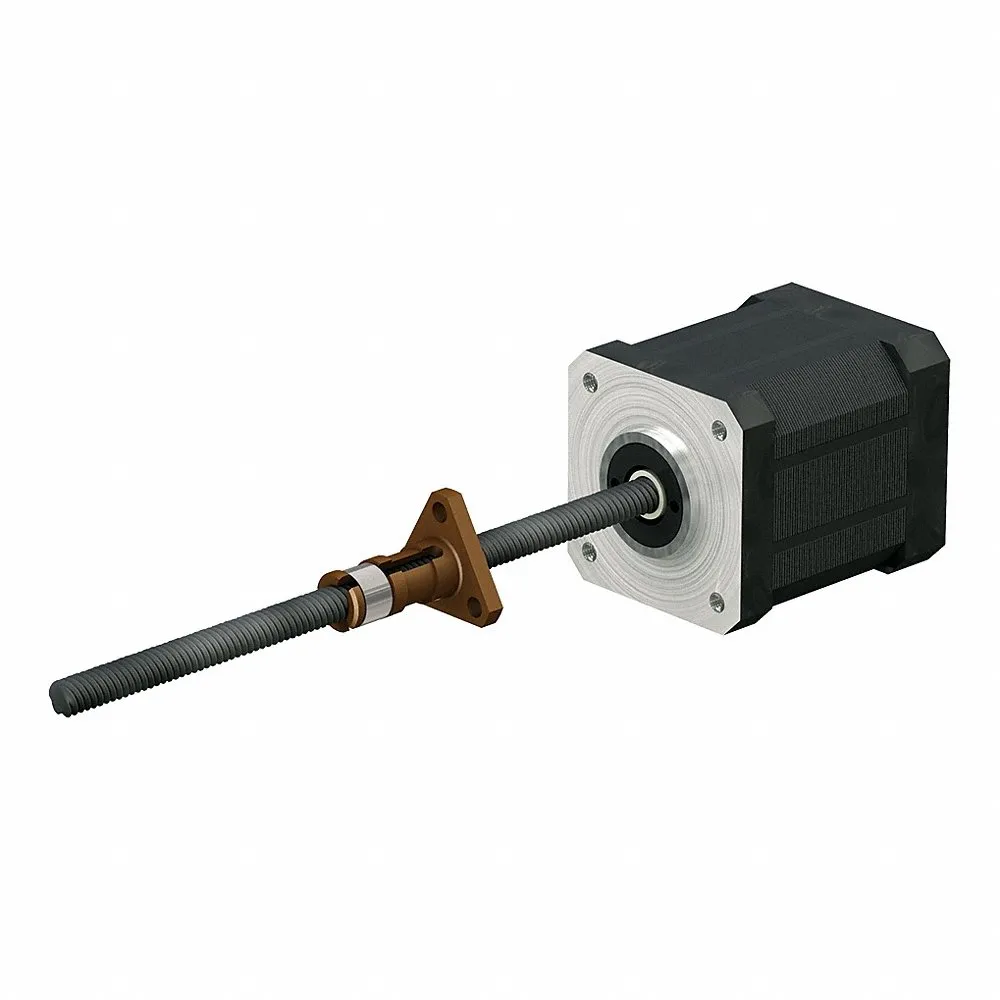

A	LSR1001T-0300-TCF-140-NNN-N	1 mm	28%	Stainless Steel	Stainless Steel	Right	PTFE	Grade 300	0.0197 N-m to 0.024 N-m	€499.07
A	LSR1005T-0400-TCF-140-NNN-N	5 mm	66%	Stainless Steel	Stainless Steel	Right	PTFE	Grade 300	0.0197 N-m to 0.024 N-m	€543.25

PBC LINEAR -

Motorized Lead Screw Assemblies With Round Nuts

Style	Model	Lead Length	Nut Drag Torque	Nut Flange Dia.	Nut Flange Thickness	Nut Length	Nut Dia.	Nut Dynamic Load Capacity	Nut Mounting Hole Dia.	Price

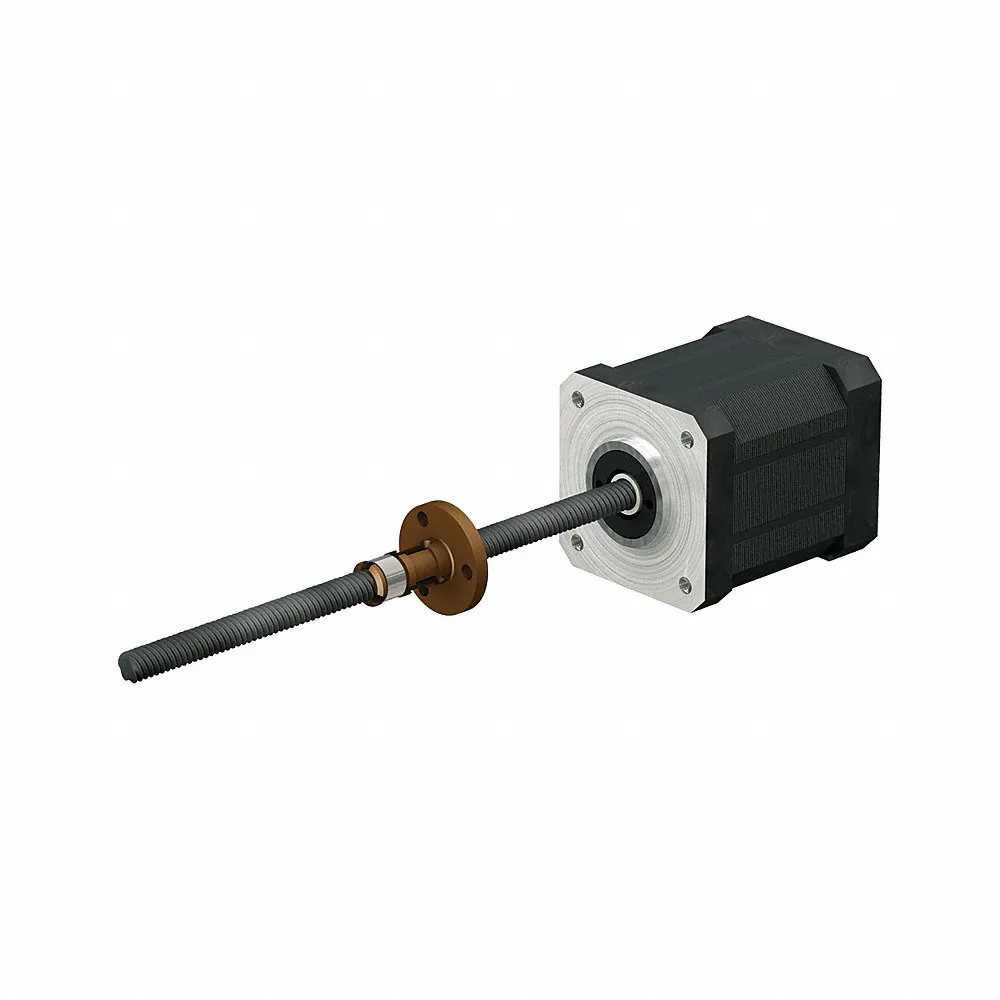

A	LSR1201T-0300-RCF-171-NNN-N	1 mm	0.0211 N-m to 0.0264 N-m	44.5 mm	6.4 mm	44.5 mm	16.9 mm	703N	5.6 mm	€456.76

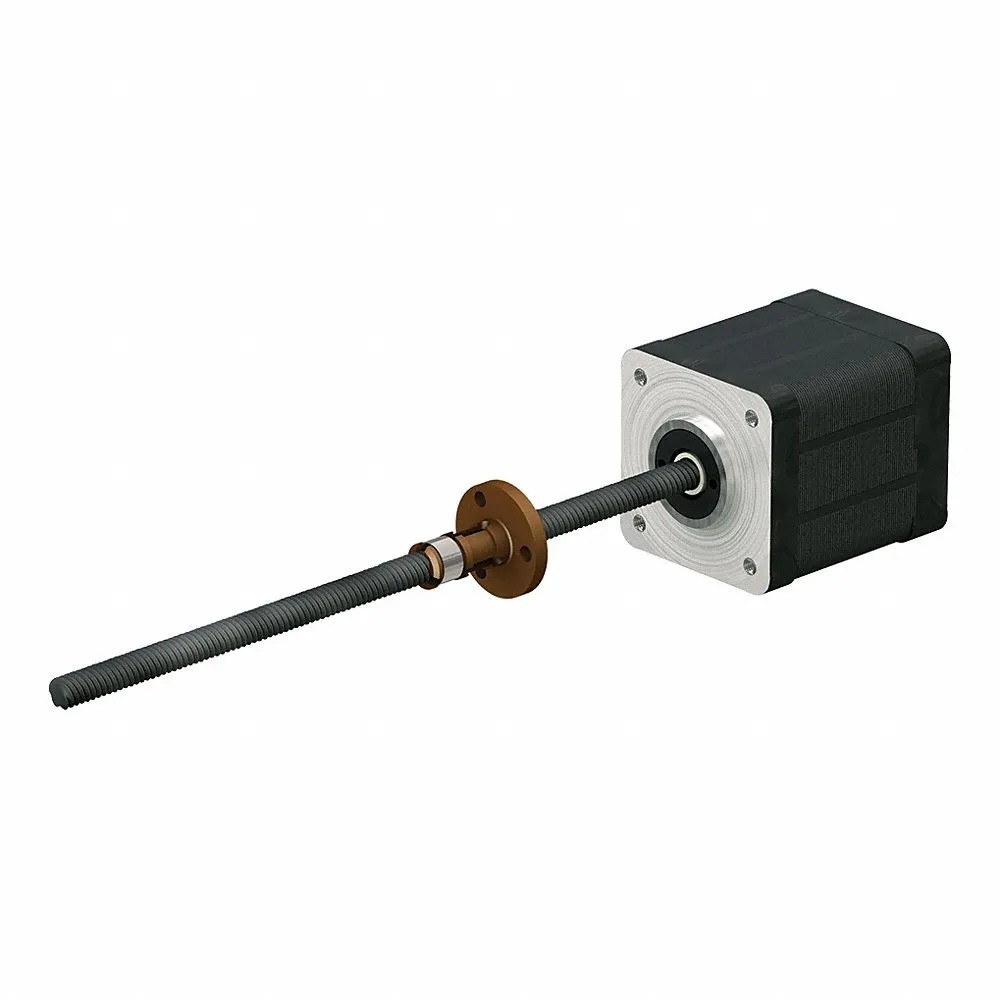

B	LSR0601T-0100-RCF-080-NNN-N	1 mm	0.0134 N-m to 0.0164 N-m	25.4 mm	4.8 mm	22.2 mm	10.2 mm	302N	3.6 mm	€489.43

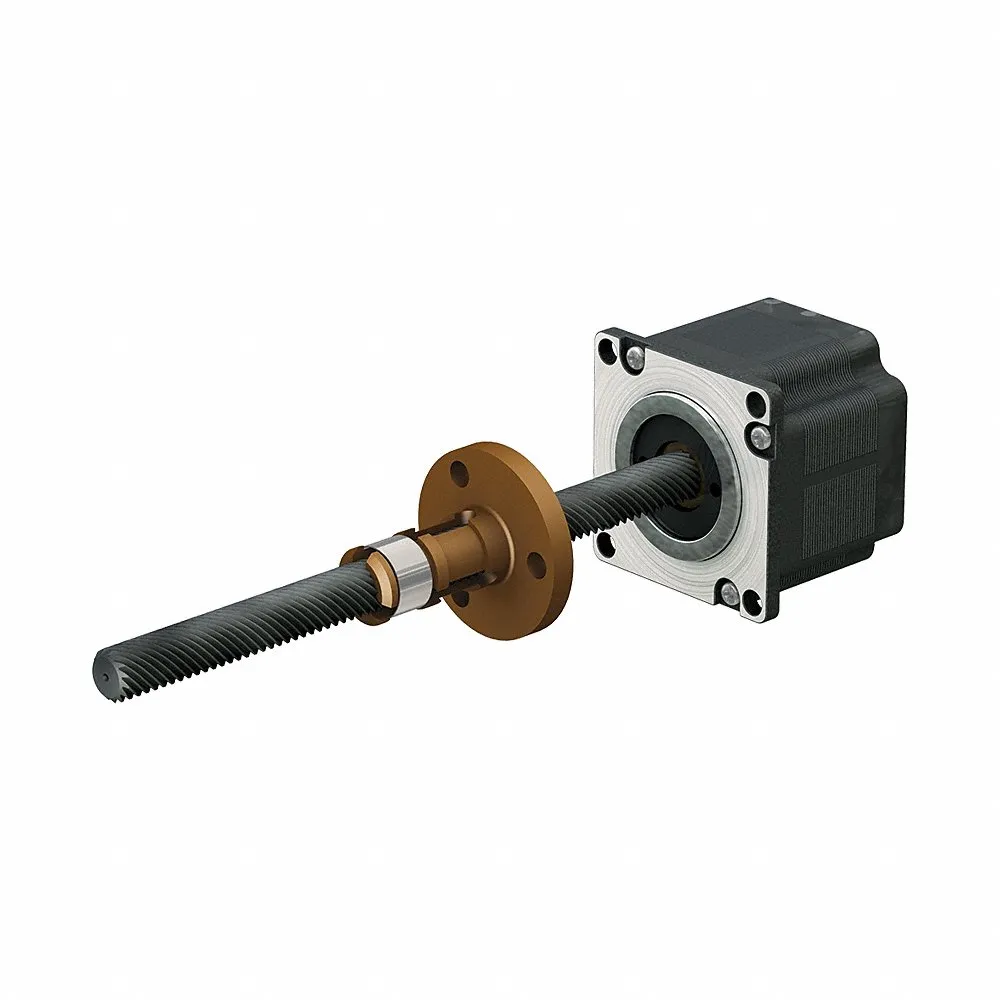

C	LSR1601T-0300-RCF-231-NNN-N	1 mm	0.025 N-m to 0.031 N-m	54 mm	6.4 mm	49.5 mm	20.3 mm	1040N	5.6 mm	€524.27

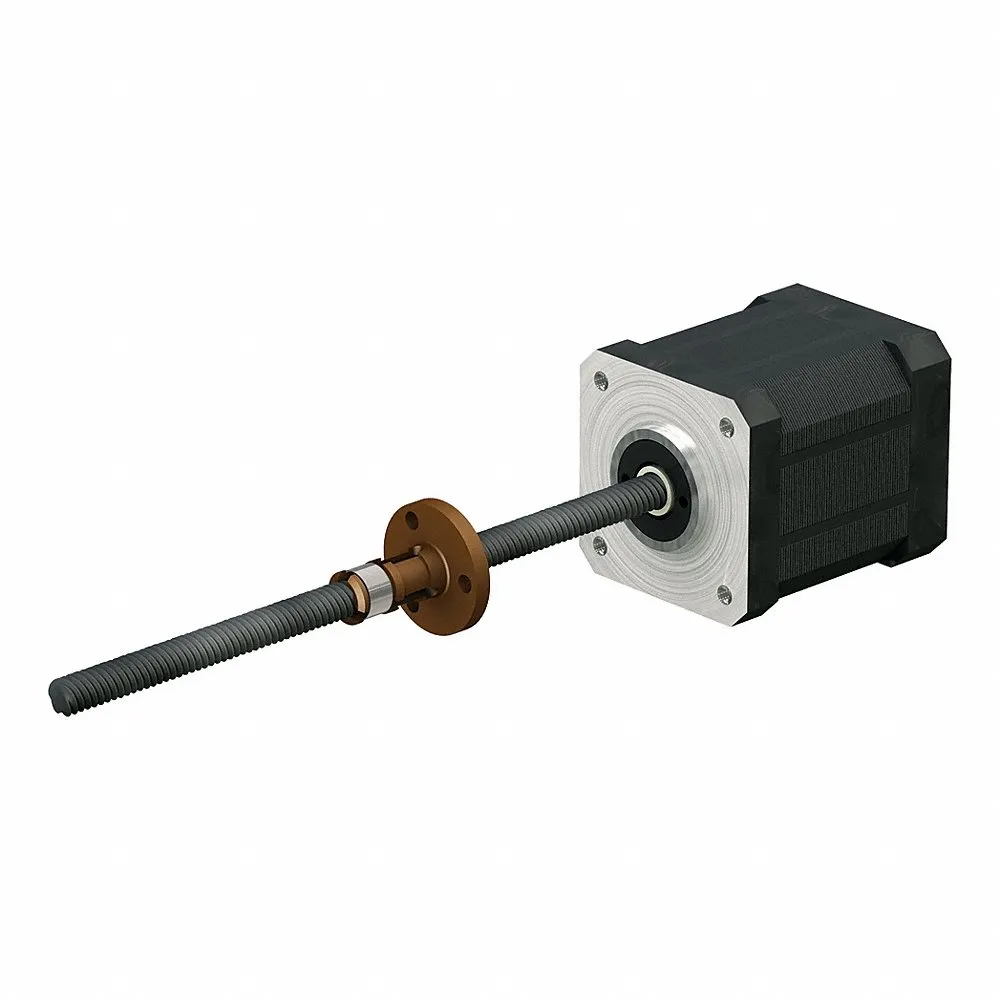

D	LSR1005T-0200-RCF-140-NNN-N	5 mm	0.0197 N-m to 0.024 N-m	38.1 mm	4.8 mm	38.1 mm	15.9 mm	400N	5.1 mm	€455.20

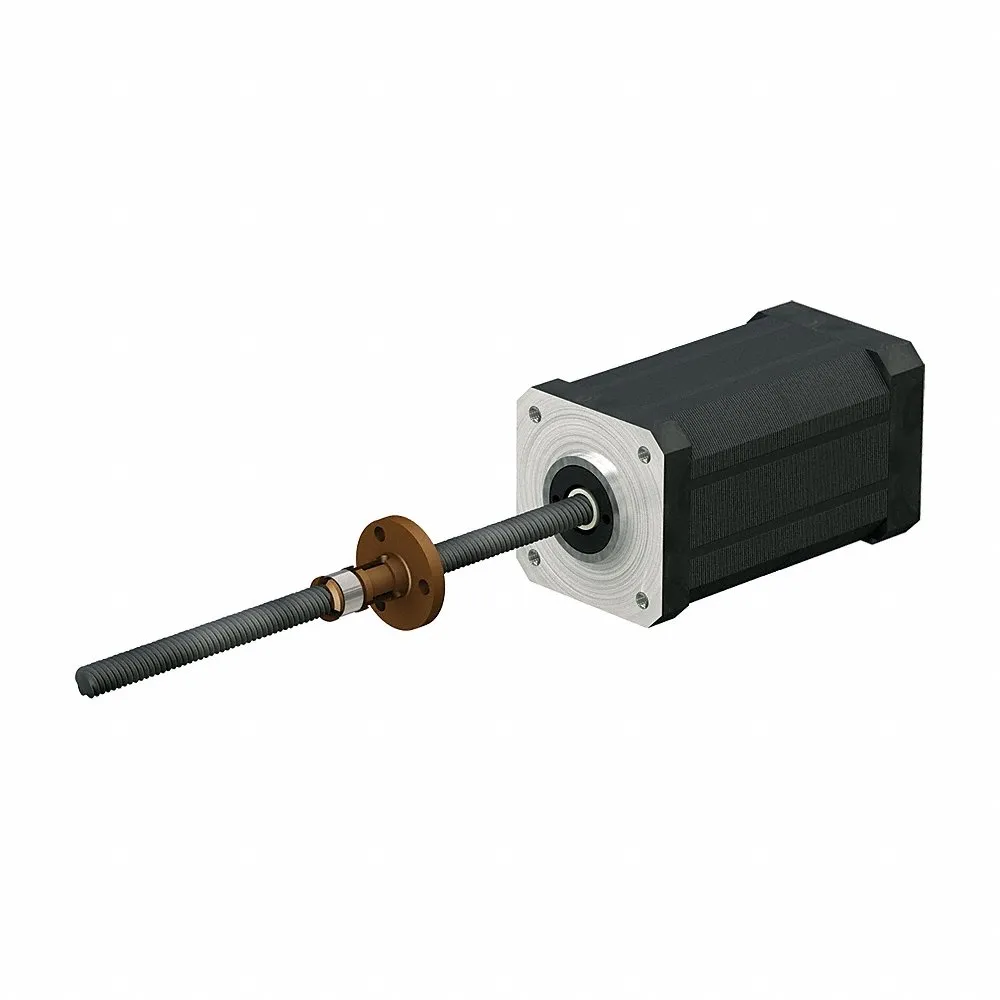

E	LSR1205T-0500-RCF-172-NNN-N	5 mm	0.0211 N-m to 0.0264 N-m	44.5 mm	6.4 mm	44.5 mm	16.9 mm	703N	5.6 mm	€601.75
A	LSR1205T-0400-RCF-171-NNN-N	5 mm	0.0211 N-m to 0.0264 N-m	44.5 mm	6.4 mm	44.5 mm	16.9 mm	703N	5.6 mm	€503.08

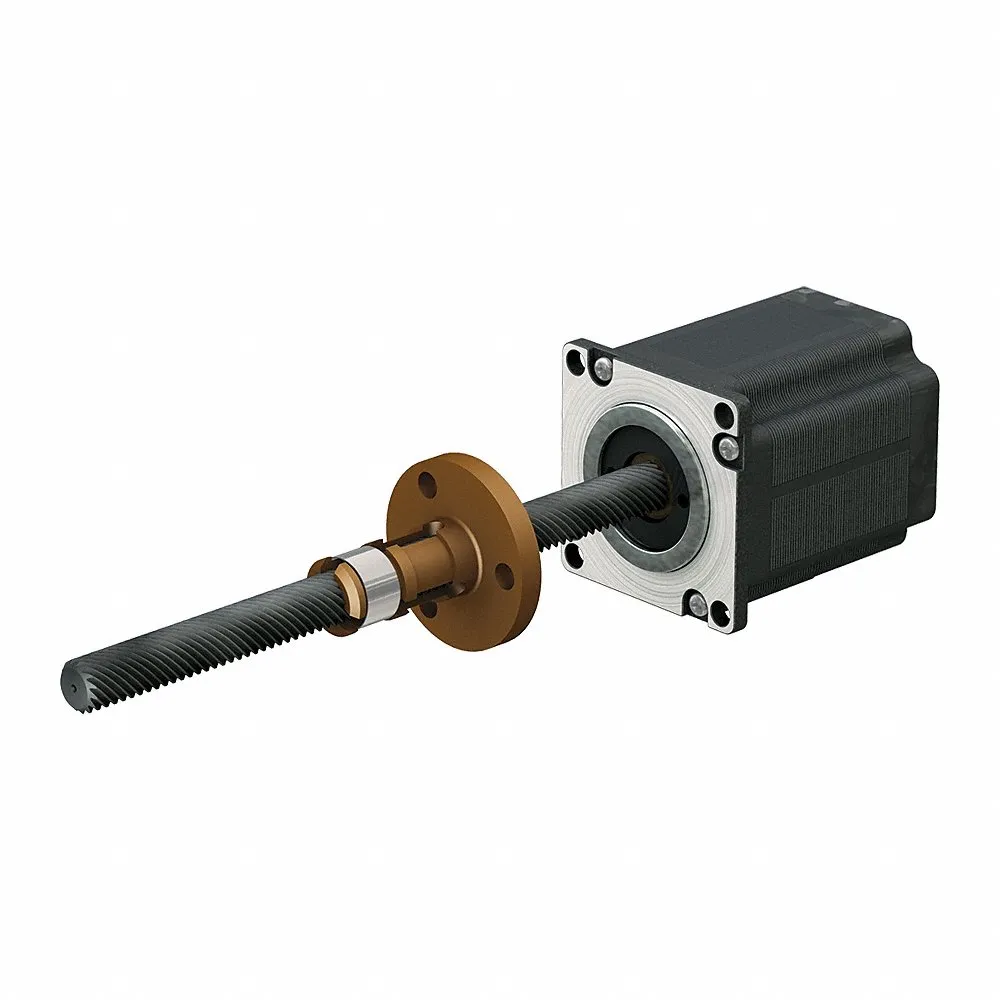

F	LSR1605T-0400-RCF-232-NNN-N	5 mm	0.025 N-m to 0.031 N-m	54 mm	6.4 mm	49.5 mm	20.3 mm	1040N	5.6 mm	€592.11
F	LSR1605T-0500-RCF-231-NNN-N	5 mm	0.025 N-m to 0.031 N-m	54 mm	6.4 mm	49.5 mm	20.3 mm	1040N	5.6 mm	€612.32

PBC LINEAR -

Lead Screw And Nut Assemblies, Without Motors

Style	Model	Thread Direction	Lead Length	Nut Drag Torque	Nut Flange Thickness	Nut Length	Nut Dynamic Load Capacity	Nut Mounting Hole Dia.	Nut Bolt Circle Dia.	Price
A	LSR1005T-0254-TCF-NNN-NNN-N	Right	5 mm	0.0197 N-m to 0.024 N-m	4.8 mm	38.1 mm	400N	5.1 mm	28.6 mm	€161.43

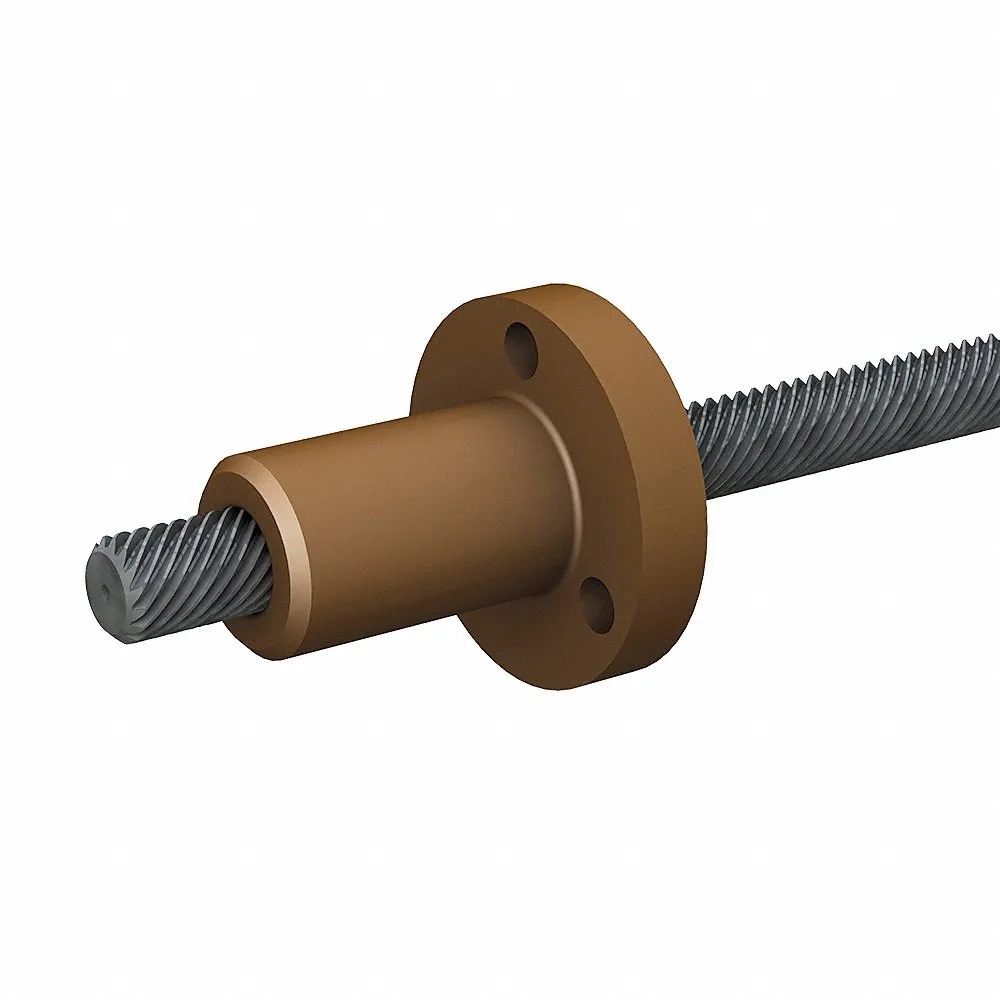

B	LSR1605T-0508-RS-NNN-NNN-N	Right	5 mm	Free Wheeling	6.4 mm	38.1 mm	1160N	5.6 mm	44.5 mm	€249.04
A	LSR1205T-0508-TCF-NNN-NNN-N	Right	5 mm	0.0211 N-m to 0.0264 N-m	6.4 mm	44.5 mm	703N	5.6 mm	35.7 mm	€255.22
C	LSR1205T-0254-TS-NNN-NNN-N	Right	5 mm	Free Wheeling	6.4 mm	38.1 mm	778N	5.6 mm	35.7 mm	€139.86
C	LSR1001T-0508-TS-NNN-NNN-N	Right Hand	1 mm	Free Wheeling	4.8 mm	25.4 mm	445N	5.1 mm	28.6 mm	€233.67
B	LSR1005T-0508-RS-NNN-NNN-N	Right Hand	5 mm	Free Wheeling	4.8 mm	25.4 mm	445N	5.1 mm	28.6 mm	€233.67
A	LSR1001T-0508-TCF-NNN-NNN-N	Right Hand	1 mm	0.0197 N-m to 0.024 N-m	4.8 mm	38.1 mm	400N	5.1 mm	28.6 mm	€255.22
B	LSR1005T-0254-RS-NNN-NNN-N	Right Hand	5 mm	Free Wheeling	4.8 mm	25.4 mm	445N	5.1 mm	28.6 mm	€139.86
C	LSR1005T-0254-TS-NNN-NNN-N	Right Hand	5 mm	Free Wheeling	4.8 mm	25.4 mm	445N	5.1 mm	28.6 mm	€139.86
C	LSR1201T-0254-TS-NNN-NNN-N	Right Hand	1 mm	Free Wheeling	6.4 mm	38.1 mm	778N	5.6 mm	35.7 mm	€139.86
D	LSR1201T-0254-RCF-NNN-NNN-N	Right Hand	1 mm	0.0211 N-m to 0.0264 N-m	6.4 mm	44.5 mm	703N	5.6 mm	35.7 mm	€161.43
D	LSR1001T-0508-RCF-NNN-NNN-N	Right Hand	1 mm	0.0197 N-m to 0.024 N-m	4.8 mm	38.1 mm	400N	5.1 mm	28.6 mm	€255.22
A	LSR1201T-0508-TCF-NNN-NNN-N	Right Hand	1 mm	0.0211 N-m to 0.0264 N-m	6.4 mm	44.5 mm	703N	5.6 mm	35.7 mm	€255.22
D	LSR1205T-0254-RCF-NNN-NNN-N	Right Hand	5 mm	0.0211 N-m to 0.0264 N-m	6.4 mm	44.5 mm	703N	5.6 mm	35.7 mm	€161.43
A	LSR1205T-0254-TCF-NNN-NNN-N	Right Hand	5 mm	0.0211 N-m to 0.0264 N-m	6.4 mm	44.5 mm	703N	5.6 mm	35.7 mm	€161.43
D	LSR1205T-0508-RCF-NNN-NNN-N	Right Hand	5 mm	0.0211 N-m to 0.0264 N-m	6.4 mm	44.5 mm	703N	5.6 mm	35.7 mm	€255.22
B	LSR1205T-0508-RS-NNN-NNN-N	Right Hand	5 mm	Free Wheeling	6.4 mm	38.1 mm	778N	5.6 mm	35.7 mm	€233.67
C	LSR1205T-0508-TS-NNN-NNN-N	Right Hand	5 mm	Free Wheeling	6.4 mm	38.1 mm	778N	5.6 mm	35.7 mm	€233.67
B	LSR1001T-0508-RS-NNN-NNN-N	Right Hand	1 mm	Free Wheeling	4.8 mm	25.4 mm	445N	5.1 mm	28.6 mm	€266.91
B	LSR1001T-0254-RS-NNN-NNN-N	Right Hand	1 mm	Free Wheeling	4.8 mm	25.4 mm	445N	5.1 mm	28.6 mm	€139.86
C	LSR1001T-0254-TS-NNN-NNN-N	Right Hand	1 mm	Free Wheeling	4.8 mm	25.4 mm	445N	5.1 mm	28.6 mm	€113.64
A	LSR1001T-0254-TCF-NNN-NNN-N	Right Hand	1 mm	0.0197 N-m to 0.024 N-m	4.8 mm	38.1 mm	400N	5.1 mm	28.6 mm	€161.43
D	LSR1005T-0254-RCF-NNN-NNN-N	Right Hand	5 mm	0.0197 N-m to 0.024 N-m	4.8 mm	38.1 mm	400N	5.1 mm	28.6 mm	€161.43
D	LSR1001T-0254-RCF-NNN-NNN-N	Right Hand	1 mm	0.0197 N-m to 0.024 N-m	4.8 mm	38.1 mm	400N	5.1 mm	28.6 mm	€161.43

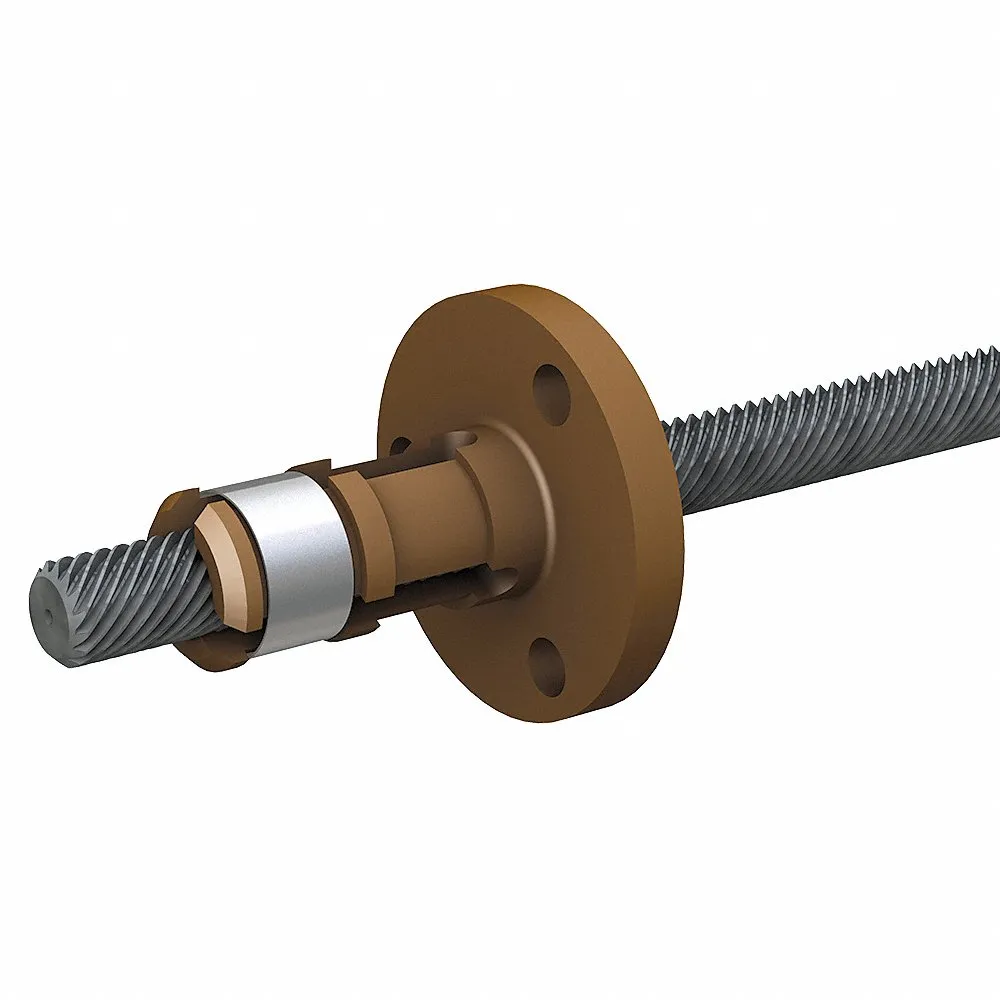

B	LSR1601T-0508-RS-NNN-NNN-N	Right Hand	1 mm	Free Wheeling	6.4 mm	38.1 mm	1160N	5.6 mm	44.5 mm	€249.04

PBC LINEAR -

Lead Screw Linear Actuator Motor Assemblies

Style	Model	Lead Length	Amps	Motor Length	Motor Size	Percent Efficiency	Winding Resistance	Frame	Travel Per Step	Price
A	LSR0601T-0200-NCF141-NNN-NNN	1 mm	1.5A	36 mm	NEMA 14	39%	1.61 ohms	NEMA 14	0.01 mm	€441.20
B	LSR0601T-0250-NCF171-NNN-NNN	1 mm	2A	39.8 mm	NEMA 17	39%	1.04 ohms	NEMA 17	0.05 mm	€414.32
B	LSR1001T-0300-NCF231-NNN-NNN	1 mm	2.2A	57 mm	NEMA 23	28%	1.6 ohms	NEMA 23	0.005 mm	€503.42
A	LSR0602T-0200-NCF141-NNN-NNN	2 mm	1.5A	36 mm	NEMA 14	76%	1.61 ohms	NEMA 14	0.02 mm	€441.20
B	LSR0602T-0250-NCF171-NNN-NNN	2 mm	2A	39.8 mm	NEMA 17	60%	1.04 ohms	NEMA 17	0.06 mm	€412.57
B	LSR0605T-0250-NCF171-NNN-NNN	5 mm	2A	39.8 mm	NEMA 17	76%	1.04 ohms	NEMA 17	0.125 mm	€412.57
B	LSR1005T-0300-NCF231-NNN-NNN	5 mm	2.2A	57 mm	NEMA 23	66%	1.6 ohms	NEMA 23	0.025 mm	€503.42
A	LSR0605T-0200-NCF141-NNN-NNN	5 mm	1.5A	36 mm	NEMA 14	76%	1.61 ohms	NEMA 14	0.03 mm	€441.20
B	LSR1010T-0300-NCF231-NNN-NNN	10 mm	2.2A	57 mm	NEMA 23	78%	1.6 ohms	NEMA 23	0.05 mm	€503.42

PBC LINEAR -

Motorized Lead Screw Assemblies With Rectangle Nuts

Style	Model	Lead Length	Nut Drag Torque	Amps	Motor Length	Motor Size	Percent Efficiency	Winding Resistance	Frame	Price
A	LSR0605T-0250-VCF-111-NNN-N	-	0.013 N-m to 0.016 N-m	-	-	-	-	-	-	€517.74

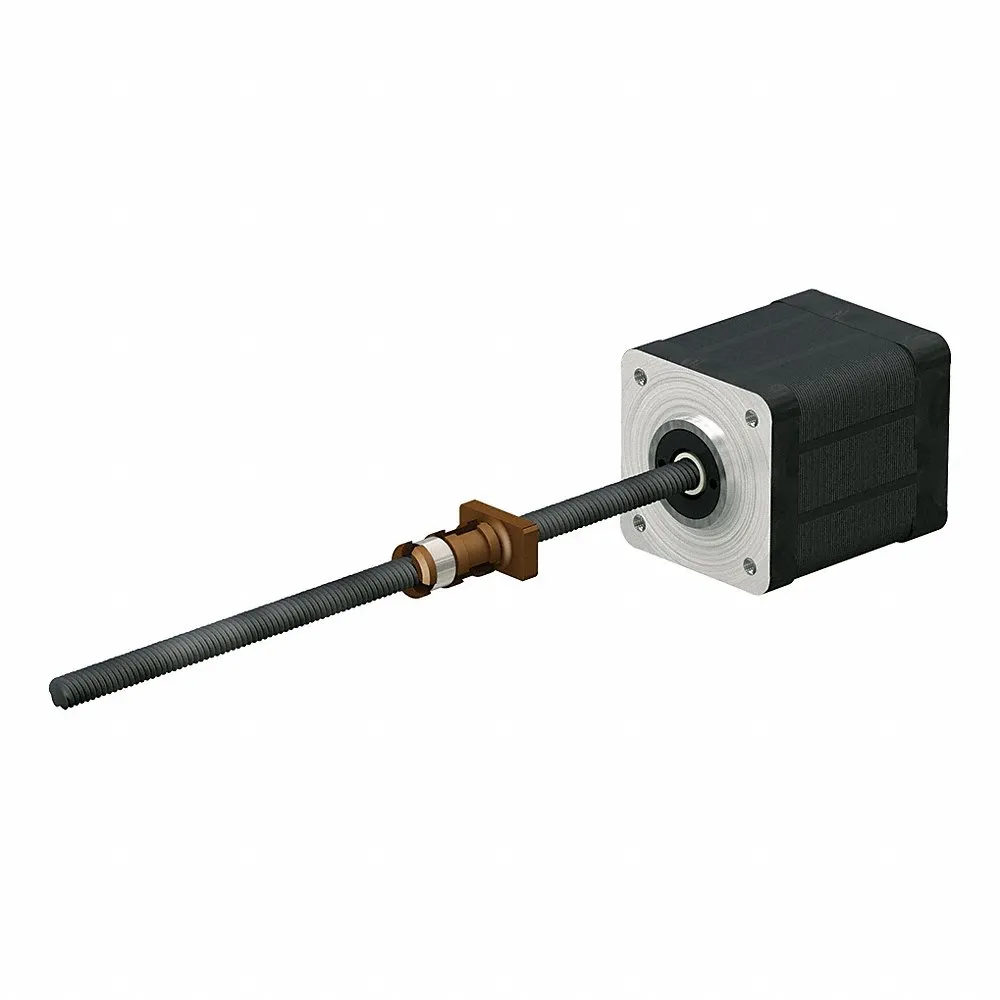

A	LSR0601T-0100-VCF-111-NNN-N	1 mm	0.0134 N-m to 0.0164 N-m	1A	41 mm	NEMA 11	39%	2.7 ohms	NEMA 11	€451.78
B	LSR0601T-0200-VCF-080-NNN-N	1 mm	0.0134 N-m to 0.0164 N-m	0.4A	29.5 mm	NEMA 8	39%	13.9 ohms	NEMA 8	€533.30
B	LSR0605T-0250-VCF-080-NNN-N	5 mm	0.0134 N-m to 0.0164 N-m	0.4A	29.5 mm	NEMA 8	76%	13.9 ohms	NEMA 8	€555.39
A	LSR0605T-0300-VCF-111-NNN-N	5 mm	0.0134 N-m to 0.0164 N-m	1A	41 mm	NEMA 11	76%	2.7 ohms	NEMA 11	€539.84
