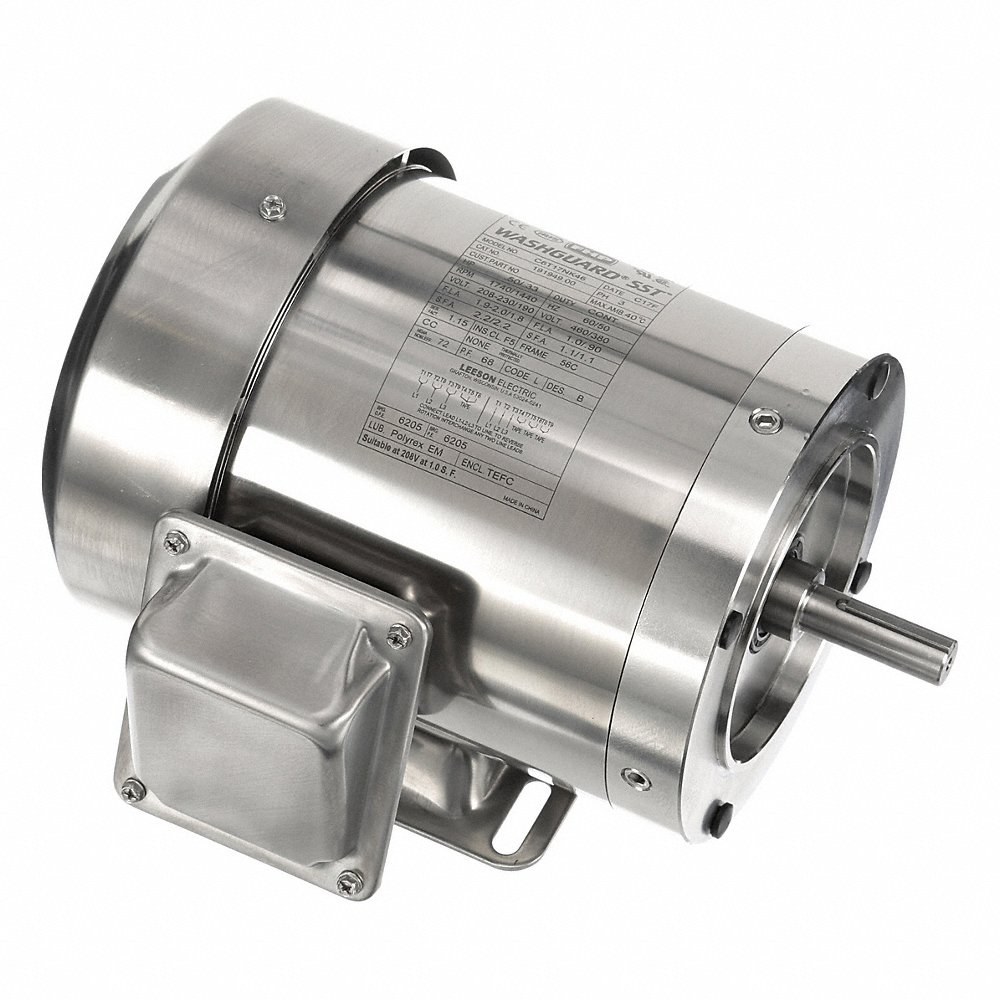

LEESON 191949.00 C6T17NK46A General Purpose Motor, 0.50/0.33 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Tuesday, Aug 25
5.00% off
€2,683.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Amps | 2/1A |
| Code | L |
| Design | B |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 72% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Finish | Paint Free |
| Frame | 56C |
| Frame Length | 5.49" |
| Frame Material | Stainless Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.9-2/1A |
| Grade | Grade 300 |
| Grease Type | Polyrex EM |
| Height | 9.65" |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | L |
| Kw | 0.37 kW |
| Length | 12 17/25" |
| Max. Speed | 1740 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW, CCW |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1800/1500 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | None |
| Phase | 3 |
| Power | 0.37 kW |
| Power Factor | 68 |
| Product Datasheet | leeson-191949-00.pdf |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Speed | 1700-1800 RPM |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TF |
| Voltage | 208-230/460V |
| Width | 11" |
Shipping Info:
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 24.51 |
| Ship length (cm) | 32.21 |
| Ship width (cm) | 27.94 |
| Country of Origin | CN |
Product Details:
- Eff 100%: 72
- Bearing OPE: 6205
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 081123
- Winding: QT63423
- GROUP: 3
- S. F Amps: 2.1-2.2 / 1.1
Documentation:
Product Variants
| Product | Model | Voltage | Phase | Hp | Frequency | Full Load Amps | Mounting Type | Motor Enclosure Design | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
191417.00 | 208-230/460V | 3 | 1 hp | 60 Hz | 3.8/1.9A | Rigid Base | Totally Enclosed Fan Cooled | Three Phase | €2,909.08 | |
 |
191421.00 | 208-230/460V | 3 | 1 hp | 60 Hz | 3.8/1.9A | Round | Totally Enclosed Fan Cooled | Three Phase | €2,631.99 | |
 |
191475.00 | 115-230V | 1 | 1/2 hp | 60 Hz | 8.2/4.1A | Face, Base | Totally Enclosed Fan Cooled | Capacitor Start | €2,163.10 | |
 |
191477.00 | 115-230V | 1 | 3/4 hp | 60 Hz | 9.8/4.9A | Face, Base | Totally Enclosed Fan Cooled | Capacitor Start | €2,431.04 | |
 |
191478.00 | 115-230V | 1 | 1 hp | 60 Hz | 12.4/6.2A | Face, Base | Totally Enclosed Fan Cooled | Capacitor Start | €1,161.93 | |
 |
191479.00 | 115-230V | 1 | 1 hp | 60 Hz | 13.6/6.8A | Face, Base | Totally Enclosed Fan Cooled | Capacitor Start | €1,255.51 | |
 |
191480.00 | 115-230V | 1 | 1 1/2 hp | 60 Hz | 16.4/8.2-8.5A | Face, Base | Totally Enclosed Fan Cooled | Capacitor Start | €2,726.60 |
