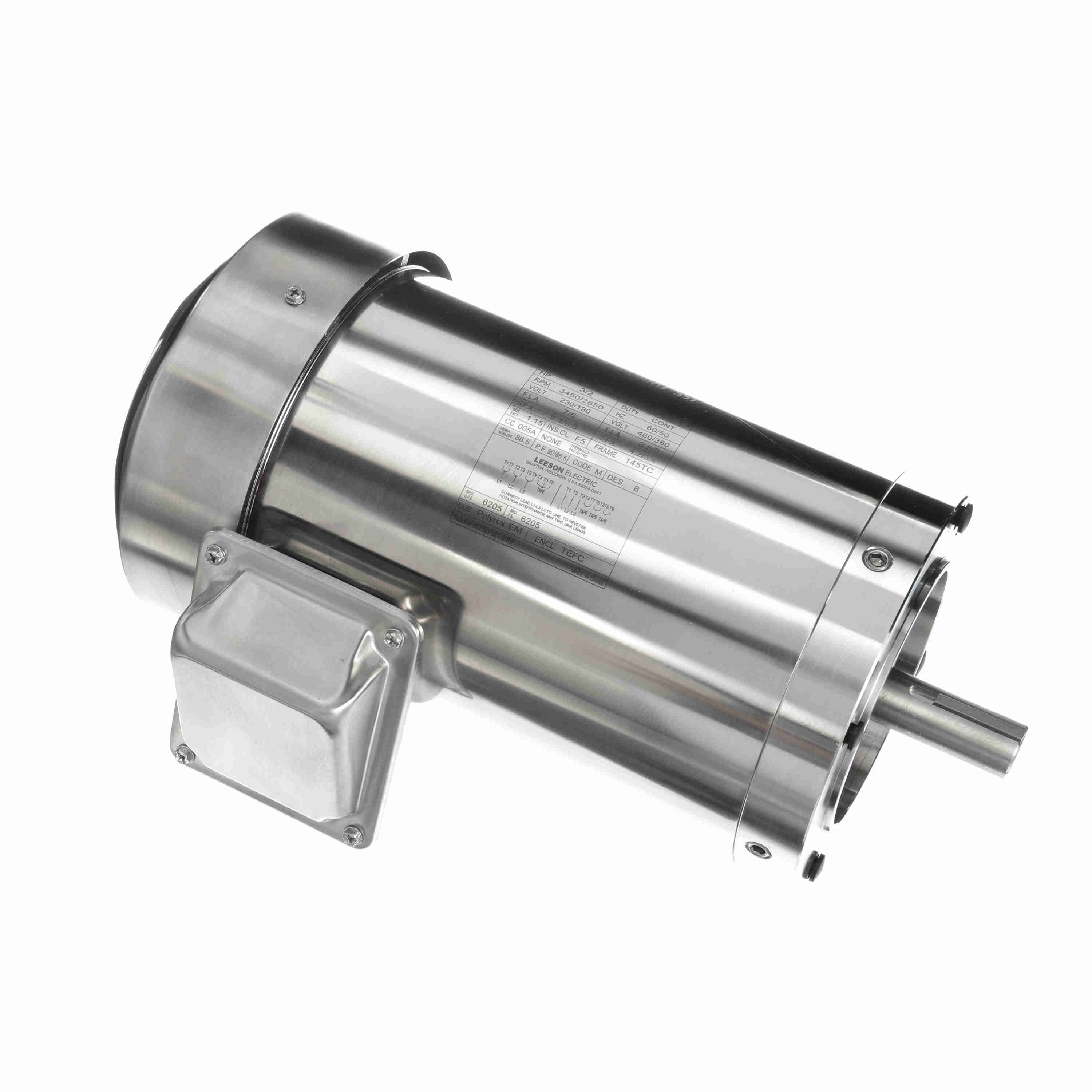

LEESON 191542.00 C145T34WC8B General Purpose Motor, 3/2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM
Get it by Friday, Aug 21
5.00% off
€2,583.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 7.2/3.6A |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC005A |
| Code | M |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Finish | Unfinished |
| Frame | 145TC |
| Frame Length | 8.39" |
| Frame Material | Stainless Steel |
| Frame Type | 145TC |
| Frequency | 50/60 Hz , 60 Hz |
| Frequency | 50/60 Hz |
| Full Load Amps | 7.2-8/3.6A |
| Grade | Grade 300 |
| Grease Type | Polyrex EM |
| Height | 9.65" |
| Hp | 3 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | M |
| Kw | 2.2 kW |
| Length | 15.55" |
| Length Less Shaft | 11 1/16" |
| Max. Ambient Temp. | 40°C |
| Max. Speed | 3470 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CWSE |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Round |
| Nameplate Speed | 3470 RPM |
| Nema Design | B |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 3/16" |
| Packaging | Individual |
| Phase | 3 |
| Power | 2.2 kW |
| Power Factor | 90 |
| Product Datasheet | leeson-191542-00.pdf |
| Product Type | Washdown Motor |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Material | Stainless Steel |
| Shaft Type | T |
| Speed | 3400-3600 RPM |
| Starting Method | Line Or Inverter |
| Thermal Protection | No Protection |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Width | 11" |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 24.51 |
| Ship length (cm) | 39.5 |
| Ship width (cm) | 27.94 |
| Country of Origin | CN |
Product Details:
- Bearing OPE: 6205
- CC Number: CC005A
- Bearing PE: 6205
- Winding: QT63220
- GROUP: 3
- S. F Amps: 9.2-8.2 / 4.1
- Eff 100%: 86.5 / 85.5
Documentation:
Product Variants
| Product | Model | Voltage | Phase | Hp | Frequency | Full Load Amps | Mounting Type | Motor Enclosure Design | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
191417.00 | 208-230/460V | 3 | 1 hp | 60 Hz | 3.8/1.9A | Rigid Base | Totally Enclosed Fan Cooled | Three Phase | €2,909.08 | |
 |
191421.00 | 208-230/460V | 3 | 1 hp | 60 Hz | 3.8/1.9A | Round | Totally Enclosed Fan Cooled | Three Phase | €2,631.99 | |
 |
191475.00 | 115-230V | 1 | 1/2 hp | 60 Hz | 8.2/4.1A | Face, Base | Totally Enclosed Fan Cooled | Capacitor Start | €2,163.10 | |
 |
191477.00 | 115-230V | 1 | 3/4 hp | 60 Hz | 9.8/4.9A | Face, Base | Totally Enclosed Fan Cooled | Capacitor Start | €2,431.04 | |
 |
191478.00 | 115-230V | 1 | 1 hp | 60 Hz | 12.4/6.2A | Face, Base | Totally Enclosed Fan Cooled | Capacitor Start | €1,161.93 | |
 |
191479.00 | 115-230V | 1 | 1 hp | 60 Hz | 13.6/6.8A | Face, Base | Totally Enclosed Fan Cooled | Capacitor Start | €1,255.51 | |
 |
191480.00 | 115-230V | 1 | 1 1/2 hp | 60 Hz | 16.4/8.2-8.5A | Face, Base | Totally Enclosed Fan Cooled | Capacitor Start | €2,726.60 |
