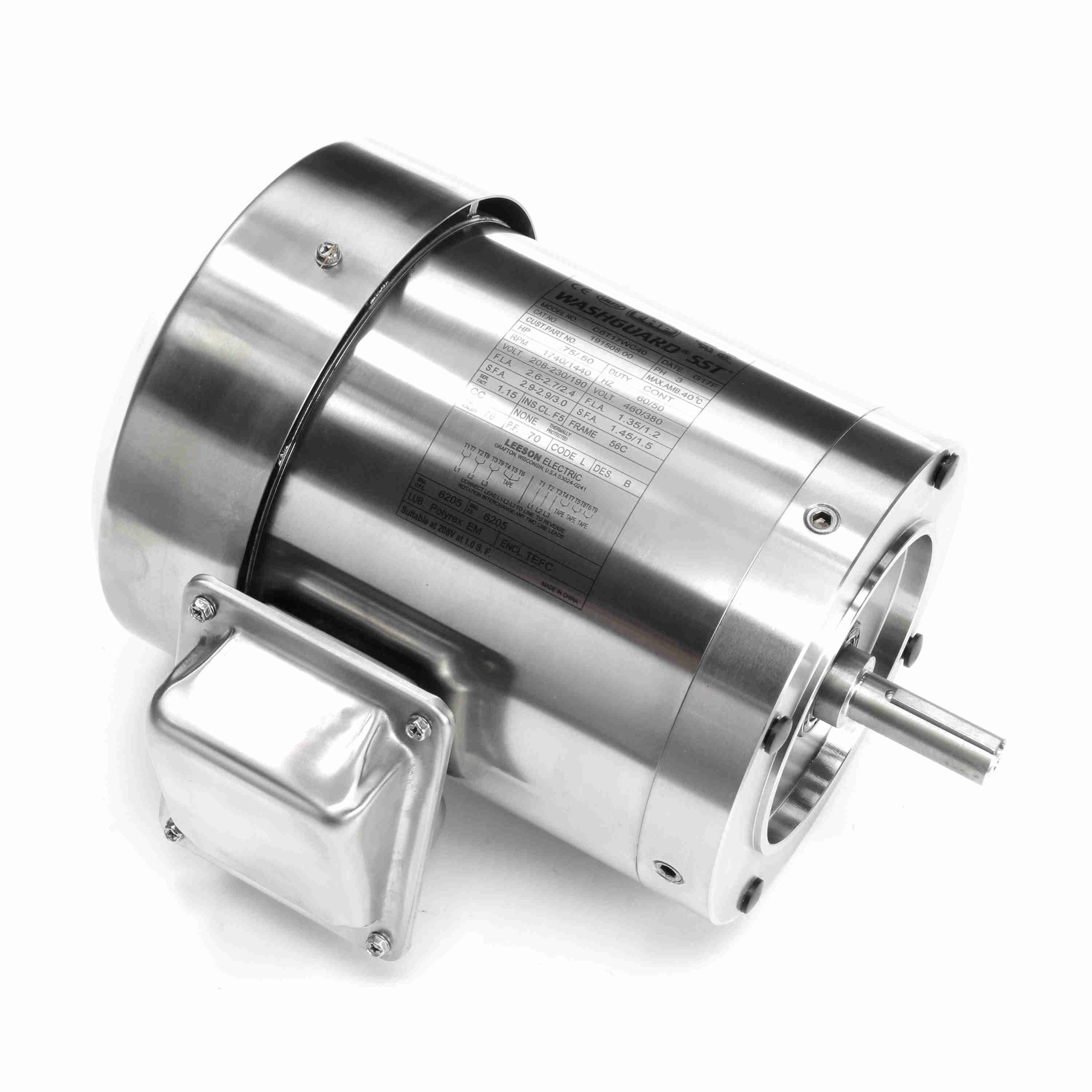

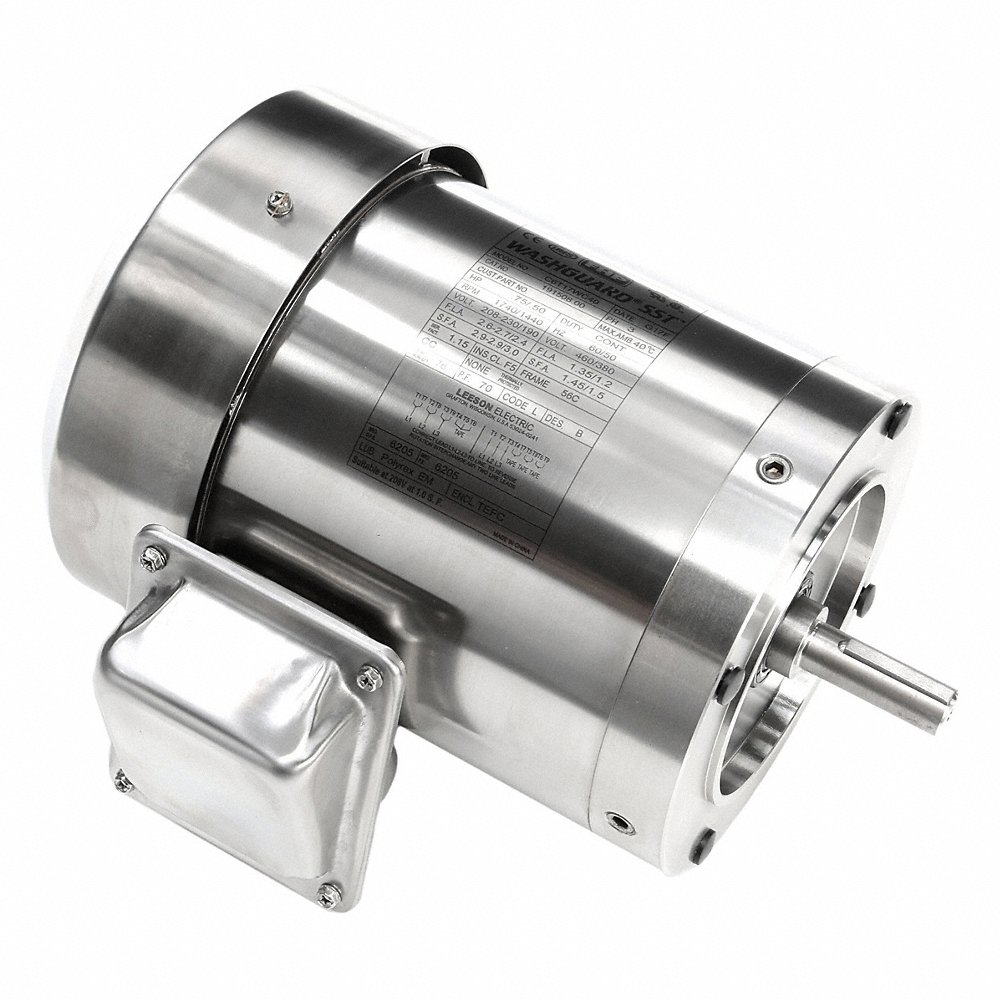

LEESON 191508.00 C6T17WC40A General Purpose Motor, 0.75 HP, 3 Phase, 60 Hz, 208-230/460V, 1800 RPM
Get it by Wednesday, Jul 1
5.00% off
€2,843.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Code | L |
| Design | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Enclosure Type | Tefc |
| Finish | Paint Free |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Frame Type | 56C |
| Frequency | 50/60 Hz |
| Full Load Amps | 2.4-2.3/1.15A |
| Grade | Grade 300 |
| Grease Type | Polyrex EM |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Kw | 0.56 kW |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1800/1500 RPM |
| No. Of Poles | 4 |
| Opp Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | None |
| Phase | 3 |
| Power | 0.56 kW |
| Power Factor | 73 |
| Product Datasheet | leeson-191508-00.pdf |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Speed | 1700-1800 RPM |
| Type | TF |
| Voltage | 208-230/460V |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 24.51 |
| Ship length (cm) | 32 |
| Ship width (cm) | 27.94 |
| Country of Origin | CN |
Product Details:
- Bearing OPE: 6205
- CC Number: EXEMPT
- Bearing PE: 6205
- Winding: QT6349
- GROUP: 3
- S. F Amps: 2.6 / 1.3
- Eff 100%: 82.5 / 83.6
Documentation:
Product Variants
| Product | Model | Voltage | Phase | Hp | Frequency | Full Load Amps | Mounting Type | Motor Enclosure Design | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
191417.00 | 208-230/460V | 3 | 1 hp | 60 Hz | 3.8/1.9A | Rigid Base | Totally Enclosed Fan Cooled | Three Phase | €2,909.08 | |
 |
191421.00 | 208-230/460V | 3 | 1 hp | 60 Hz | 3.8/1.9A | Round | Totally Enclosed Fan Cooled | Three Phase | €2,631.99 | |
 |
191475.00 | 115-230V | 1 | 1/2 hp | 60 Hz | 8.2/4.1A | Face, Base | Totally Enclosed Fan Cooled | Capacitor Start | €2,163.10 | |
 |
191477.00 | 115-230V | 1 | 3/4 hp | 60 Hz | 9.8/4.9A | Face, Base | Totally Enclosed Fan Cooled | Capacitor Start | €2,431.04 | |
 |
191478.00 | 115-230V | 1 | 1 hp | 60 Hz | 12.4/6.2A | Face, Base | Totally Enclosed Fan Cooled | Capacitor Start | €1,161.93 | |
 |
191479.00 | 115-230V | 1 | 1 hp | 60 Hz | 13.6/6.8A | Face, Base | Totally Enclosed Fan Cooled | Capacitor Start | €1,255.51 | |
 |
191480.00 | 115-230V | 1 | 1 1/2 hp | 60 Hz | 16.4/8.2-8.5A | Face, Base | Totally Enclosed Fan Cooled | Capacitor Start | €2,726.60 |
