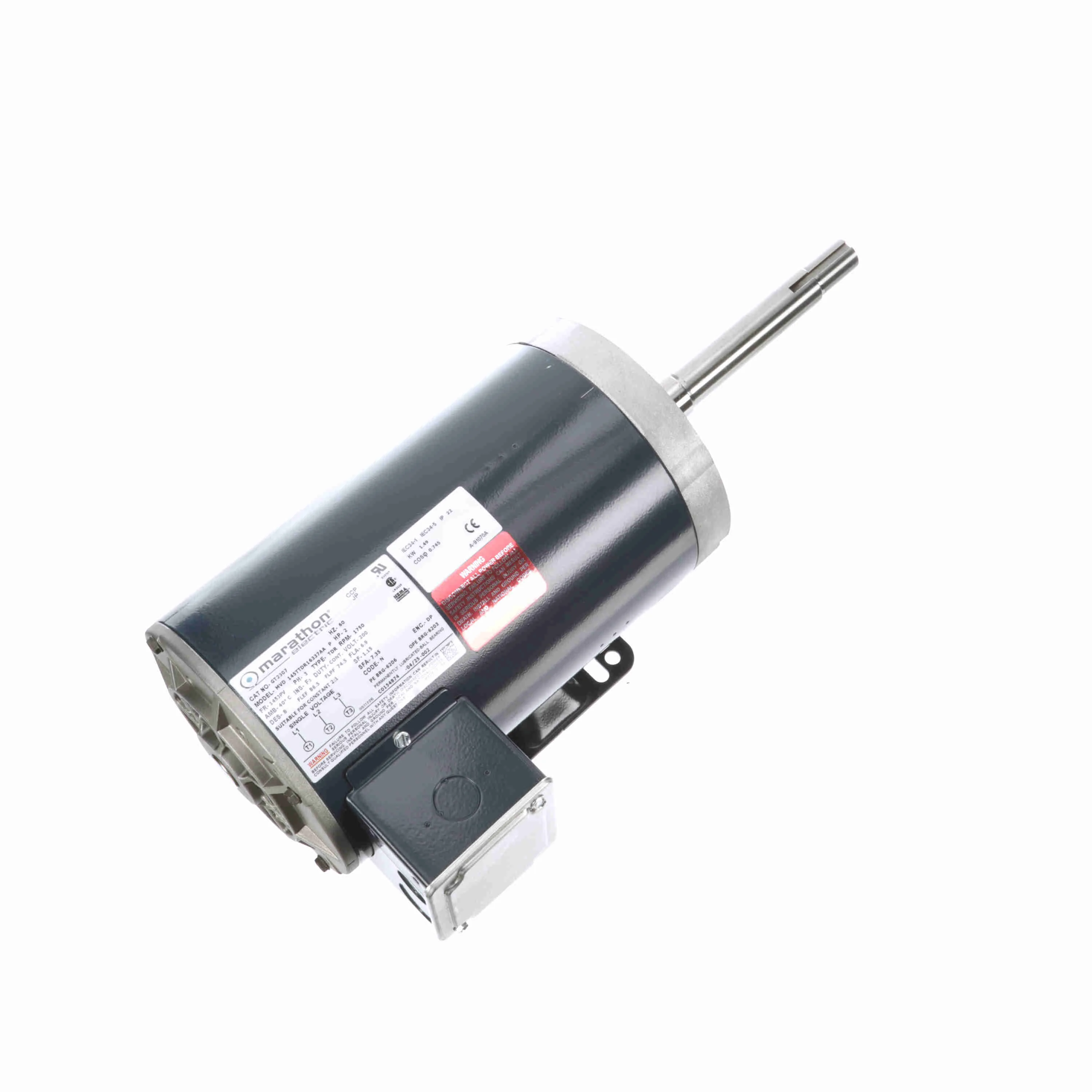

LEESON 145TTDR16337 145TTDR16337AA / GT2307 Close Coupled Pump Motor, 2 HP, 3 Phase, 60 Hz, 200V, 1800 RPM
Item: AJ2MLCModel: 145TTDR16337Cross Ref: 52JC44 / 145TTDR16337AA / GT2307
In Stock
Get it by Monday, May 18
€265.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Ambient (c) | 40°C |
| Assembly | F1 Only |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Frame | 145JPV |
| Frame Type | 145JPV |
| Frequency | 60 Hz |
| Full Load Amps | 6.9A |
| Full Load Efficiency | 86.5% |
| Hp | 2 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Position | Horizontal, Vertical Shaft Down |
| Motor Mounting Type | Rigid Base |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | C Face, Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | B |
| Orientation | Horizontal, Shaft Down |
| Output Kw | 1.49 kW |
| Phase | 3 |
| Power | 1.49 kW |
| Product Datasheet | leeson-145ttdr16337.pdf |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 7.333" |
| Voltage | 200V AC |
Shipping Info:
| Ship weight (kg) | 23.85 |
| Ship height (cm) | 37.47 |
| Ship length (cm) | 57.15 |
| Ship width (cm) | 42.7 |
| HS code | 8501524000 |
| Country of Origin | US |
Product Details:
- Starting Type: LINE OR INVERTER
- KVA Code: N
- Drive End Bearing: BALL
- IP Code: 22
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6206
- Opposite End Bearing Size: 6203
- Inverter Speed Range: CONSTANT 2:1
Documentation:
Product Variants
| Product | Model | Hp | Nameplate Rpm | Motor Enclosure Design | Voltage | Frame | Motor Mounting Type | Rpm Range | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
145TTDR6013 | 3 hp | 3490 RPM | Open Dripproof | 230/460V AC | 145JM | Face, Base | 3001-3600 RPM | 3 Phase | €1,032.54 | |
 |
145TTDR6034 | 1 1/2 hp | 1755 RPM | Open Dripproof | 230/460V AC | 145JM | Face, Base | 1701-1800 RPM | 3 Phase | €787.73 | |
 |
145TTDR6036 | 2 hp | 1750 RPM | Open Dripproof | 230/460V AC | 145JM | Face, Base | 1701-1800 RPM | 3 Phase | €847.83 | |
 |

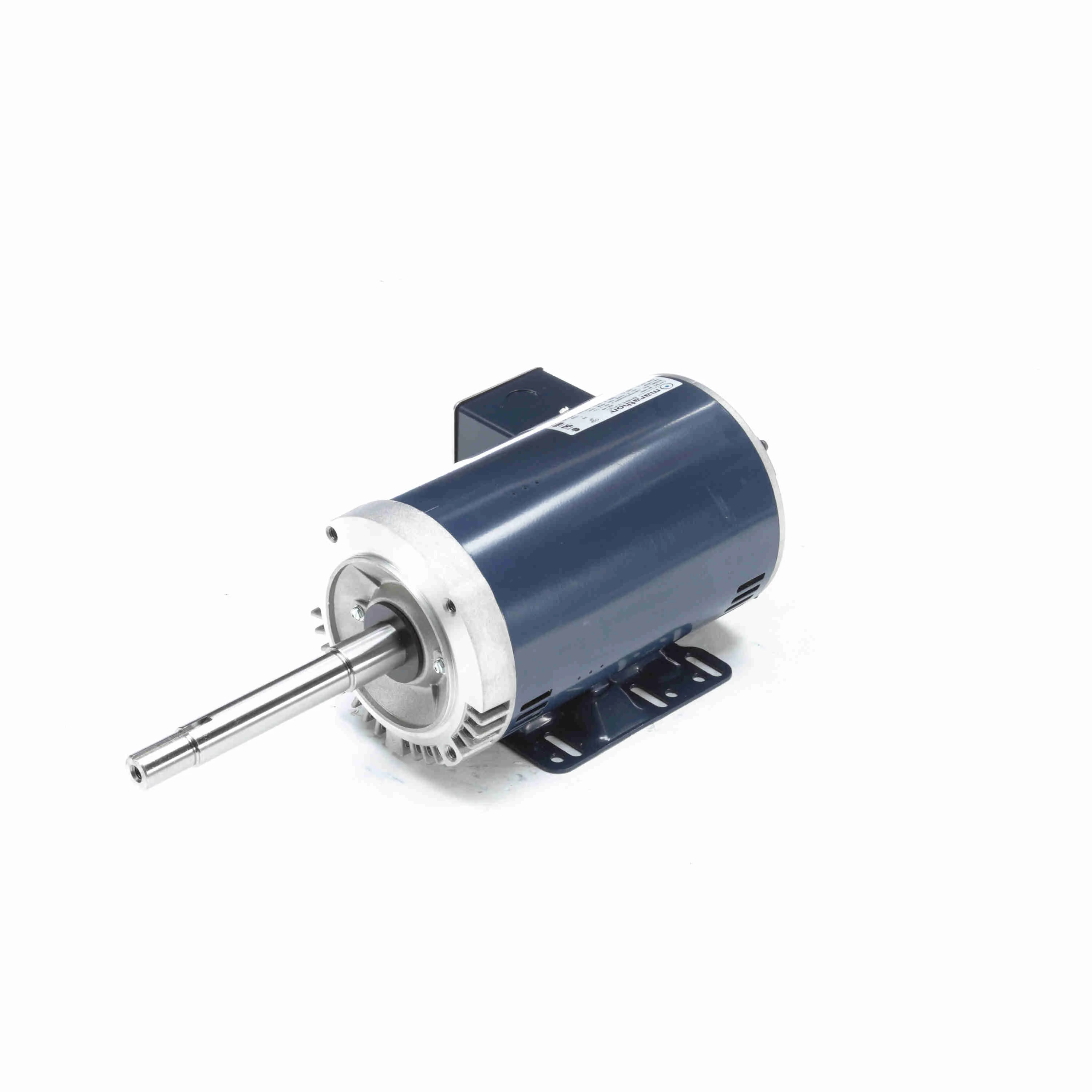

145TTDR16330 | 1 1/2 hp | 1755 RPM | Open Dripproof | 230/460V AC | 145JP | Face, Base | 1701-1800 RPM | 3 Phase | €787.73 | |
 |
143TTDR16042 | 1 hp | 1800 RPM | Dripproof | 200V AC | 143JMV | C Face Footless | - | - | €183.11 | |
 |
145TTDR16302 | 3 hp | 3600 RPM | Dripproof | 575V AC | 145JMV | C Face Footless | - | - | €179.69 | |
 |
143TTDR16043 | 1 hp | 1800 RPM | Dripproof | 200V AC | 143JMV | Rigid Base | - | - | €207.02 |
