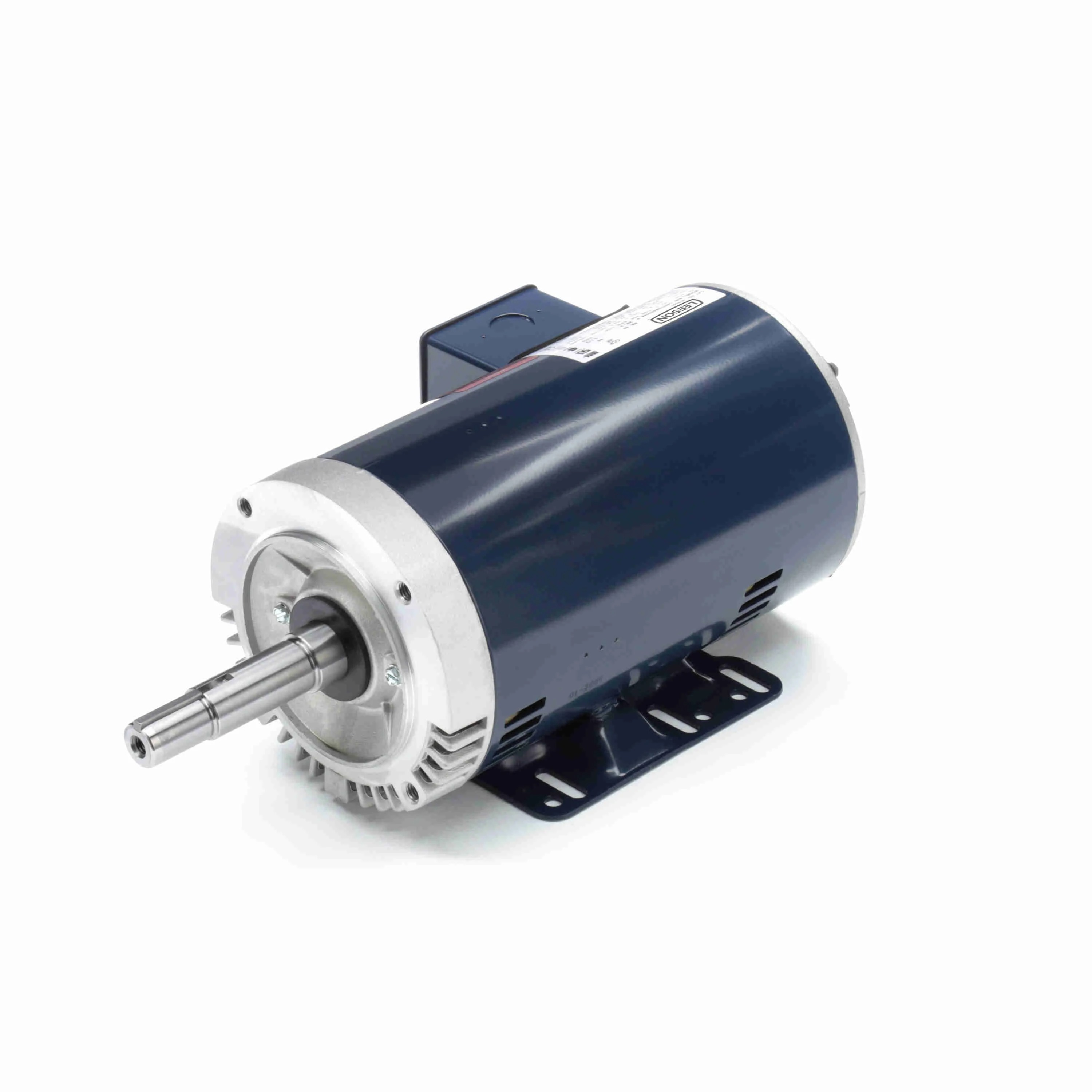

LEESON 145TTDR6036 145TTDR6036AA / GT0407 Close Coupled Pump Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Tuesday, May 19
5.00% off
€805.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Efficiency Group | NEMA Premium |
| Frame | 145JM |
| Frame Material | Rolled Steel |
| Frame Type | 145JM |
| Frequency | 50/60 Hz |
| Full Load Amps | 6/3A |
| Height | 6 11/16" |
| Hp | 2 hp |
| Hz | 60 Hz |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Inverter Rating | 10:1 Variable Torque, 2:1 Constant Torque |
| Length Less Shaft | 11 3/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | JM Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Close-Coupled Pump |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Nameplate Rpm | 1750 RPM |
| Nema Design | B |
| Nominal Efficiency | 86.5% |
| Number Of Speeds | 1 |
| Overall Height | 6.688" |
| Overall Length | 15 5/8" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 4 1/4" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 49.05 |
| Ship width (cm) | 28.42 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Nameplate Rpm | Motor Enclosure Design | Voltage | Frame | Motor Mounting Type | Rpm Range | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
145TTDR6013 | 3 hp | 3490 RPM | Open Dripproof | 230/460V AC | 145JM | Face, Base | 3001-3600 RPM | 3 Phase | €1,032.54 | |
 |
145TTDR6034 | 1 1/2 hp | 1755 RPM | Open Dripproof | 230/460V AC | 145JM | Face, Base | 1701-1800 RPM | 3 Phase | €787.73 | |
 |
145TTDR16330 | 1 1/2 hp | 1755 RPM | Open Dripproof | 230/460V AC | 145JP | Face, Base | 1701-1800 RPM | 3 Phase | €787.73 | |
 |
143TTDR16042 | 1 hp | 1800 RPM | Dripproof | 200V AC | 143JMV | C Face Footless | - | - | €183.11 | |
 |
145TTDR16337 | 2 hp | 1800 RPM | Dripproof | 200V AC | 145JPV | Rigid Base | - | - | €265.76 | |
 |
145TTDR16302 | 3 hp | 3600 RPM | Dripproof | 575V AC | 145JMV | C Face Footless | - | - | €179.69 | |
 |
143TTDR16043 | 1 hp | 1800 RPM | Dripproof | 200V AC | 143JMV | Rigid Base | - | - | €207.02 |
