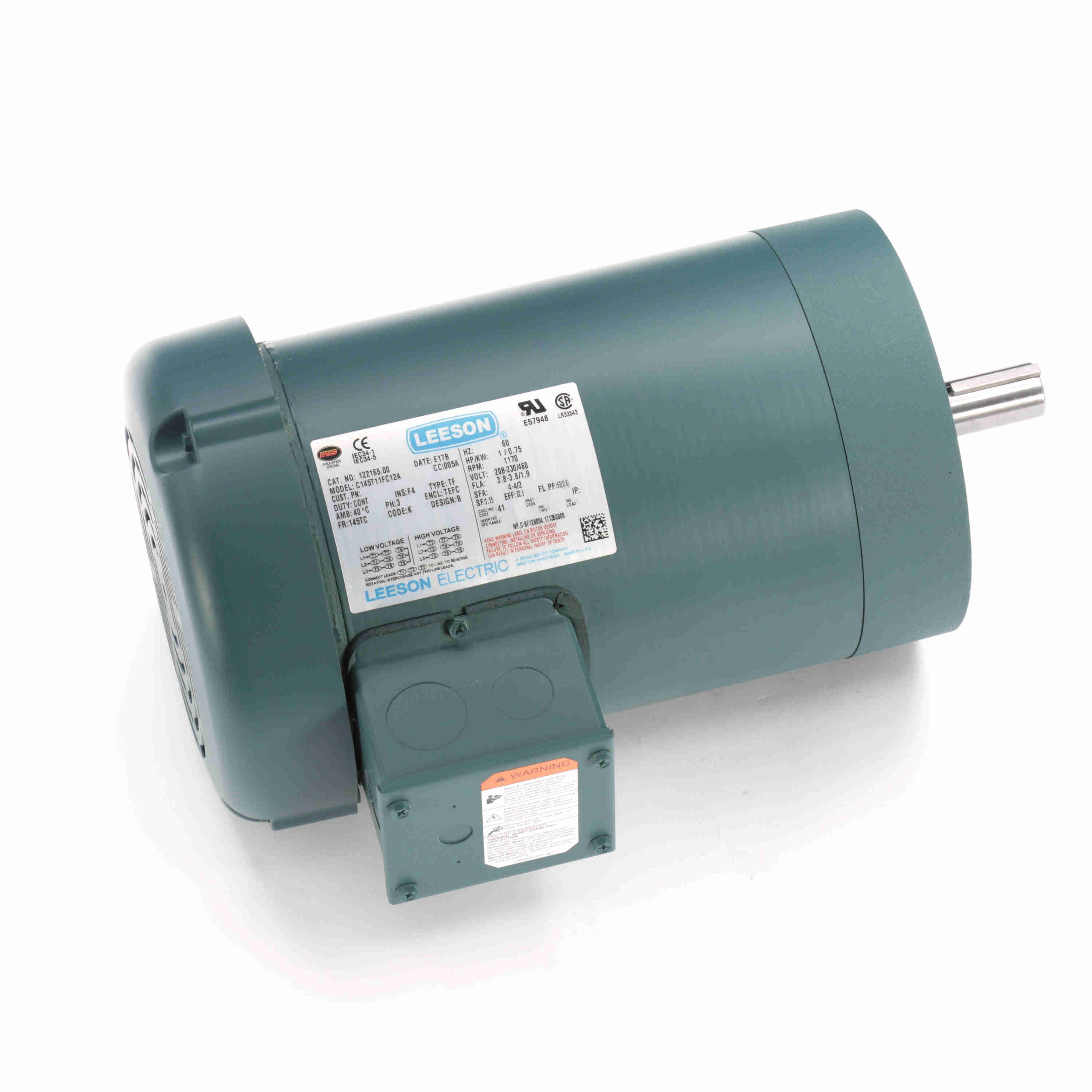

LEESON 122165.00 C145T11FC12A General Purpose Motor, 1 HP, 3 Phase, 60 Hz, 230/460V, 1200 RPM
Get it by Monday, Dec 22
10.00% off
€1,316.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 3.8/1.9A |
| Code | K |
| Conduit Box Position | F1 |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 145TC |
| Frame Length | 7 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 3.8/1.9A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 hp |
| Insulation Class | Class F |
| Ip Code | IP43 |
| Kva Code | K |
| Kw | 0.75 kW |
| Length | 14 11/25" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1170 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1200 RPM |
| Nema Design | B, K |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.75 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 60 |
| Resistance Main | 1.63 ohms |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TF |
| Voltage | 208-230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 20.84 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - G120098.00 / C145T11FC9A
- Eff 100%: 82.5
- Bearing OPE: 6203
- CC Number: CC005A
- Bearing PE: 6205
- Nameplate: 993500
- Winding: T63681
- GROUP: 3
- Paint: GREEN - LEESON WATTSAVER
- S. F Amps: 4-4 / 2
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Frequency | Full Load Amps | Mounting Type | Motor Type | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
101769.00 | 208-230/460V | 1725 RPM | 33/100 hp | 60 Hz | 1.5-1.6/0.8A | Face | Three Phase | 1.15 | €680.90 | |
 |
101780.00 | 208-230/460V | 1800/1500 RPM | 1/2 hp | 60 Hz | 1.8/0.9A | C Face, Footless | Squirrel Cage Induction Run | 1.15 | €604.30 | |
 |
101981.00 | 208-230V | 1800 RPM | 1/4 hp | 60 Hz | 1.2-1.4/0.7A | Rigid Base | Squirrel Cage Induction Run | 1.15 | €383.09 | |
 |
102860.00 | 208-230/460V | 1725 RPM | 1/2 hp | 60 Hz | 1.9-2/1A | Face | Three Phase | 1.15 | €469.95 | |
 |
102863.00 | 208-230/460V | 1800 RPM | 33/100 hp | 60 Hz | 1.3/0.65A | C Face, Footless | Squirrel Cage Induction Run | 1.15 | €413.30 | |
 |
110047.00 | 208-230/460V | 1725 RPM | 3/4 hp | 60 Hz | 2.8/1.4A | Face | Squirrel Cage Induction Run | 1.15 | €507.71 | |
 |
110144.00 | 208-230/460V | 3600 RPM | 1/2 hp | 60 Hz | 1.7-1.6/0.8A | C Face, Footless | Squirrel Cage Induction Run | 1.15 | €481.82 |
