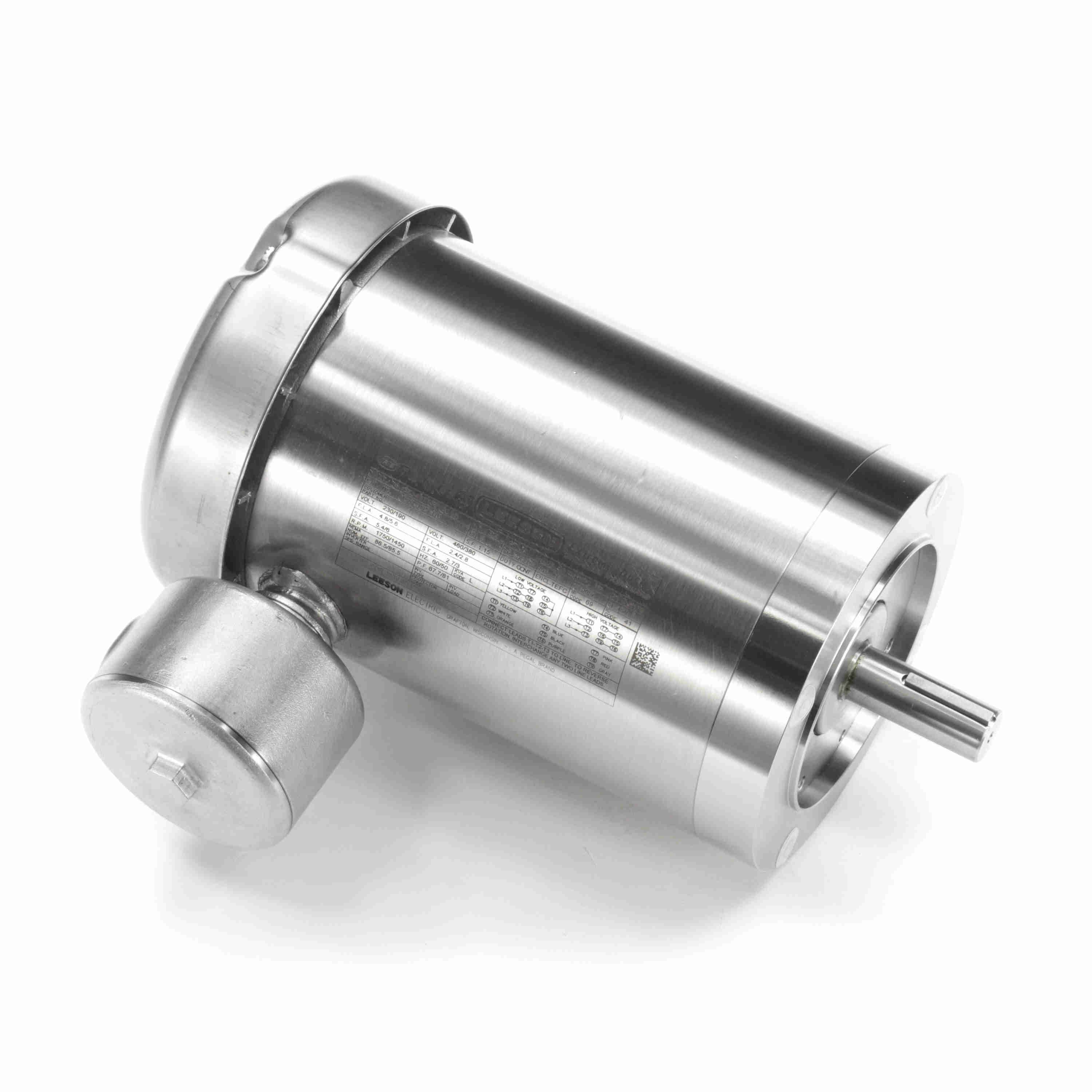

LEESON 121909.00 CZ143T17UC1C General Purpose Motor, 1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM

Item: AJ2RKLModel: 121909.00Cross Ref: 52ZW27 / CZ143T17UC1C

Check Availability

In Stock

Get it by Tuesday, Dec 23

~~€3,339.41~~

10.00% off

€3,005.47 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Washdown Motor
Ambient Temp.	104°F
Amps	4.8/2.4A
Application	Washdown
Bearing Type	Ball
Body Dia.	6 14/25"
Bolt Circle Dia.	5 7/8"
Cc Number	CC005A
Code	L
Conduit Box Position	F1
Design	B
Design Code	B
Drain Plug	C Face
Drive End Bearing Size	6205
Drive End Bearing Type	Ball
Duty Cycle	Continuous
Efficiency	86.5%
Electrical Type	Squirrel Cage, Induction Run
Enclosure Type	Tefc
Endshield Material	Stainless Steel
Finish	Paint Free
Frame	143TC
Frame Length	7 3/4"
Frame Material	Stainless Steel
Frame Type	143TC
Frequency	60 Hz
Frequency	50/60 Hz
Full Load Amps	2.4A
Grade	Grade 300
Grease Type	Polyrex EM
Height	12 22/25"
Hp	1 1/2 hp
Insulation Class	Class F
Ip Code	IP69
Kva Code	L
Kw	1.1 kW
Length	17.94"
Max. Rpm	1725 RPM
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Mounting Position	Horizontal
Motor Orientation	Horizontal
Motor Shaft Design	Keyed
Motor Shaft Rotation	Clockwise, Counter Clockwise
Motor Shaft Rotation	Clockwise/Counter Clockwise
Motor Type	Three Phase
Mounting Type	Round
Nema Design	B
No. Of Poles	4
No. Of Speeds	1
Nominal Efficiency	86.5%
Opp. Drive End Bearing Size	6205
Opp. Drive End Bearing Type	Ball
Overall Length	12 11/16"
Packaging	B
Phase	3
Power	1.12 kW
Power Factor	67.7
Removable Base	No
Resistance Main	9.12 ohms
Rotation	Reversible
Rpm	1700-1800 RPM
Service Factor	1.15
Shaft Dia.	7/8"
Shaft Length	2 1/4"
Shaft Material	Stainless Steel
Shaft Type	T
Starting Method	Across The Line
Thermal Protection	No Protection
Type	TF
Usable @ 200v	No
Usable @ 208v	No
Voltage	230/460V
Width	13.06"

Shipping Info:

Ship weight (kg)	24.75
Ship height (cm)	32.72
Ship length (cm)	45.57
Ship width (cm)	33.17
Country of Origin	US

Product Details:

Supersedes Leeson - 121751.00 / CZ145T17WC41C
Bearing OPE: 6205
CC Number: CC005A
Bearing PE: 6205
Nameplate: 213-0016
Winding: T634341
GROUP: 7
S. F Amps: 5.4 / 2.7
Eff 100%: 86.5 / 85.5

Product Variants

Model	Voltage	Hp	Finish	Frame	Nameplate Rpm	Full Load Amps	Ambient Temp.	Motor Type	Price
117127.00	208-230/460V	1/2 hp	Paint Free	56C	1725 RPM	1.6A	104°F	Three Phase	€1,492.37

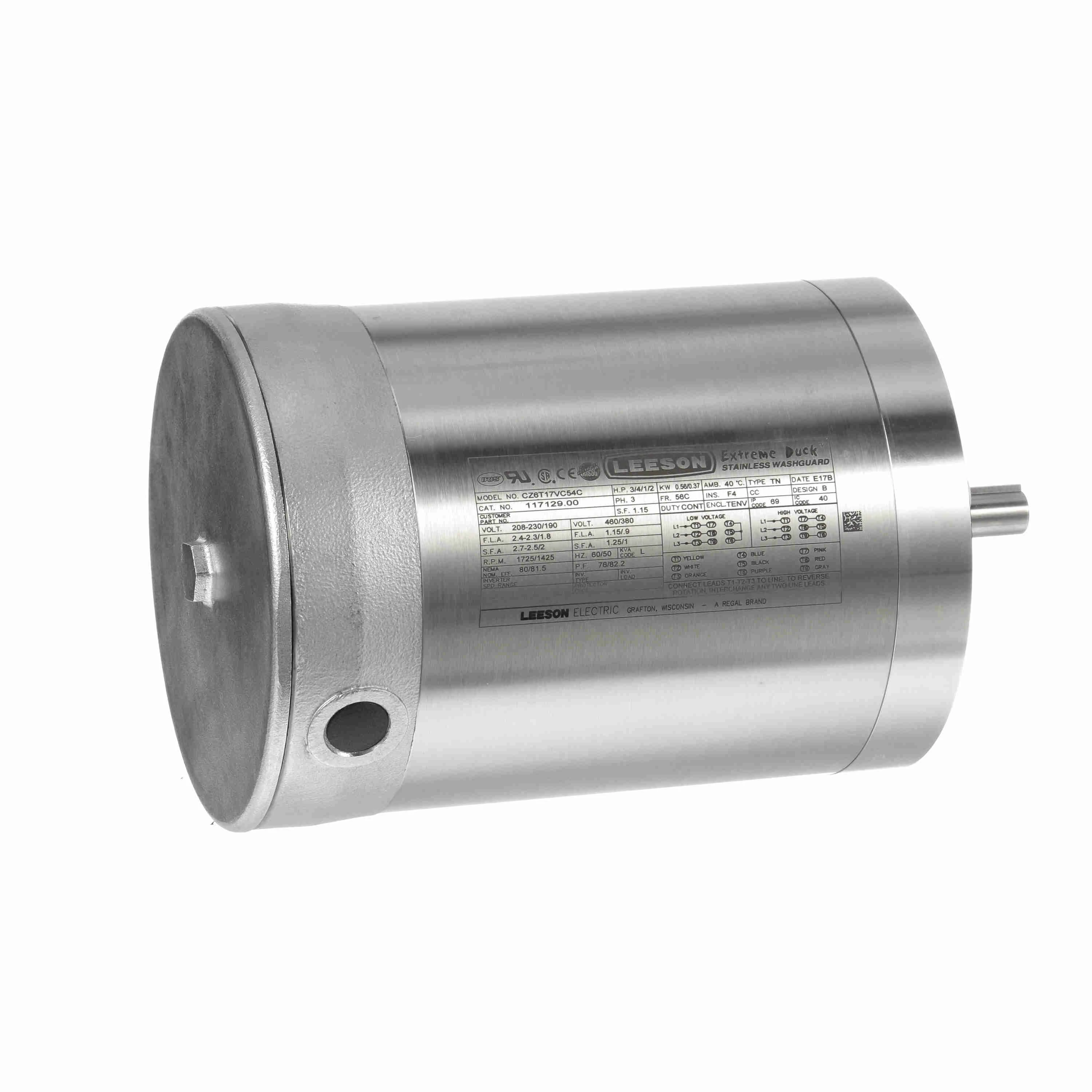

117129.00	208-230/460V	3/4 hp	Paint Free	56C	1725 RPM	1.1A	104°F	Three Phase	€2,667.02
103413.00	208-230/460V	1/2 hp	Paint Free	S56C	1800/1500 RPM	1.9-1.8/0.9A	40°C	Squirrel Cage Induction Run	€2,975.15
103414.00	208-230/460V	3/4 hp	Paint Free	S56C	1800/1500 RPM	2.5-2.4/1.2A	40°C	Squirrel Cage Induction Run	€1,663.89

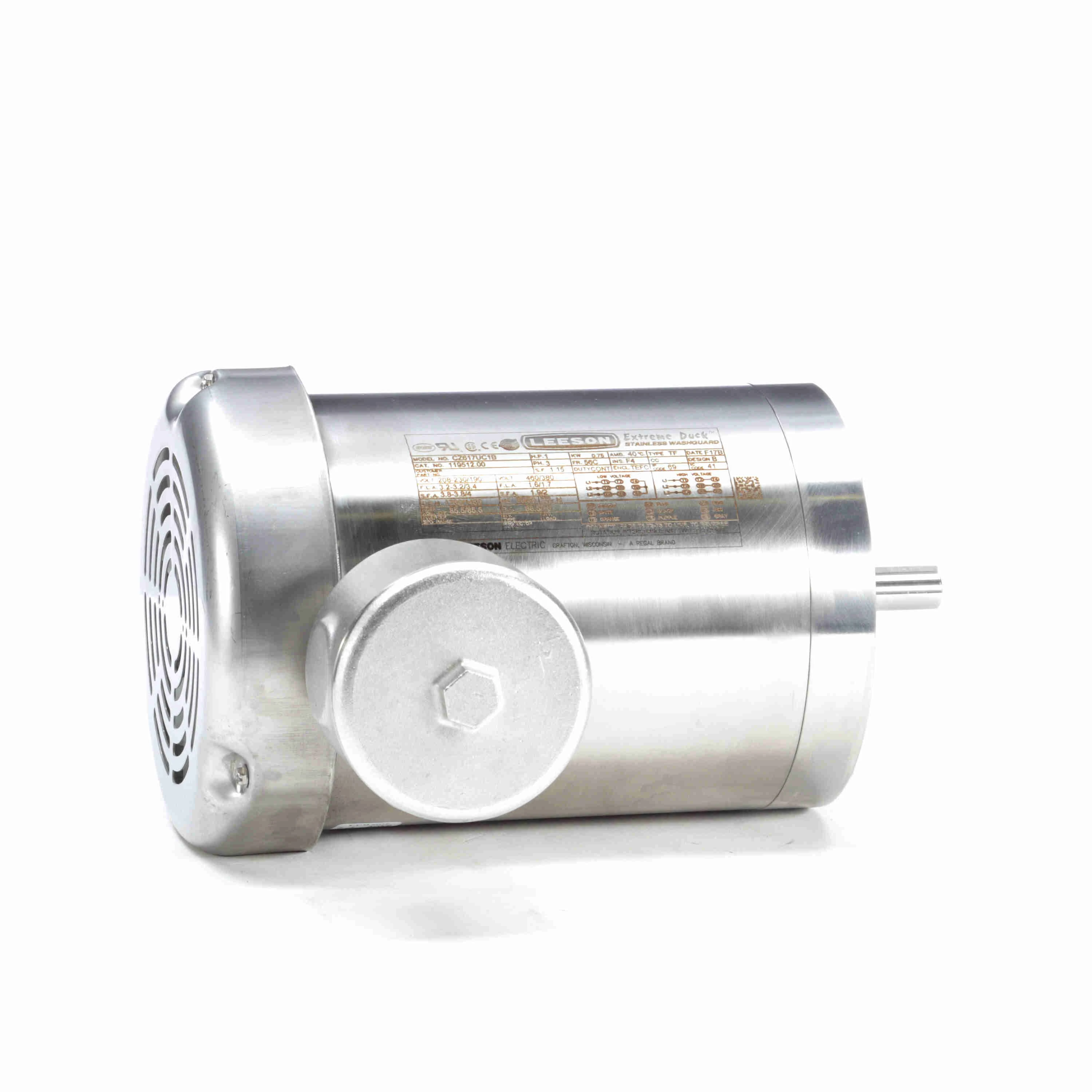

119512.00	208-230/460V	1 hp	Unfinished	56C	1760 RPM	3.2/1.6A	104°F	Three Phase	€2,937.94

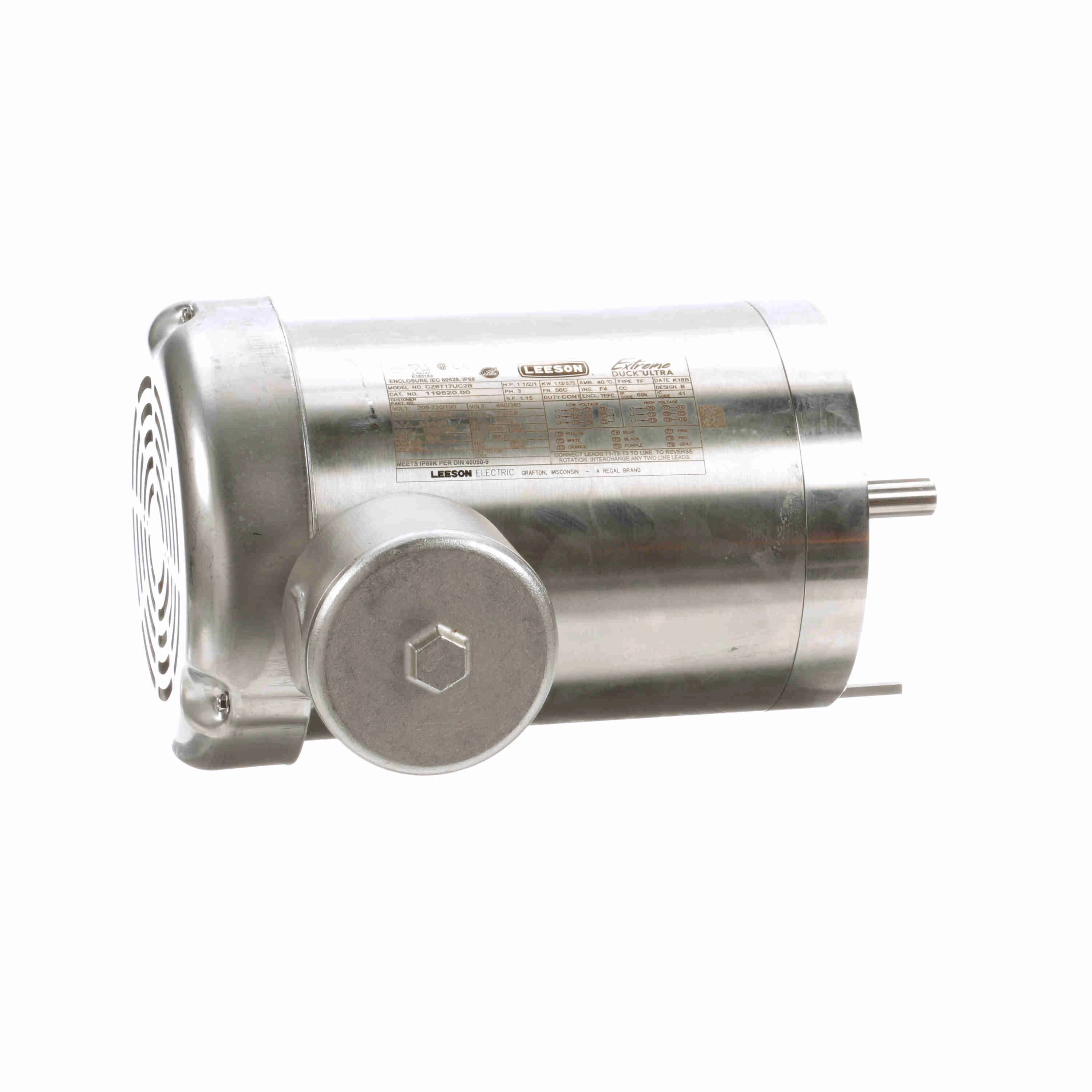

119520.00	208-230/460V	1 1/2 hp	Unfinished	56C	1750 RPM	4.6-4.8/2.4A	104°F	Three Phase	€1,815.13

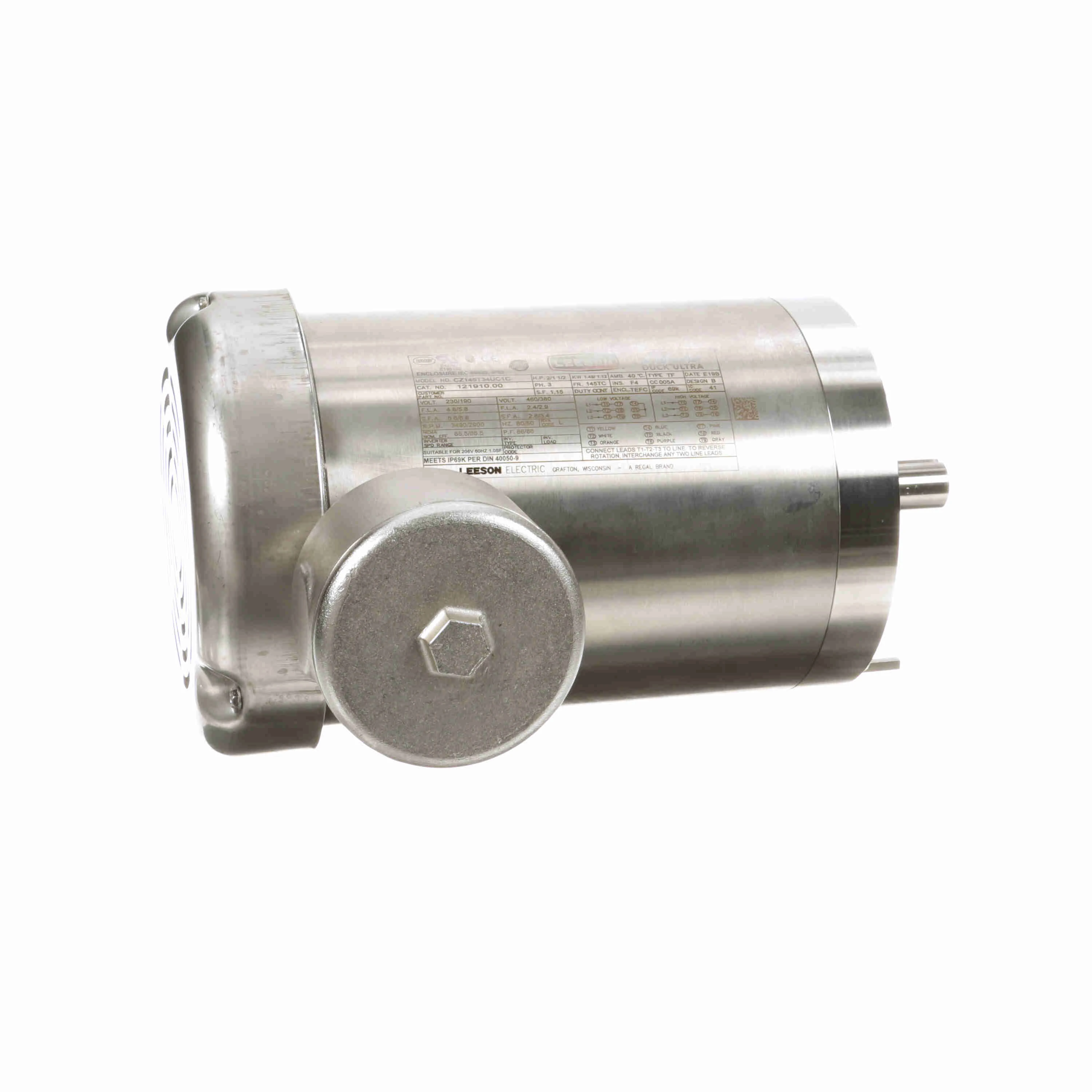

121910.00	230/460V	2 hp	Paint Free	143TC	3490 RPM	2.4A	104°F	Three Phase	€3,852.17
