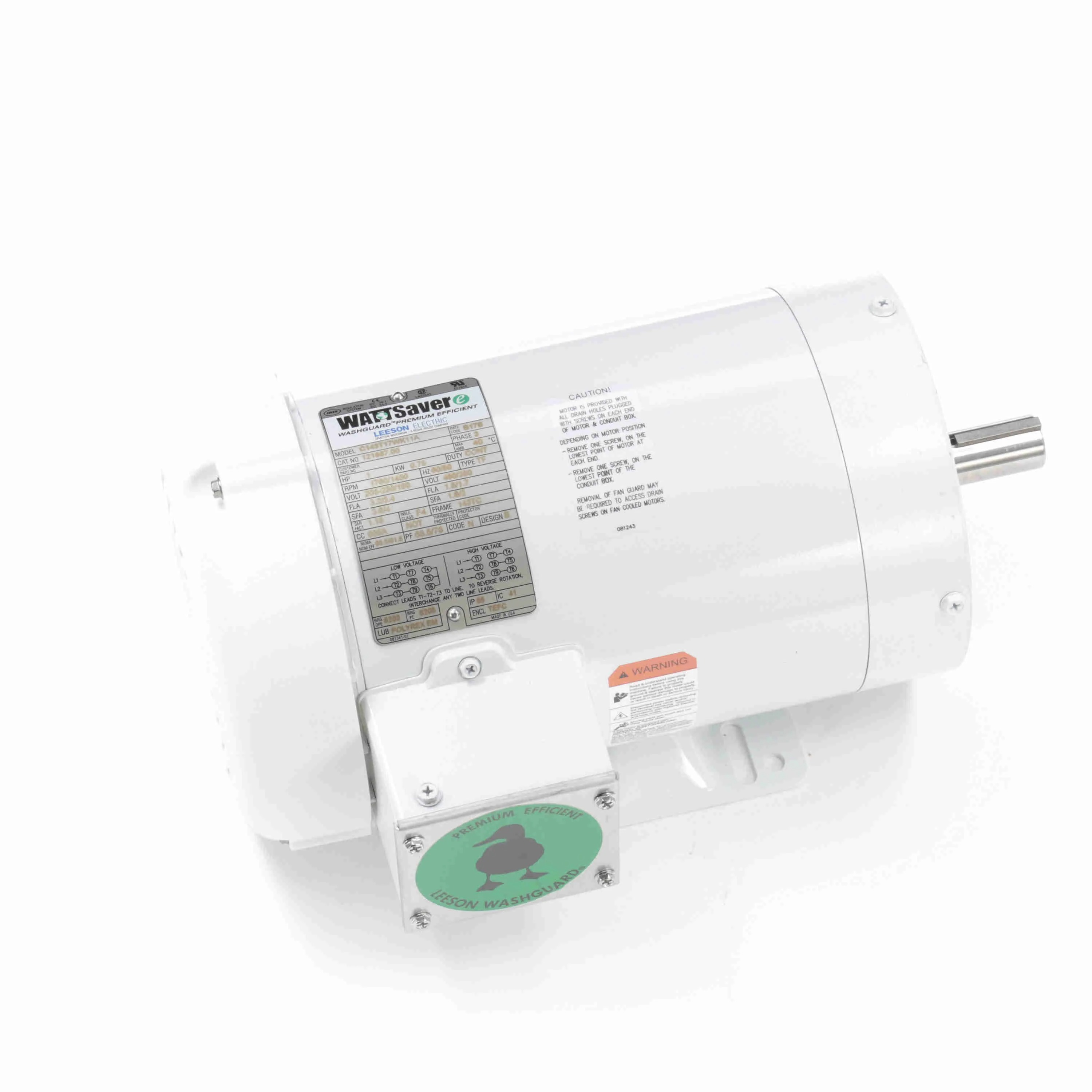

LEESON 121867.00 C143T17WK11A General Purpose Motor, 1 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM

Item: AJ2RJYModel: 121867.00Cross Ref: 48ZF99 / C143T17WK11A

Check Availability

In Stock

Get it by Tuesday, Dec 23

~~€1,328.39~~

10.00% off

€1,195.55 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Washdown Motor
Ambient Temp.	104°F
Amps	3.2/1.6A
Application	Washdown
Bearing Type	Ball
Body Dia.	7.38"
Bolt Circle Dia.	5 7/8"
Cc Number	CC005A
Code	N
Color	White
Conduit Box Location	Exterior
Design Code	B
Drive End Bearing Size	6205
Drive End Bearing Type	Ball
Duty Cycle	Continuous
Efficiency	85.5%
Electrical Type	Squirrel Cage, Induction Run
Enclosure Type	Tefc
Finish	Epoxy Coated
Frame	143TC
Frame Length	7 3/4"
Frame Material	Rolled Steel
Frame Type	143TC
Frequency	50/60 Hz
Frequency	60 Hz
Full Load Amps	1.7A
Grease Type	Polyrex EM
Height	10 22/25"
Hp	1 hp
Hz	50/60 Hz
Ins. Class	Class F
Insulation Class	Class F
Ip Code	IP55
Kva Code	No
Kw	0.75 kW
Length	19 1/2"
Length Less Shaft	11 11/16"
Manufacturers Warranty Length	1 yr.
Max. Ambient Temp.	40°C
Max. Rpm	1760 RPM
Motor Application	Washdown
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Frame Material	Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Rigid Base
Motor Orientation	Horizontal
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	Clockwise, Counter Clockwise
Motor Shaft Rotation	Clockwise/Counter Clockwise
Motor Type	Three Phase
Mounting Type	Rigid Base
Nameplate Rpm	1760 RPM
Nema Design	B
No. Of Poles	4
No. Of Speeds	1
Nominal Efficiency	85.5%
Opp. Drive End Bearing Size	6203
Opp. Drive End Bearing Type	Ball
Overall Length	13 11/16"
Packaging	Individual
Phase	3
Power	0.75 kW
Power Factor	68.5
Product Type	Washdown Motor
Resistance Main	12.96 ohms
Rotation	Reversible
Rpm	1700-1800 RPM
Service Factor	1.15
Shaft Dia.	7/8"
Shaft Length	2 1/4"
Shaft Type	T
Standards	Bissc Approved, Ce, Csa Certified, Ul Recognized, Usda Approved
Starting Method	Across The Line
Thermal Protection	No Protection
Type	TF
Usable @ 200v	No
Usable @ 208v	Yes
Voltage	208-230/460V
Weight	40 lbs.
Width	10 11/25"

Shipping Info:

Ship weight (kg)	18
Ship height (cm)	27.64
Ship length (cm)	49.53
Ship width (cm)	26.52
Country of Origin	US

Product Details:

Bearing OPE: 6203
CC Number: EXEMPT
Bearing PE: 6205
Nameplate: 081341
Winding: T634342
GROUP: 3
Paint: WHITE - LEESON (EPOXY)
S. F Amps: 3.6 / 1.8
Eff 100%: 85.5 / 81.5

Product Variants

Model	Voltage	Hp	Finish	Nameplate Rpm	Frame	Full Load Amps	Motor Mounting Type	Ambient Temp.	Price
112429.00	208-230/460V	1/2 hp	Epoxy Coated	1800 RPM	56C	1.9-2/1A	-	40°C	€669.17
112430.00	208-230/460V	3/4 hp	Epoxy Coated	1800 RPM	56C	2.8-2.7/1.4A	-	40°C	€1,690.22
112547.00	208-230/460V	33/100 hp	Unfinished	1725 RPM	56C	1.5-1.7/0.85A	Face, Base	104°F	€723.20
113586.00	208-230/460V	1/2 hp	Epoxy Coated	1725 RPM	56C	1.8A	Face, Base	104°F	€1,045.80
113587.00	208-230/460V	3/4 hp	Epoxy Coated	1725 RPM	56C	1.2A	Face, Base	104°F	€772.43
113590.00	230/460V	1 hp	Epoxy Coated	3450 RPM	56C	1.3A	Face, Base	104°F	€1,047.84
113591.00	230/460V	1 1/2 hp	Epoxy Coated	3450 RPM	-	1.9A	Rigid Base	104°F	€1,342.84
