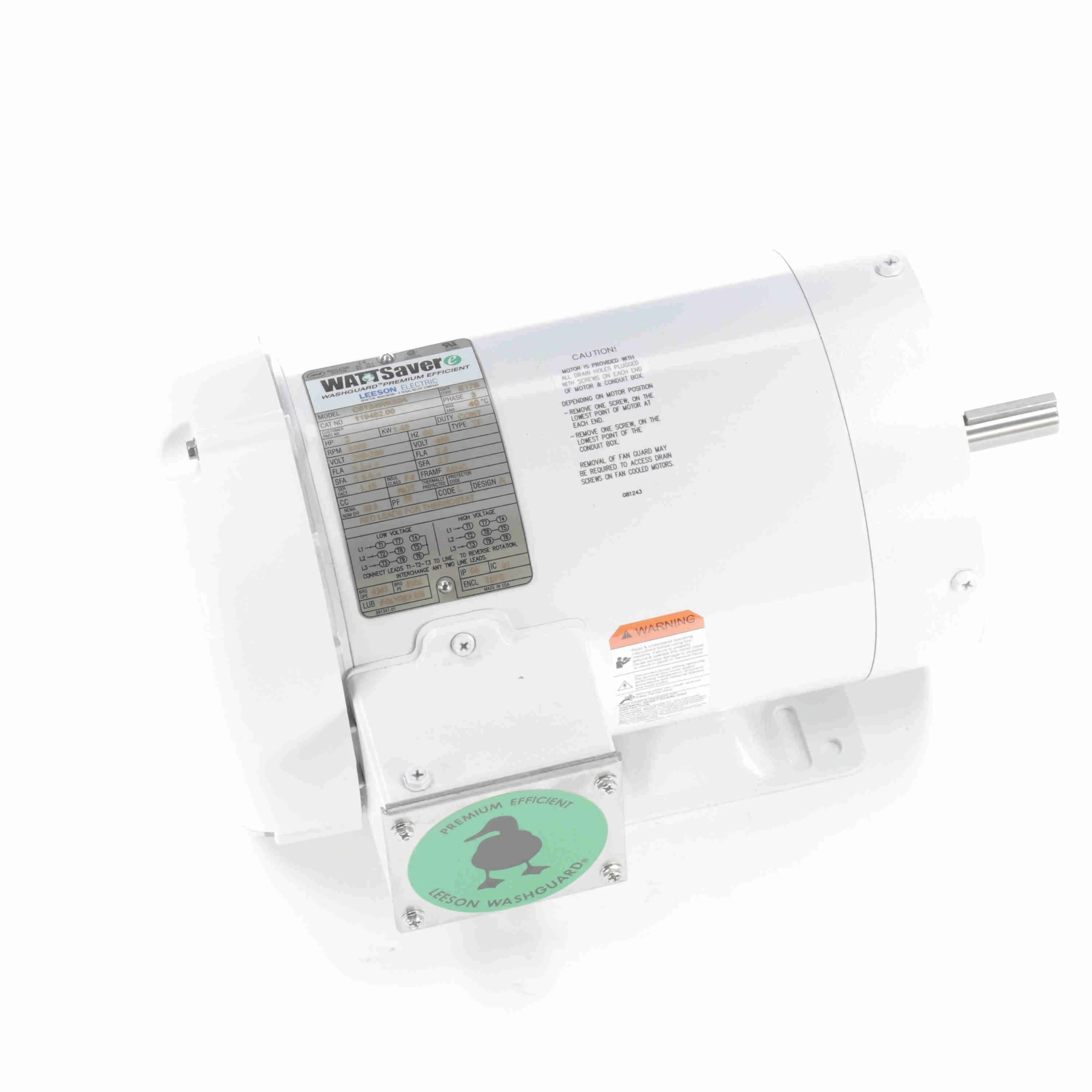

LEESON 119482.00 C6T34WK33A General Purpose Motor, 2 HP, 3 Phase, 60 Hz, 230/460V, 3600 RPM

Item: AJ2RCWModel: 119482.00Cross Ref: 48ZG06 / C6T34WK33A

Check Availability

In Stock

Get it by Tuesday, Dec 23

~~€1,662.49~~

10.00% off

€1,496.24 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Washdown Motor
Ambient Temp.	104°F
Amps	4.8/2.4A
Application	Washdown
Bearing Type	Ball
Body Dia.	7.38"
Bolt Circle Dia.	5 7/8"
Cc Number	CC005A
Code	L
Color	White
Conduit Box Location	Exterior
Design Code	A
Drive End Bearing Size	6205
Drive End Bearing Type	Ball
Duty Cycle	Continuous
Efficiency	85.5%
Electrical Type	Squirrel Cage, Induction Run
Enclosure Type	Tefc
Finish	Epoxy Coated
Frame	56C
Frame Length	7 1/2"
Frame Material	Rolled Steel
Frame Type	56HC
Frequency	60 Hz
Full Load Amps	4.8-5.2/2.4A
Grease Type	Polyrex EM
Height	10 22/25"
Hp	2 hp
Hz	60 Hz
Ins. Class	Class F
Insulation Class	Class F
Ip Code	IP55
Kva Code	L
Kw	1.5 kW
Length	19 1/2"
Length Less Shaft	11 7/16"
Manufacturers Warranty Length	1 yr.
Max. Ambient Temp.	40°C
Max. Rpm	3490 RPM
Motor Application	Washdown
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Frame Material	Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Face, Base
Motor Orientation	Horizontal
Motor Service Factor	1.15
Motor Shaft Rotation	Clockwise, Counter Clockwise
Motor Shaft Rotation	Clockwise/Counter Clockwise
Mounting Type	Rigid Base
Nameplate Rpm	3490 RPM
Nema Design	A
No. Of Poles	2
No. Of Speeds	1
Nominal Efficiency	85.5%
Opp. Drive End Bearing Size	6203
Opp. Drive End Bearing Type	Ball
Overall Length	13 3/8"
Packaging	B
Phase	3
Power	1.49 kW
Power Factor	88
Product Type	Washdown Motor
Removable Base	No
Resistance Main	6.4 ohms
Rotation	Reversible
Rpm	3400-3600 RPM
Service Factor	1.15
Shaft Dia.	5/8"
Shaft Length	2.06"
Shaft Type	NEMA 56
Standards	Bissc, Ce, Csa, Ul
Starting Method	Across The Line
Thermal Protection	Thermostat
Type	TF
Usable @ 200v	No
Usable @ 208v	Yes
Voltage	208-230/460V
Weight	44 lbs.
Width	10 11/25"

Shipping Info:

Ship weight (kg)	19.8
Ship height (cm)	27.64
Ship length (cm)	49.53
Ship width (cm)	26.52
Country of Origin	US

Product Details:

Supersedes Leeson - 113592.00
Eff 100%: 85.5
Bearing OPE: 6203
CC Number: EXEMPT
Bearing PE: 6205
Nameplate: 081341
Winding: T632174
GROUP: 3
Paint: WHITE - LEESON (EPOXY)
S. F Amps: 5.8-5.4 / 2.7

Product Variants

Model	Voltage	Hp	Finish	Nameplate Rpm	Frame	Full Load Amps	Motor Mounting Type	Ambient Temp.	Price
112429.00	208-230/460V	1/2 hp	Epoxy Coated	1800 RPM	56C	1.9-2/1A	-	40°C	€669.17
112430.00	208-230/460V	3/4 hp	Epoxy Coated	1800 RPM	56C	2.8-2.7/1.4A	-	40°C	€1,690.22
112547.00	208-230/460V	33/100 hp	Unfinished	1725 RPM	56C	1.5-1.7/0.85A	Face, Base	104°F	€723.20
113586.00	208-230/460V	1/2 hp	Epoxy Coated	1725 RPM	56C	1.8A	Face, Base	104°F	€1,045.80
113587.00	208-230/460V	3/4 hp	Epoxy Coated	1725 RPM	56C	1.2A	Face, Base	104°F	€772.43
113590.00	230/460V	1 hp	Epoxy Coated	3450 RPM	56C	1.3A	Face, Base	104°F	€1,047.84
113591.00	230/460V	1 1/2 hp	Epoxy Coated	3450 RPM	-	1.9A	Rigid Base	104°F	€1,342.84
