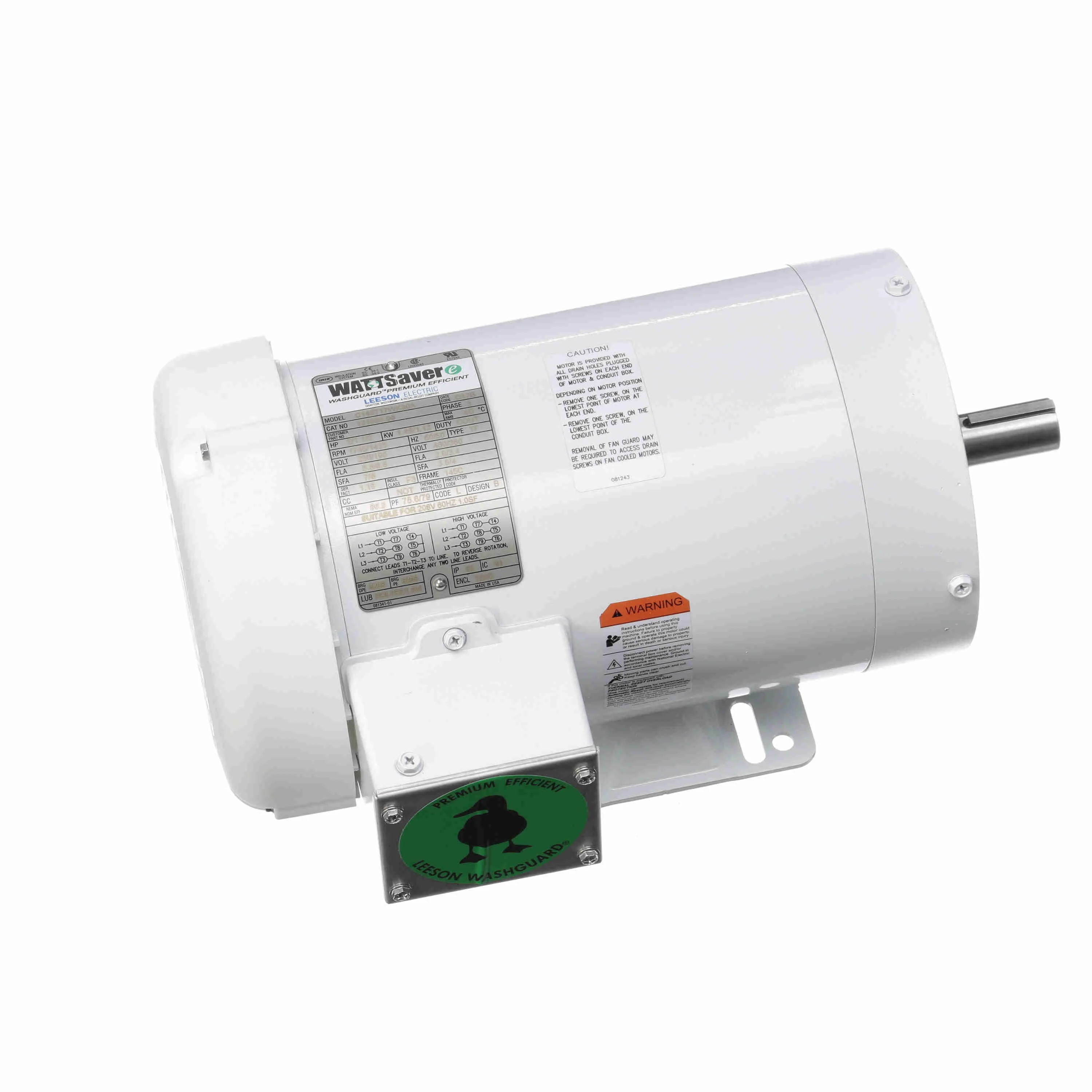

LEESON 121868.00 C145T17WK30A General Purpose Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Monday, Aug 24
5.00% off
€1,520.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 5.8/2.9A |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 7.38" |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC005A |
| Code | L |
| Conduit Box Location | Exterior |
| Design | B |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Efficiency Group | Premium |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Finish | Epoxy Coating |
| Frame | 145TC |
| Frame Length | 8" |
| Frame Material | Rolled Steel |
| Frame Type | 145TC |
| Frequency | 50/60 Hz |
| Frequency | 60 Hz |
| Full Load Amps | 2A |
| Grease Type | Polyrex EM |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Height | 10 22/25" |
| Hp | 2 hp |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 19 1/2" |
| Max. Speed | 1745 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW, CCW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1745 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 15/16" |
| Packaging | B |
| Phase | 3 |
| Power | 1.5 kW |
| Power Factor | 75.6 |
| Resistance Main | 6 ohms |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Speed | 1700-1800 RPM |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 21.65 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 86.5
- Bearing OPE: 6203
- Bearing PE: 6205
- Nameplate: 081341
- Winding: T634340
- GROUP: 3
- Paint: WHITE - LEESON (EPOXY)
- S. F Amps: 7 / 3.5
Product Variants
| Product | Model | Voltage | Frequency | Hp | Shaft Dia. | Finish | Mounting Type | Full Load Amps | Nameplate Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
112429.00 | 208-230/460V | 60 Hz | 1/2 hp | 5/8" | Epoxy Coating | Rigid Base | 1.9-2/1A | 1800 RPM | €669.17 | |
 |
112430.00 | 208-230/460V | 60 Hz | 3/4 hp | 5/8" | Epoxy Coating | Rigid Base | 2.8-2.7/1.4A | 1800 RPM | €1,542.97 | |
 |
112547.00 | 208-230/460V | 60 Hz | 33/100 hp | 5/8" | Unfinished | Rigid Base | 1.5-1.7/0.85A | 1725 RPM | €723.20 | |
 |
113586.00 | 208-230/460V | 60 Hz | 1/2 hp | 5/8" | Epoxy Coating | Rigid Base | 1.8A | 1725 RPM | €1,020.69 | |
 |
113587.00 | 208-230/460V | 60 Hz | 3/4 hp | 5/8" | Epoxy Coating | Rigid Base | 1.2A | 1725 RPM | €772.43 | |
 |
113590.00 | 230/460V | 60 Hz | 1 hp | 5/8" | Epoxy Coating | Rigid Base | 1.3A | 3450 RPM | €1,034.90 | |
 |
113591.00 | 230/460V | 60 Hz | 1 1/2 hp | 5/8" | Epoxy Coating | Rigid Base | 1.9A | 3450 RPM | €1,397.05 |
