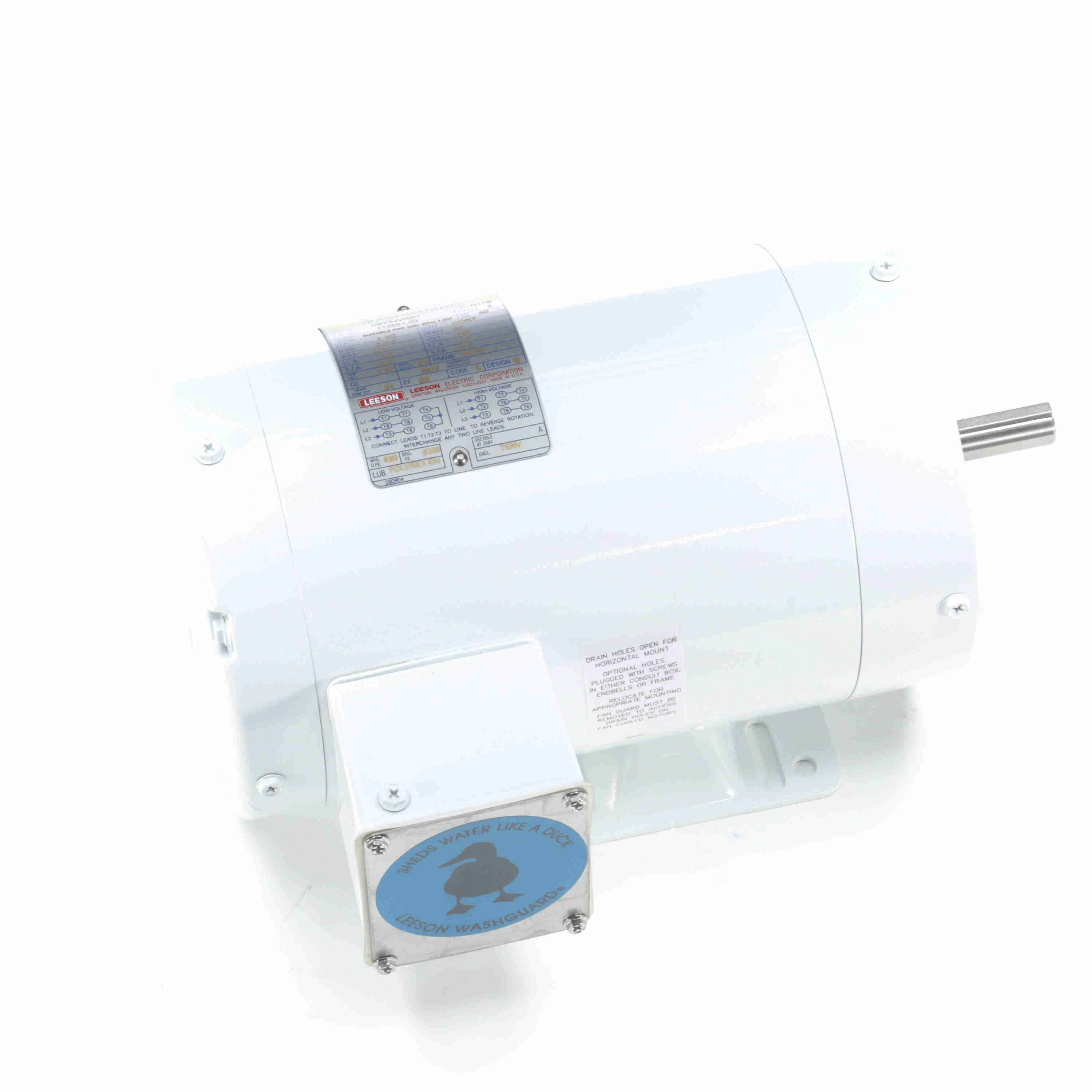

LEESON 113591.00 C6T34VK5H General Purpose Motor, 1.50 HP, 3 Phase, 60 Hz, 230/460V, 3600 RPM
Get it by Wednesday, Dec 24
10.00% off
€1,208.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 3.8/1.9A |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC005A |
| Code | L |
| Color | White |
| Conduit Box Location | Exterior |
| Design | B |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 84% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tenv |
| Finish | Epoxy Coated |
| Frame Length | 7 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56HC |
| Frequency | 60 Hz |
| Full Load Amps | 1.9A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 1/2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | L |
| Kw | 1.1 kW |
| Length | 14 11/25" |
| Length Less Shaft | 10 5/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 3450 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| Nema Design | B |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 84% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 12 9/16" |
| Packaging | B |
| Phase | 3 |
| Power | 1.12 kW |
| Power Factor | 88 |
| Product Type | Washdown Motor |
| Removable Base | No |
| Resistance Main | 8.92 ohms |
| Rotation | Reversible |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Standards | Bissc, Ce, Csa, Ul |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TN |
| Usable @ 208v | No |
| Voltage | 230/460V |
| Weight | 47 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 84
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 080904
- Winding: T632185
- GROUP: 3
- Paint: WHITE - LEESON (EPOXY)
- S. F Amps: 4.2 / 2.1
Product Variants
| Product | Model | Voltage | Hp | Finish | Nameplate Rpm | Frame | Full Load Amps | Motor Mounting Type | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

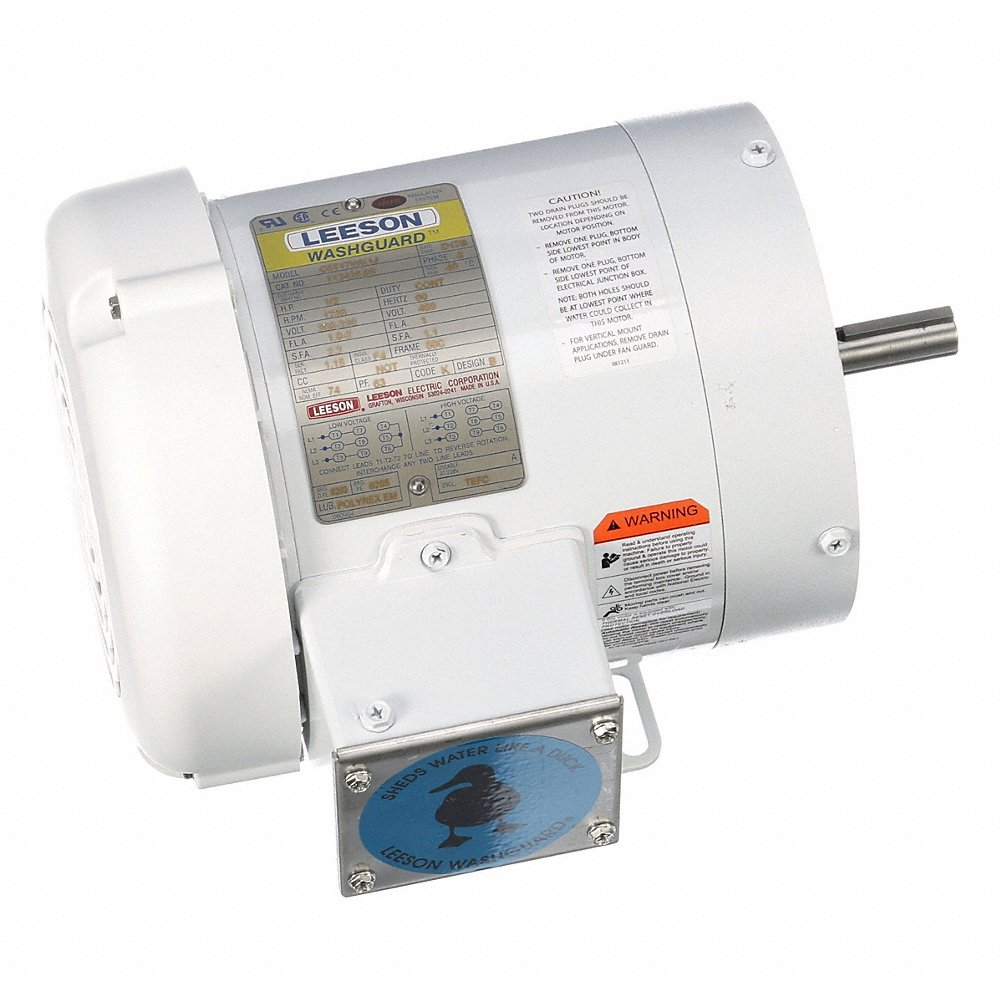

112429.00 | 208-230/460V | 1/2 hp | Epoxy Coated | 1800 RPM | 56C | 1.9-2/1A | - | 40°C | €669.17 | |
 |

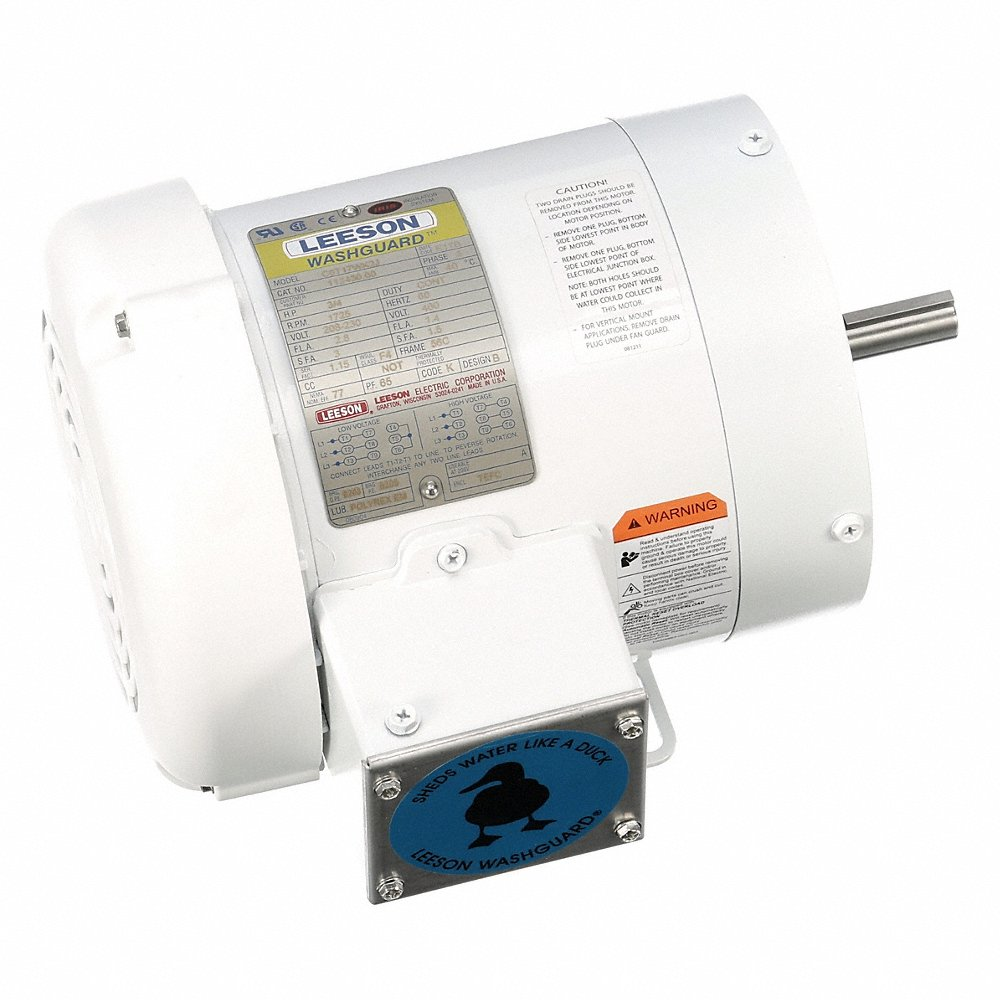

112430.00 | 208-230/460V | 3/4 hp | Epoxy Coated | 1800 RPM | 56C | 2.8-2.7/1.4A | - | 40°C | €1,690.22 | |
 |
112547.00 | 208-230/460V | 33/100 hp | Unfinished | 1725 RPM | 56C | 1.5-1.7/0.85A | Face, Base | 104°F | €723.20 | |
 |
113586.00 | 208-230/460V | 1/2 hp | Epoxy Coated | 1725 RPM | 56C | 1.8A | Face, Base | 104°F | €1,045.80 | |
 |
113587.00 | 208-230/460V | 3/4 hp | Epoxy Coated | 1725 RPM | 56C | 1.2A | Face, Base | 104°F | €772.43 | |
 |

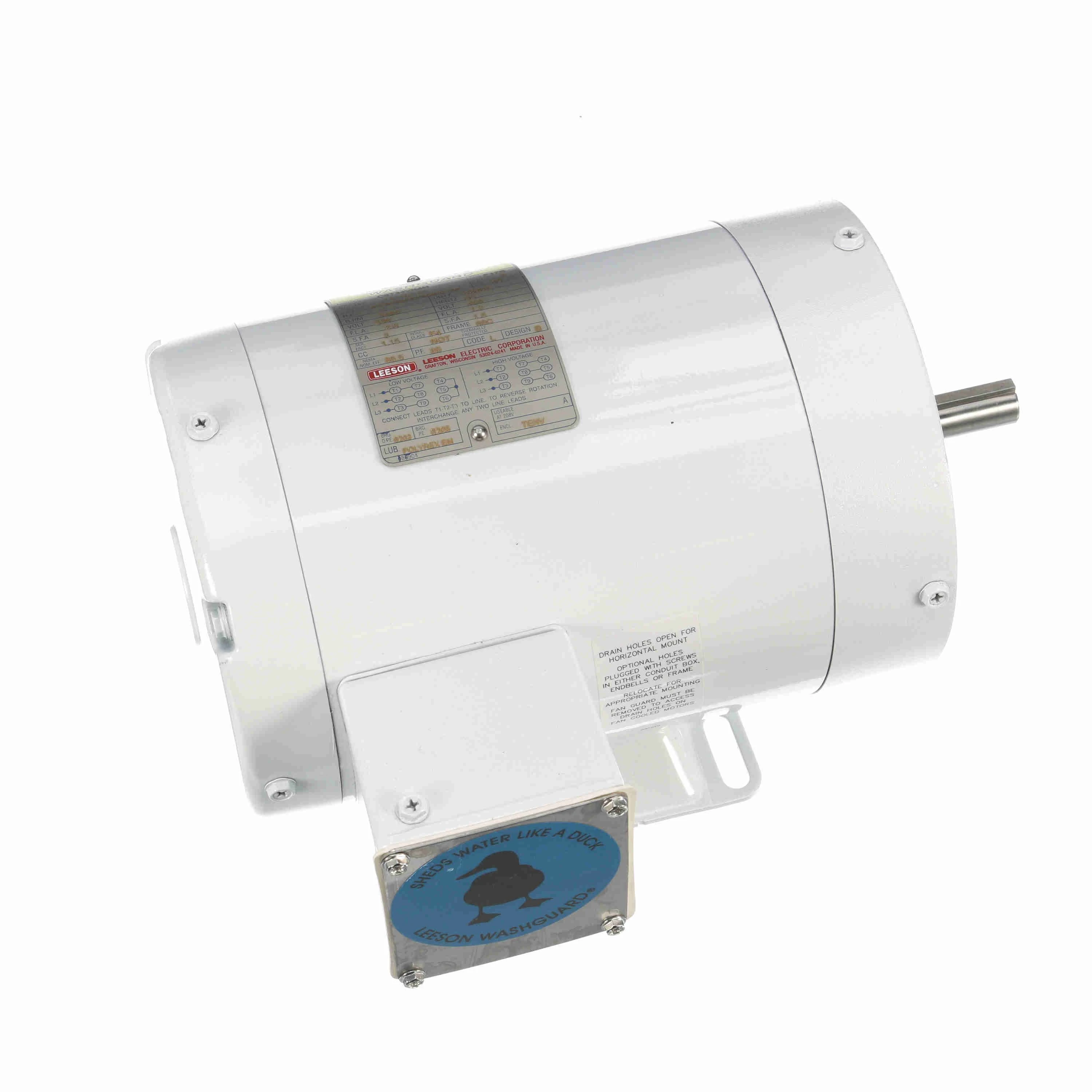

113590.00 | 230/460V | 1 hp | Epoxy Coated | 3450 RPM | 56C | 1.3A | Face, Base | 104°F | €1,047.84 | |
 |

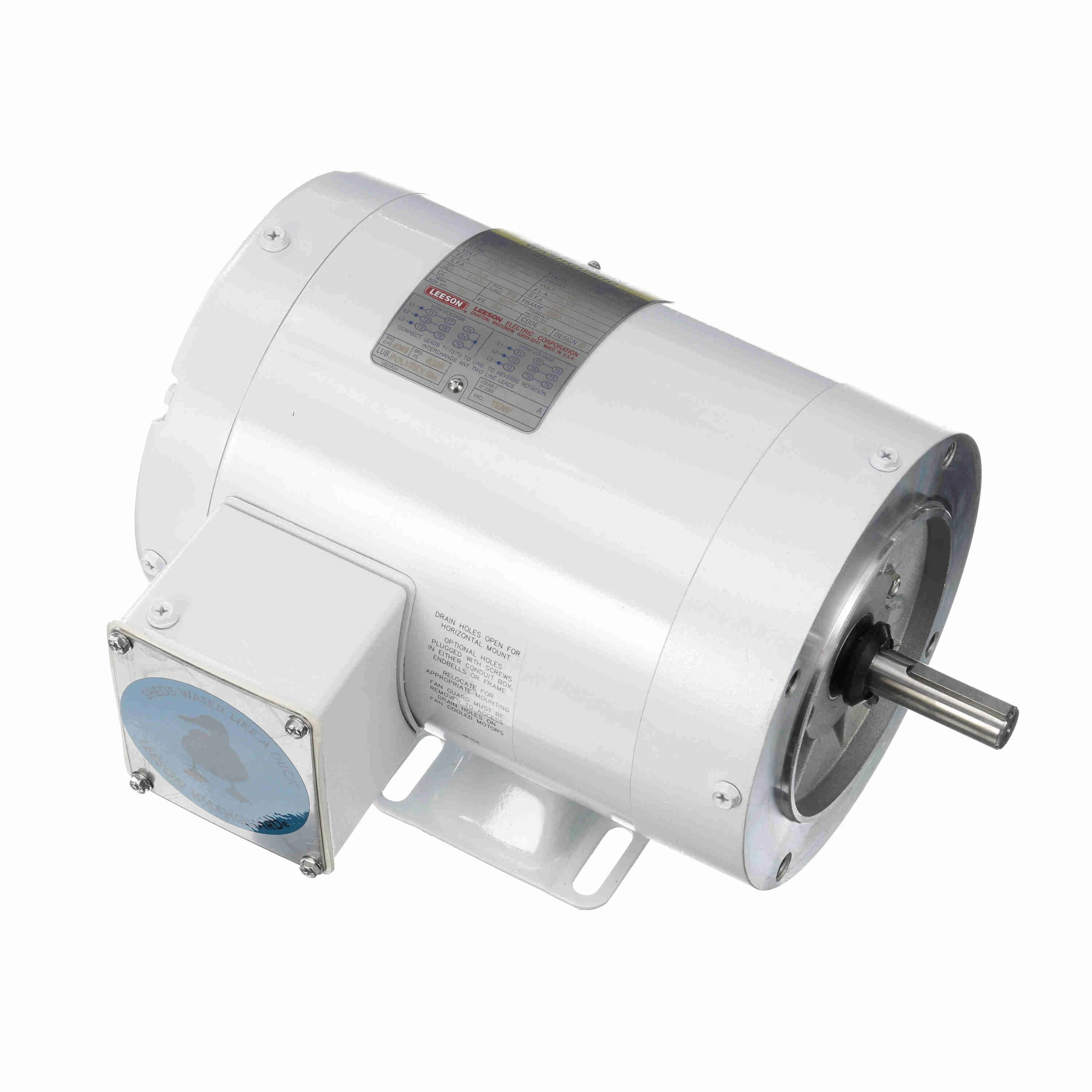

115743.00 | 208-230/460V | 1/2 hp | Epoxy Coated | 1140 RPM | 56C | 2.3/1.2A | Face, Base | 104°F | €1,329.07 |
