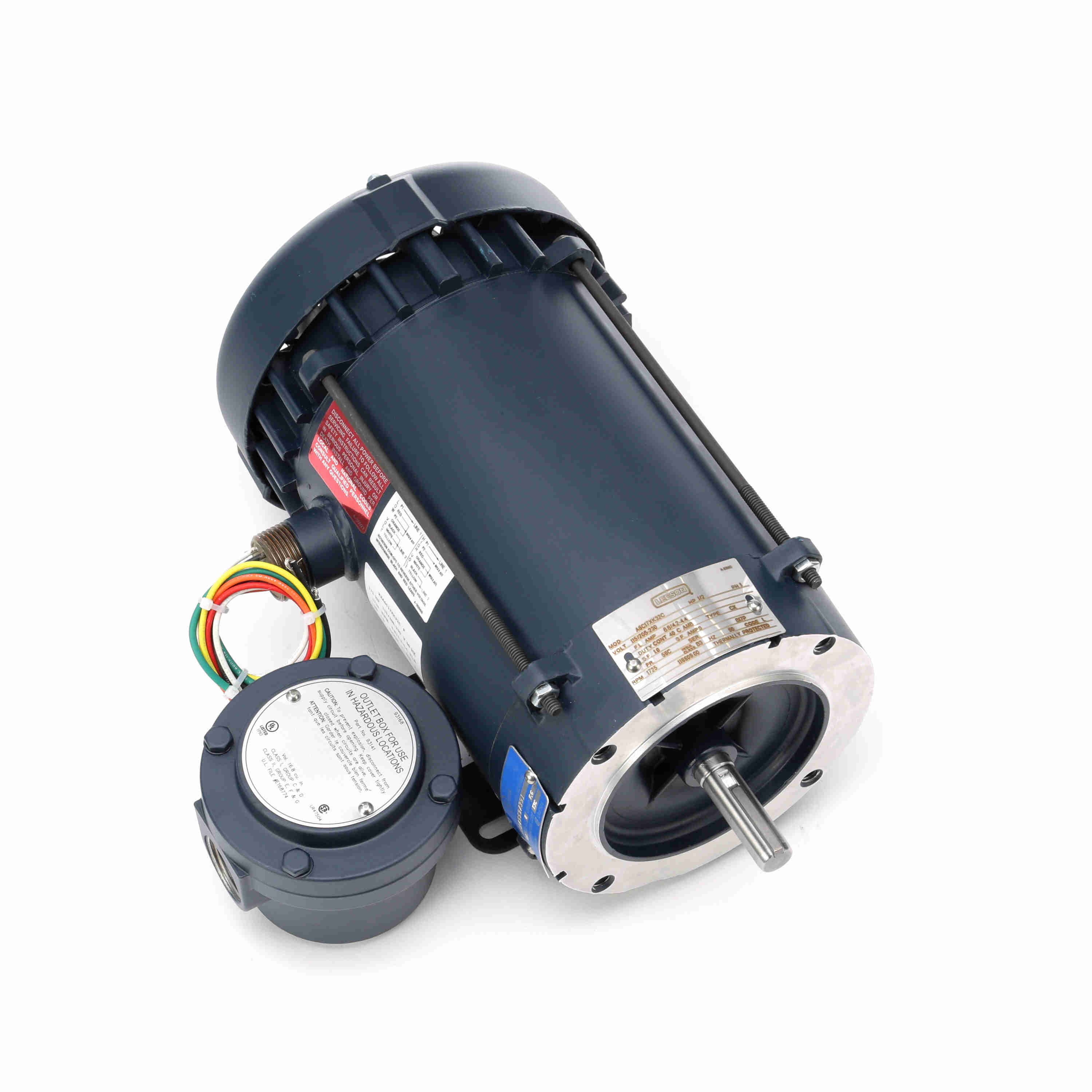

LEESON 116609.00 A6C17XK32C General Purpose Motor | AJ2QTU A6C17XK32C

LEESON 116609.00 6C17XK32C Explosion Proof Motor, 0.50 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM

Item: AJ2QTUModel: 116609.00Cross Ref: 820J63 / 6C17XK32C
Check Availability
In Stock
HP
Frame

Get it by Monday, May 18

€1,682.37
5.00% off
€1,598.25 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Explosion Proof Motor
Ambient Temp. 40°C
Amps 8.8/4.2-4.4A
Assembly A-S90894
Code L
Design N
Design Code No
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 66%
Electrical Type Capacitor Start, Induction Run
Enclosure Type EPFC
Frame 56C
Frame Length 6.81"
Frame Material Rolled Steel
Frame Type 56C
Frequency 60 Hz
Full Load Amps 8.8/4.2-4.4A
Grease Type Polyrex EM
Hazardous Location Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C
Hazardous Location Class 1C, D/2F, G
Height 9 3/25"
Hp 1/2 hp
Insulation Class Class B
Ip Code IP54
Kva Code L
Kw 0.37 kW
Length 16 3/25"
Lubrication Polyrex EM
Max. Rpm 1725 RPM
Motor Mounting Type Rigid Base
Motor Orientation Horizontal
Motor Shaft Rotation Selective Counter Clockwise
Motor Type Capacitor Start/Induction Run
Mounting Type Rigid Base
Nameplate Rpm 1800 RPM
No. Of Poles 4
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Rating 0.37 kW
Packaging B
Phase 1
Power 0.37 kW
Power Factor 58
Product Datasheet leeson-116609-00.pdf
Rpm 1700-1800 RPM
Service Factor 1
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Type NEMA 56
Starting Method Across The Line
Temp. Code T3C
Thermal Protection Automatic
Type CX
Voltage 115/208-230V
Width 10.25"

Shipping Info:

Ship weight (kg) 13.57
Ship height (cm)23.16
Ship length (cm)40.94
Ship width (cm)26.04
Country of OriginMX

Product Details:

    • Eff 100%: 66
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: 080020
    • Winding: ZC404
    • GROUP: 3
    • Paint: BLUE - LEESON (ENAMEL)
