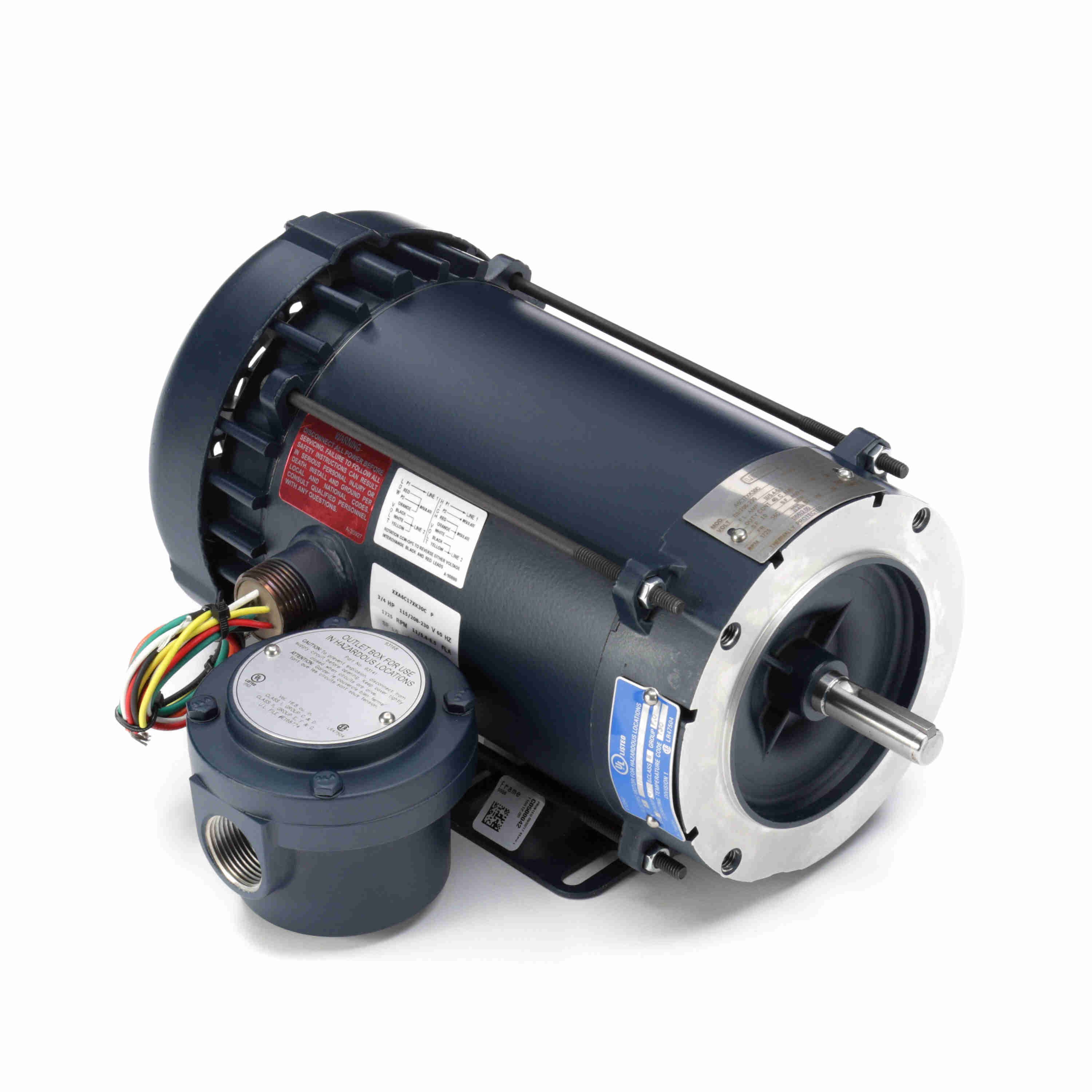

LEESON 116612.00 6C17XK30C Explosion Proof Motor, 0.75 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
Get it by Monday, Apr 6
€1,126.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Amps | 11/5.4-5.5A |
| Assembly | A-S90894 |
| Code | L |
| Design | N |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | EPFC |
| Frame | 56C |
| Frame Length | 7.31" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 11/5.4-5.5A |
| Grease Type | Polyrex EM |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hazardous Location Class | 1C, D/2F, G |
| Height | 12 22/25" |
| Hp | 3/4 hp |
| Insulation Class | Class B |
| Ip Code | IP54 |
| Kva Code | L |
| Kw | 0.56 kW |
| Length | 17.94" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1725 RPM |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Rating | 0.56 kW |
| Packaging | B |
| Phase | 1 |
| Power | 0.56 kW |
| Power Factor | 66.2 |
| Product Datasheet | leeson-116612-00.pdf |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Temp. Code | T3C |
| Thermal Protection | Automatic |
| Type | CX |
| Voltage | 115/208-230V |
| Width | 13.06" |
Shipping Info:
| Ship weight (kg) | 16.2 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 70
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Winding: ZC469
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
Documentation:
