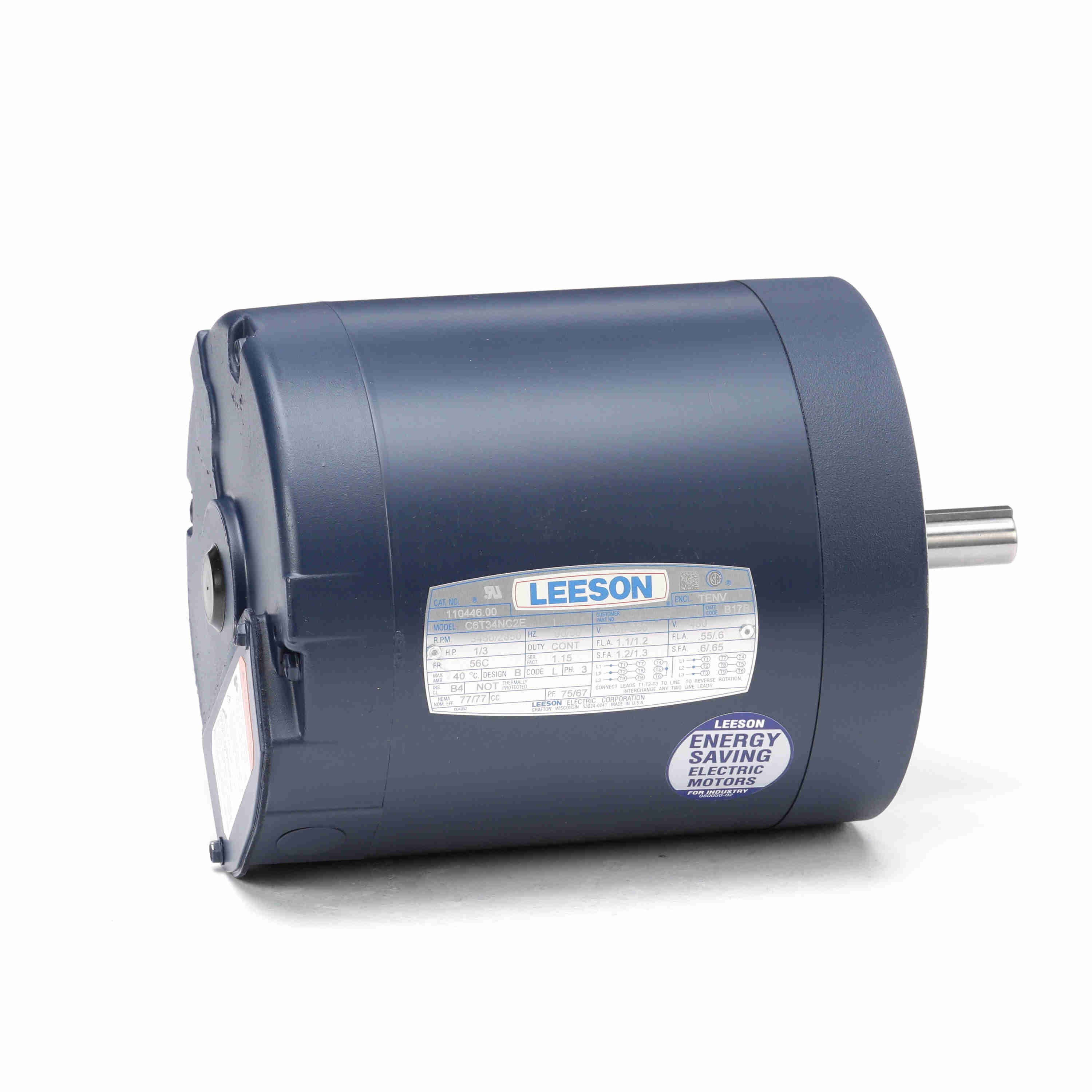

LEESON 110446.00 C6T34NC2E General Purpose Motor 50-60 Hertz | AJ2QDF C6T34NC2E

LEESON 110446.00 C6T34NC2E General Purpose Motor, 0.33 HP, 3 Phase, 60/50 Hz, 230/460/208-230/460V, 3600 and 3000 RPM

Item: AJ2QDFModel: 110446.00Cross Ref: 798KK0 / C6T34NC2E
Check Availability
In Stock
Hp
Nameplate Rpm

Get it by Monday, Dec 22

€388.48 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 104°F
Amps 1.1/0.55A
Bearing Type Ball
Code L
Conduit Box Position F1
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 77%
Electrical Type Squirrel Cage, Induction Run
Enclosure Type Tenv
Frame 56C
Frame Length 5"
Frame Material Rolled Steel
Frame Type 56C
Frequency 60 Hz
Full Load Amps 1.1/0.55A
Grease Type Polyrex EM
Height 10 22/25"
Hp 33/100 hp
Hz 60 Hz
Ins. Class Class B
Insulation Class Class B
Ip Code IP43
Kva Code L
Kw 0.25 kW
Length 14 11/25"
Lubrication Polyrex EM
Max. Ambient Temp. 40°C
Max. Rpm 3450 RPM
Motor Application General Application
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Air Over
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face
Motor Orientation Horizontal
Motor Service Factor 1.15
Motor Shaft Design NEMA 56
Motor Shaft Rotation Reversible
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Type Three Phase
Mounting Type Face
Nameplate Rpm 3450 RPM
Nema Design B
No. Of Poles 2
No. Of Speeds 1
Nominal Efficiency 77%
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 0.246 kW
Overall Length 9 7/8"
Packaging B
Phase 3
Power Factor 75
Removable Base Permanently Lubricated Bearings
Resistance Main 50.4 ohms
Rpm 3400-3600 RPM
Rpm Range 3001-3600 RPM
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Type NEMA 56
Standards Csa, Ul
Starting Method Across The Line
Thermal Protection No Protection
Type TN
Usable @ 208v Yes
Voltage 208-230/460V
Weight 23 lbs.
Width 7.94"

Shipping Info:

Ship weight (kg) 10.35
Ship height (cm)27.64
Ship length (cm)36.68
Ship width (cm)20.17
Country of OriginUS

Product Details:

    • Eff 100%: 77
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: 004002
    • Winding: T632186
    • GROUP: 3
    • Paint: VERIFY
    • S. F Amps: 1.2 / .6

Product Variants

ProductModelVoltageNameplate RpmHpFrequencyFull Load AmpsMounting TypeMotor TypeService FactorPrice
LEESON 101769.00 C4T17FC10B General Purpose Motor | AJ2PMG C4T17FC10B 101769.00208-230/460V1725 RPM33/100 hp60 Hz1.5-1.6/0.8AFaceThree Phase1.15€680.90
LEESON 101780.00 C4T17FC12C General Purpose Motor 50-60 Hertz | AJ2PMK C4T17FC12C 101780.00208-230/460V1800/1500 RPM1/2 hp60 Hz1.8/0.9AC Face, FootlessSquirrel Cage Induction Run1.15€604.30
LEESON 101981.00 C4T17FC19C General Purpose Motor | AJ2PMQ C4T17FC19C 101981.00208-230V1800 RPM1/4 hp60 Hz1.2-1.4/0.7ARigid BaseSquirrel Cage Induction Run1.15€383.09
LEESON 102860.00 C4T17FC40A General Purpose Motor | AJ2PNV C4T17FC40A 102860.00208-230/460V1725 RPM1/2 hp60 Hz1.9-2/1AFaceThree Phase1.15€469.95
LEESON 102863.00 C4T17NC47A General Purpose Motor | AJ2PNY C4T17NC47A 102863.00208-230/460V1800 RPM33/100 hp60 Hz1.3/0.65AC Face, FootlessSquirrel Cage Induction Run1.15€413.30
LEESON 110047.00 C6T17FC1G General Purpose Motor | AJ2PZX C6T17FC1G 110047.00208-230/460V1725 RPM3/4 hp60 Hz2.8/1.4AFaceSquirrel Cage Induction Run1.15€507.71
LEESON 110144.00 C6T34NC1E General Purpose Motor | AJ2QAR C6T34NC1E 110144.00208-230/460V3600 RPM1/2 hp60 Hz1.7-1.6/0.8AC Face, FootlessSquirrel Cage Induction Run1.15€481.82
