LEESON 100824.00 A4P11NR2G Agricultural Motor, 0.25 HP, 1 Phase, 60 Hz, 115/230V, 1200 RPM
Get it by Friday, Dec 19
€103.95 /unit
This product can only be shipped in multiples of 60Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Amps | 2.8/1.4A |
| Assembly | LO100824 |
| Code | D |
| Design | D, N |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 66% |
| Electrical Type | Permanent Split Capacitor |
| Enclosure Type | Teao |
| Frame | 48Z |
| Frame Length | 5 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 48Z |
| Frequency | 60 Hz |
| Full Load Amps | 2.8/1.4A |
| Height | 8 3/4" |
| Hp | 1/4 hp |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | D |
| Kw | 0.19 kW |
| Length | 13 3/4" |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Type | Resilient Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1075 RPM |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.187 kW |
| Phase | 1 |
| Power | 0.187 kW |
| Power Factor | 92 |
| Rpm | 1075 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 1/4" |
| Shaft Type | Single Special Extension |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Type | PN |
| Voltage | 115-230V |
| Width | 7 22/25" |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 66
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Winding: PE4862009
- GROUP: 3
- Paint: GRAY - LIGHT
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Service Factor | Nameplate Rpm | Frame | Shaft Dia. | Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100768.00 | 115-230V | 1/2 hp | 4.4/2.2A | 1 | 1625 RPM | S56 | 5/8" | 75% | €747.92 | |
 |
100805.00 | 115-230V | 1/4 hp | 2.8/1.4A | 1 | 1075 RPM | S56Z | 5/8" | 66% | €108.87 | |
 |
111321.00 | 115-230V | 1/2 hp | 6/3A | 1 | 1075 RPM | 56HZ | 5/8" | 62% | €496.64 | |
 |
111322.00 | 115-230V | 3/4 hp | 4/8A | 1 | 1075 RPM | 56HZ | 5/8" | 70% | €1,046.65 | |
 |

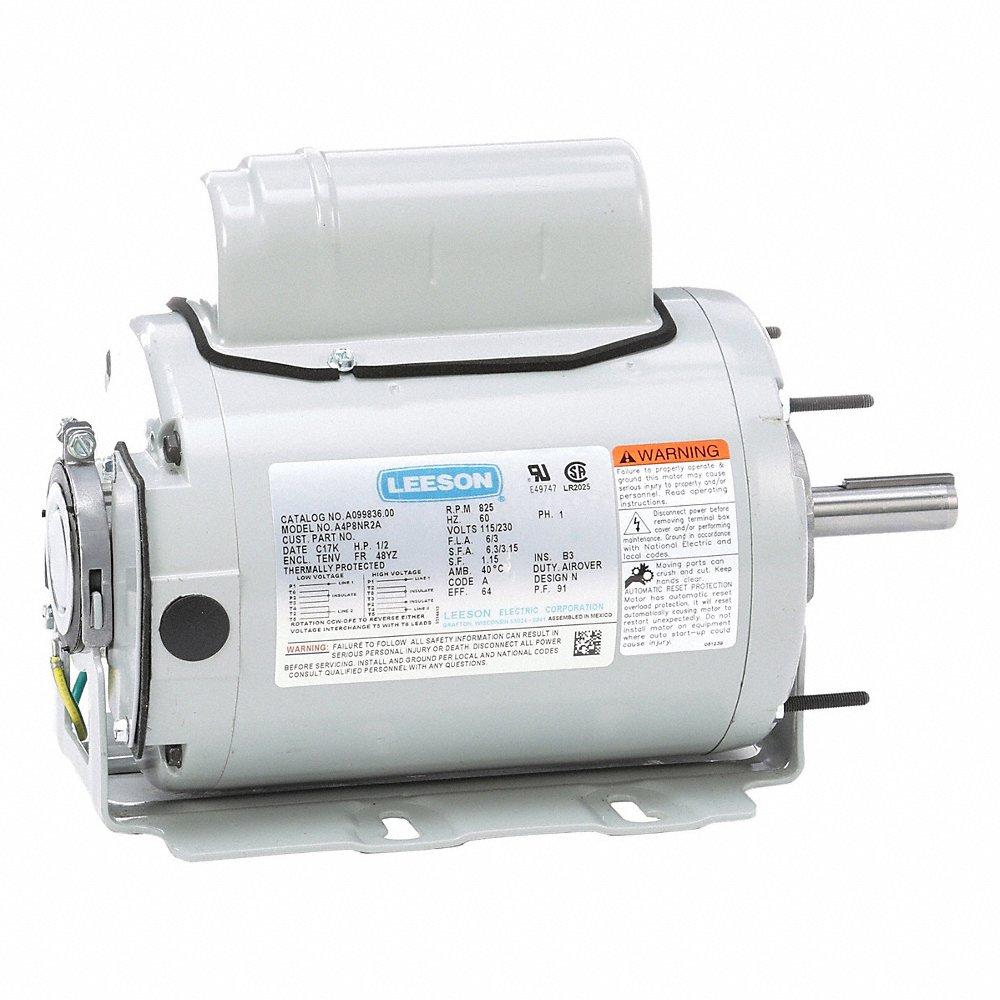

A099836.00 | 115/230V AC | 1/2 hp | 6/3A | 1.15 | - | 48YZ | 5/8" | 64% | €468.03 |
