MARTIN SPROCKET Stock Bore B Type Roller Chain Sprockets, 41 Chain Number
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1| Style | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 41B6 | 1" | 6 | 7/8" | 0.656" | 3/8" | 1 1/2" | 1 1/2" | 13/16" | €21.38 | |
| B | 41B9 | 1.462" | 9 | 7/8" | 1 1/8" | 1/2" | 1 15/16" | 1 15/16" | 15/16" | €23.84 | |
| C | 41B10 | 1.618" | 10 | 7/8" | 1 1/4" | 1/2" | 1 15/16" | 1 15/16" | 15/16" | €24.93 | |
| D | 41B11 | 1.775" | 11 | 7/8" | 1 3/8" | 1/2" | 2 9/16" | 2 9/16" | 15/16" | €25.49 | |
| E | 41B12 | 1.932" | 12 | 7/8" | 1.593" | 1/2" | 2 9/16" | 2 9/16" | 15/16" | €26.85 | |
| F | 41B7 | 1.1524" | 7 | 7/8" | 3/4" | 3/8" to 3/8" | 1 15/16" | 1 15/16" | 15/16" | €21.93 | |
| G | 41B8 | 1.3066" | 8 | 7/8" | 0.984" | 1/2" | 1 15/16" | 1 15/16" | 15/16" | €23.02 | |
| H | 41B13 | 2.089" | 13 | 7/8" | 1.563" | 1/2" | 2 9/16" | 2 9/16" | 15/16" | €27.97 | |
| I | 41B14 | 2.247" | 14 | 7/8" | 1.688" | 1/2" | 2 9/16" | 2 9/16" | 15/16" | €28.78 | |
| J | 41B15 | 2.405" | 15 | 7/8" | 1.815" | 1/2" | 2 7/8" | 2 7/8" | 15/16" | €29.88 | |
| K | 41B16 | 2.563" | 16 | 7/8" | 2" | 5/8" | 2 7/8" | 2 7/8" | 15/16" | €29.88 | |

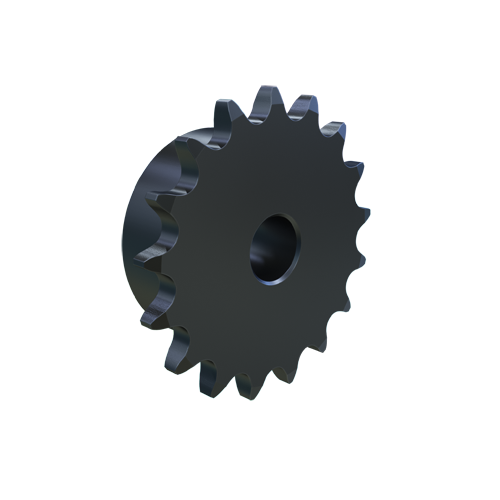

| L | 41B17 | 2.721" | 17 | 1" | 2 1/8" | 5/8" | 3 1/4" | 3 1/4" | 1 1/16" | €33.41 | |

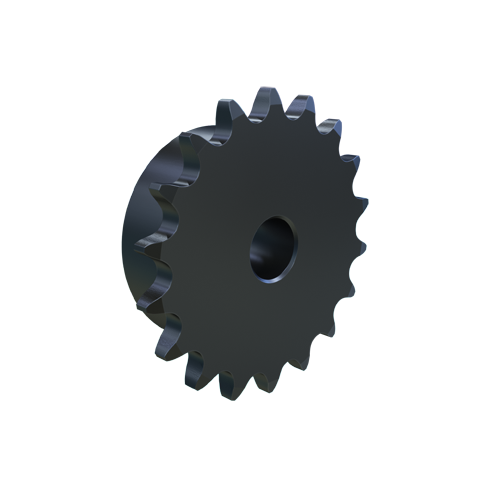

| M | 41B18 | 2.879" | 18 | 1" | 2.312" | 5/8" | 3 1/4" | 3 1/4" | 1 1/16" | €37.25 | |
| N | 41B19 | 3.038" | 19 | 1" | 2 1/2" | 5/8" | 3 5/8" | 3 5/8" | 1 1/16" | €42.75 | |
| O | 41B20 | 3.196" | 20 | 1" | 2 5/8" | 5/8" | 3 5/8" | 3 5/8" | 1 1/16" | €48.24 | |
| P | 41B21 | 3.355" | 21 | 1" | 2 3/4" | 5/8" | 4 5/16" | 4 5/16" | 1 1/16" | €55.36 | |
| Q | 41B22 | 3.513" | 22 | 1" | 2 7/8" | 5/8" | 4 5/16" | 4 5/16" | 1 1/16" | €59.73 | |
| R | 41B23 | 3.672" | 23 | 1" | 3" | 5/8" to 2 1/4" | 4 5/16" | 4 5/16" | 1 1/16" | €67.14 | |
| S | 41B24 | 3.831" | 24 | 1" | 3 1/4" | 5/8" to 2 1/4" | 4 5/16" | 4 5/16" | 1 1/16" | €70.71 | |
| T | 41B25 | 3.989" | 25 | 1" | 3 1/4" | 5/8" | 4 5/16" | 4 5/16" | 1 1/16" | €74.28 | |
| U | 41B26 | 4.148" | 26 | 1" | 3 1/4" | 5/8" | 4.42" | 4.42" | 1" | €78.13 | |
| V | 41B27 | 4.307" | 27 | 1" | 3 1/4" | 5/8" to 2 1/4" | 4.58" | 4.58" | 1" | €83.04 | |
| W | 41B28 | 4.466" | 28 | 1" | 3 1/4" | 5/8" | 4.74" | 4.74" | 1" | €84.69 | |
| X | 41B30 | 4.783" | 30 | 1" | 3 1/4" | 5/8" | 5 1/4" | 5 1/4" | 1 1/8" | €87.15 | |
| Y | 41B32 | 5.101" | 32 | 1" | 3 1/4" | 5/8" to 2 1/4" | 5.38" | 5.38" | 1" | €89.07 | |
| Z | 41B35 | 5.578" | 35 | 1" | 3 1/4" | 5/8" to 2 3/8" | 5.86" | 5.86" | 1" | €89.13 | |

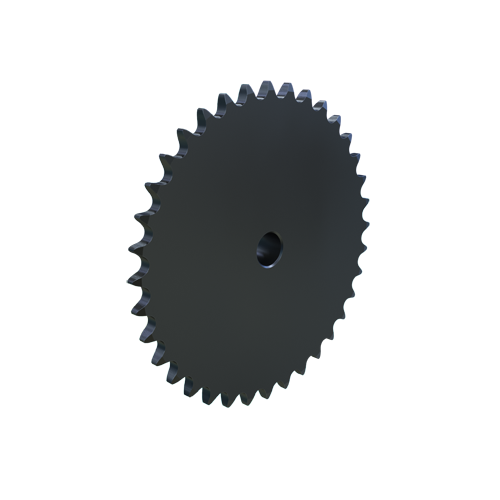

| A1 | 41B36 | 5.737" | 36 | 1" | 3 1/4" | 5/8" | 6.02" | 6.02" | 1" | €90.70 | |
| B1 | 41B40 | 6.373" | 40 | 1 1/16" | 3 1/4" | 3/4" to 2 3/8" | 6.65" | 6.65" | 1 1/16" | €94.33 | |
| C1 | 41B42 | 6.6907" | 42 | 1 1/16" | 3 1/2" | 3/4" to 2 3/8" | 6.97" | 6.97" | 1 1/16" | €97.71 | |
| D1 | 41B45 | 7.168" | 45 | 1 1/16" | 3 1/2" | 3/4" to 2 3/8" | 7.45" | 7.45" | 1 1/16" | €97.98 | |
| E1 | 41B48 | 7.6449" | 48 | 1 1/16" | 3 1/2" | 3/4" to 2 3/8" | 7.93" | 7.93" | 1 1/16" | €101.23 | |
| F1 | 41B54 | 8.5992" | 54 | 1 1/16" | 3 1/2" | 3/4" to 2 3/8" | 8 22/25" | 8 22/25" | 1 1/16" | €107.78 | |
| G1 | 41B60 | 9.5537" | 60 | 1 1/16" | 3 1/2" | 3/4" to 2 3/8" | 9 21/25" | 9 21/25" | 1 1/16" | €113.55 | |
| H1 | 41B72 | 11.463" | 72 | 1.188" | 4" | 3/4" | 11 3/4" | 11 3/4" | 1 3/16" | €124.79 | |
| I1 | 41B70 | 11.1446" | 70 | 1 3/16" | 4" | 3/4" to 2 3/4" | 11.43" | 11.43" | 1 3/16" | €127.88 | |
| J1 | 41B80 | 12.736" | 80 | 1 3/16" | 4" | 3/4" to 2 3/4" | 13.03" | 13.03" | 1 3/16" | €119.50 | |
| K1 | 41B84 | 13.3721" | 84 | 1 3/16" | 4" | 3/4" to 2 3/4" | 13.66" | 13.66" | 1 3/16" | €124.64 | |
| L1 | 41B96 | 15.282" | 96 | 1 3/16" | 4" | 1" to 2 3/4" | 15.57" | 15.57" | 1 3/16" | €171.57 | |
| M1 | 41B112 | 17.8277" | 112 | 1 3/16" | 4" | 1" to 2 3/4" | 18 3/25" | 18 3/25" | 1 3/16" | €235.03 |
