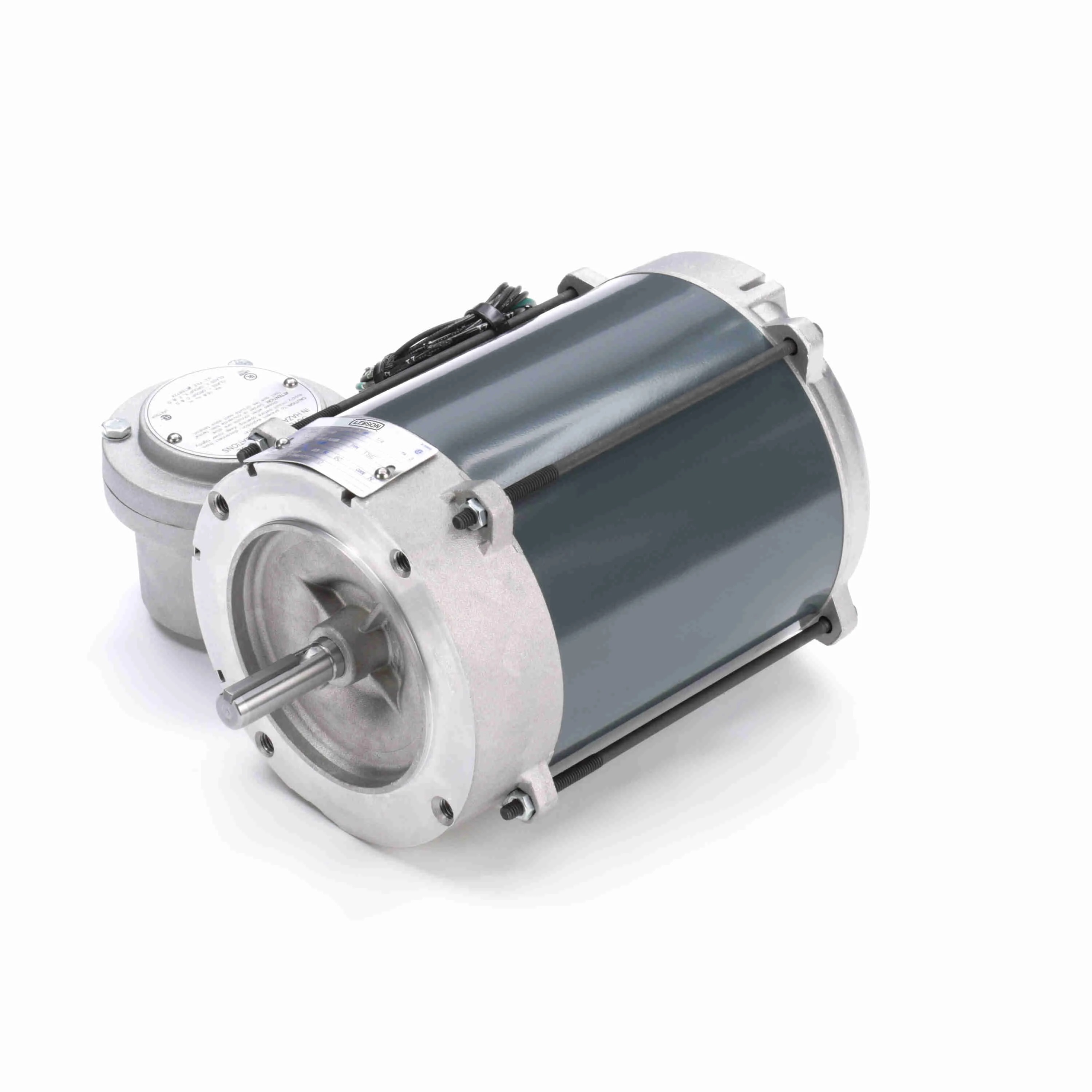

LEESON 056T17E5310 56T17E5310D / G827 Explosion Proof Motor, 0.25 HP, 3 Phase, 60 Hz, 230/460 V, 1800 RPM
Get it by Thursday, May 21
5.00% off
€679.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Explosion Proof Motor |
| Ambient (c) | 40 |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 75% |
| Enclosure Type | Explosion Proof Non Ventilated |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.10-1.1/0.55A |
| Hazardous Location Class | 1 C, D / 2 F, G |
| Hazardous Location Division | Division 1 |
| Hp | 1/4 hp |
| Includes | Conduit Box (Unmounted), (13) 18 In Leads Through 1 NPT Nipple |
| Insulation Class | Class B |
| Length Less Shaft | 9 15/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Motor Type | Three Phase |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1725 RPM |
| Nema Design | B |
| Nominal Efficiency | 75% |
| Number Of Speeds | 1 |
| Output Rating | 0.187 kW |
| Overall Length | 12" |
| Phase | 3 |
| Power | 0.187 kW |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501514040 |
| Country of Origin | MX |
Product Details:
- Starting Type: ACROSS THE LINE
- KVA Code: N
- Drive End Bearing: BALL
- IP Code: 54
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Frame | Nameplate Rpm | Phase | Motor Application | Motor Mounting Type | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056H17E5301 | 230/460V AC | 1/4 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €919.47 | |
 |
056H17E5302 | 230/460V AC | 1/3 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €1,078.24 | |
 |
056H17E5303 | 230/460V AC | 1/2 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €1,371.25 | |
 |
056H17E5304 | 230/460V AC | 3/4 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €1,287.06 | |
 |
056H17E5305 | 230/460V AC | 1 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €1,409.55 | |
 |
118015.00 | 90V | 33/100 hp | 56C | 1750 RPM | - | Hazardous Location | Face, Base | Auto | €5,029.70 | |
 |
118016.00 | 90V | 1/2 hp | 56C | 1750 RPM | - | Hazardous Location | Face, Base | Auto | €4,540.55 |
