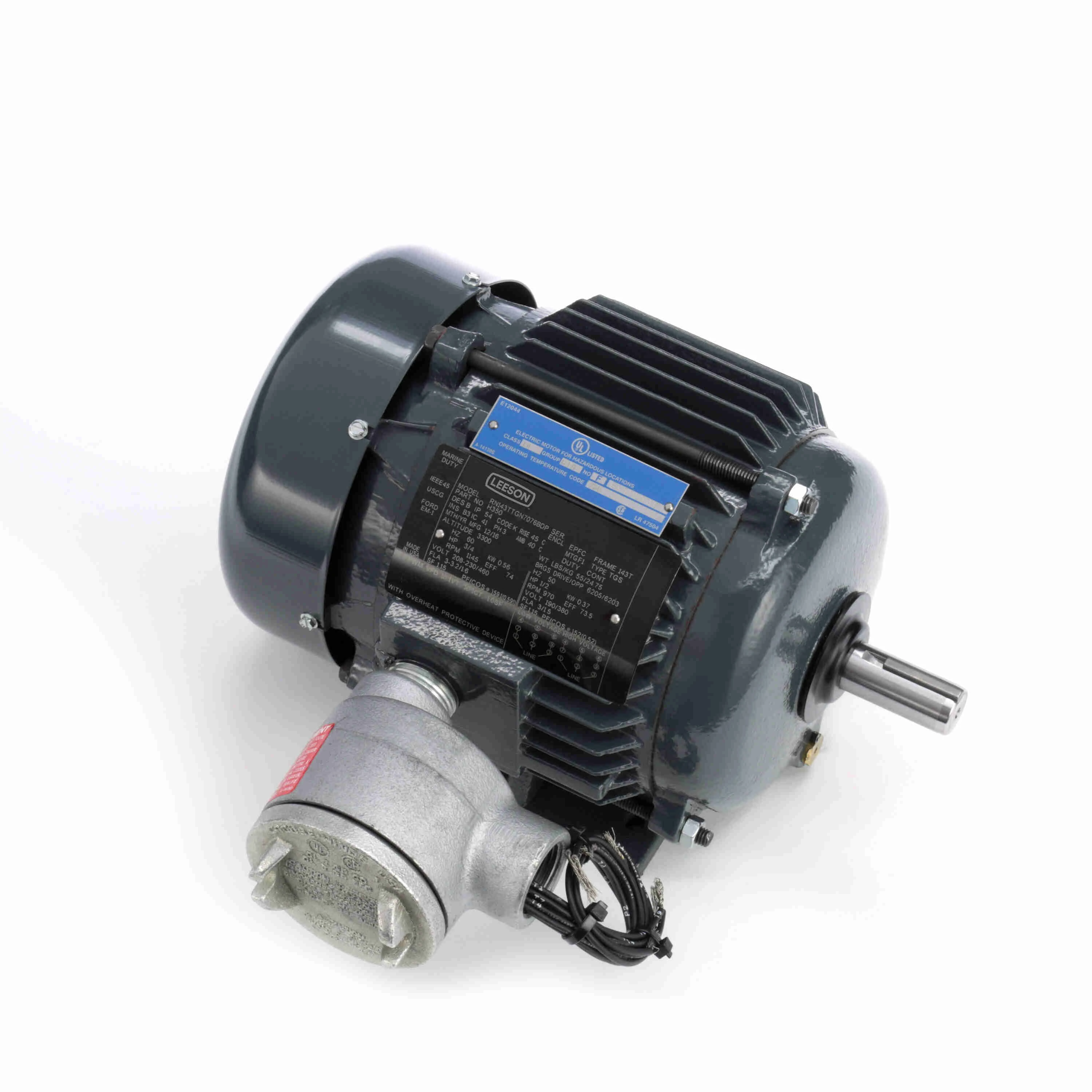

LEESON 143TTGN7076 143TTGN7076BD / H350 Explosion Proof Motor, 0.75/0.50 HP, 3 Phase, 60/50 Hz, 1200/1000 RPM, 143T Frame
Get it by Monday, Aug 17
€984.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Ambient | 40 |
| Drive End Bearing Size | 6205 |
| Duty Cycle | Continuous |
| Enclosure | EPFC |
| Fl Amps | 3/1.5A |
| Frame | 143T |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Kva Code | K |
| Mounting | Rigid |
| Nema Design | B |
| Opposite End Bearing Size | 6203 |
| Orientation | Horizontal |
| Phase | 3 |
| Sf | 1.15 |
| Speed | 1000 RPM |
| Starting Type | Line Or Inverter |
| Voltage | 190/380V |
Shipping Info:
| Ship weight (kg) | 24.75 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 40.16 |
| Ship width (cm) | 36.35 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Voltage | Frame | Phase | Motor Application | Motor Mounting Type | Motor Thermal Protection | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056H17E5301 | 1/4 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €919.47 | |
 |
056H17E5302 | 1/3 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,078.24 | |
 |
056H17E5303 | 1/2 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,452.07 | |
 |
056H17E5304 | 3/4 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,287.06 | |
 |
056H17E5305 | 1 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,409.55 | |
 |
118015.00 | 33/100 hp | 90V | 56C | - | Hazardous Location | Face, Base | Auto | Permanent Magnet Dc | €5,029.70 | |
 |
118016.00 | 1/2 hp | 90V | 56C | - | Hazardous Location | Face, Base | Auto | Permanent Magnet Dc | €4,540.55 |
