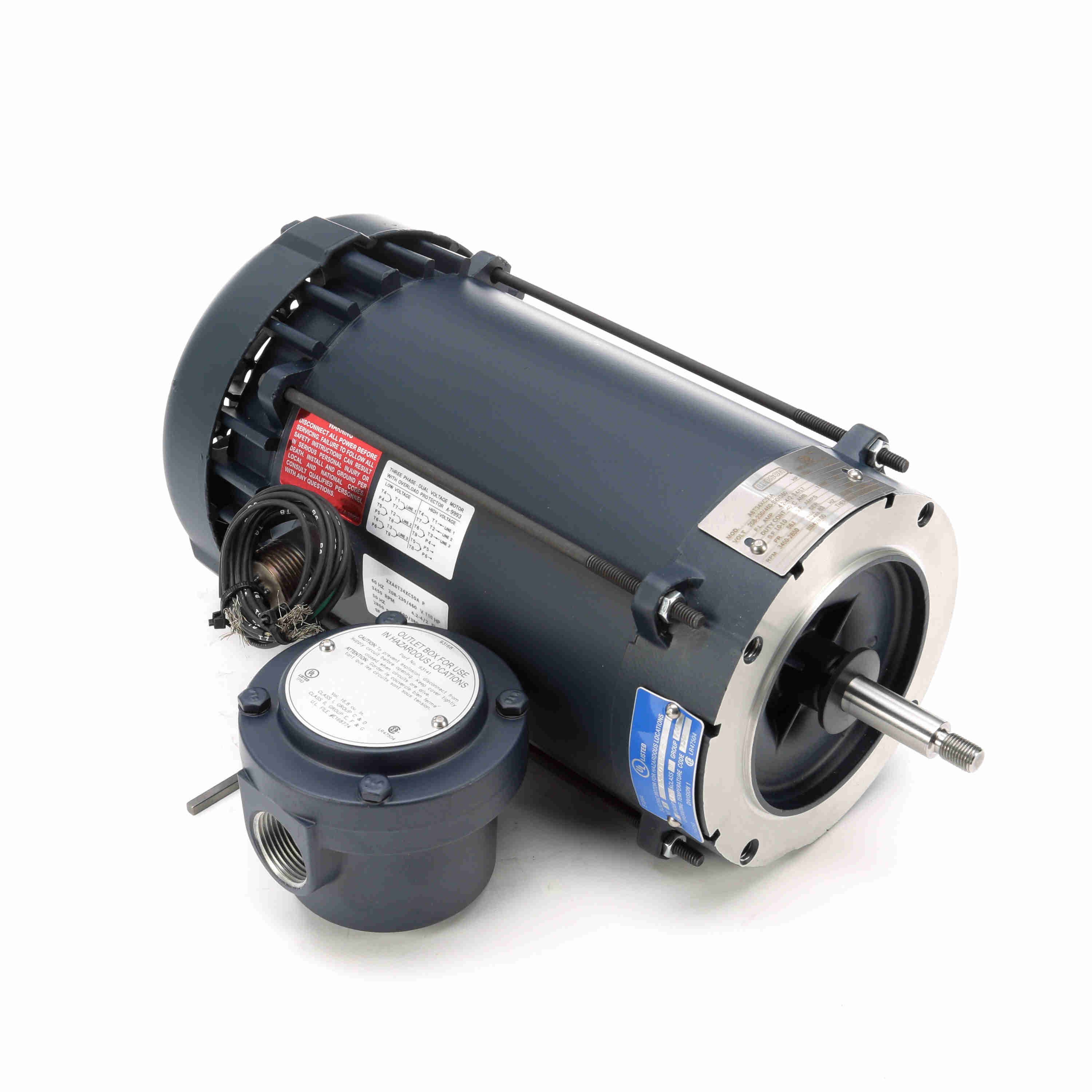

LEESON 119429.00 6T34XC50A Explosion Proof Motor, 1.50/1 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 3600 RPM
Get it by Wednesday, Dec 24
10.00% off
€1,783.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Amps | 4-4.2/2A |
| Code | M |
| Conduit Box Position | F1 |
| Design | B |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 84% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | EPFC |
| Frame | 56J |
| Frame Length | 7.81" |
| Frame Material | Rolled Steel |
| Frame Type | 56J |
| Frequency | 60 Hz |
| Full Load Amps | 4.2-4/2A |
| Grease Type | Polyrex EM |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hazardous Location Class | 1C, D/2F, G |
| Height | 9 3/25" |
| Hp | 1 1/2 hp |
| Insulation Class | Class B |
| Ip Code | IP54 |
| Kva Code | M |
| Kw | 1.1 kW |
| Length | 16 3/25" |
| Lubrication | Polyrex EM |
| Max. Rpm | 3450 RPM |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Round |
| Nameplate Rpm | 3600/3000 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Rating | 0.75 kW |
| Packaging | F |
| Phase | 3 |
| Power | 0.75 kW |
| Power Factor | 83.5 |
| Resistance Main | 9.27 ohms |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 11/25" |
| Shaft Type | J |
| Starting Method | Across The Line |
| Temp. Code | T3C |
| Thermal Protection | Automatic |
| Type | TX |
| Voltage | 208-230/460V |
| Width | 10.25" |
Shipping Info:
| Ship weight (kg) | 19.35 |
| Ship height (cm) | 23.16 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
Product Details:
- Supersedes Leeson - 116182.00 / A6T34XC30D
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: A-91618
- Winding: ZT2141
- GROUP: 1
- Paint: BLUE (POWDER)
- Eff 100%: 84 / 85.5
Product Variants
| Product | Model | Voltage | Hp | Frame | Nameplate Rpm | Service Factor | Design | Thermal Protection | Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
111933.00 | 208-230/460V | 1/2 hp | 56C | 3600/3000 RPM | 1 | B | Automatic | 1.6/0.8A | €1,024.61 | |
 |
111936.00 | 208-230/460V | 3/4 hp | 56C | 3600/3000 RPM | 1 | B | Automatic | 3-3.2/1.6A | €1,494.55 | |
 |
111944.00 | 208-230/460V | 33/100 hp | 56C | - | 1 | B | Automatic | 1.1/0.65A | €1,502.69 | |
 |
116187.00 | 208-230/460V AC | 1/2 hp, 1/3 hp | 56J | 3600/3000 RPM | 1 | B | Automatic | 1.6/0.8A | - | RFQ
|
 |
117852.00 | 208-230/460V | 1/2 hp | 56C | 1800/1500 RPM | 1 | B | Thermostat | 1.8-1.6/0.8A | €1,103.92 | |
 |
117853.00 | 208-230/460V | 3/4 hp | 56C | 1800/1500 RPM | 1 | B | Thermostat | 2.9-3/1.5A | €1,122.27 | |
 |
119422.00 | 230/460V | 1 hp | 56C | 3600/3000 RPM | 1 | B | Automatic | 3/1.5A | €1,958.86 |
