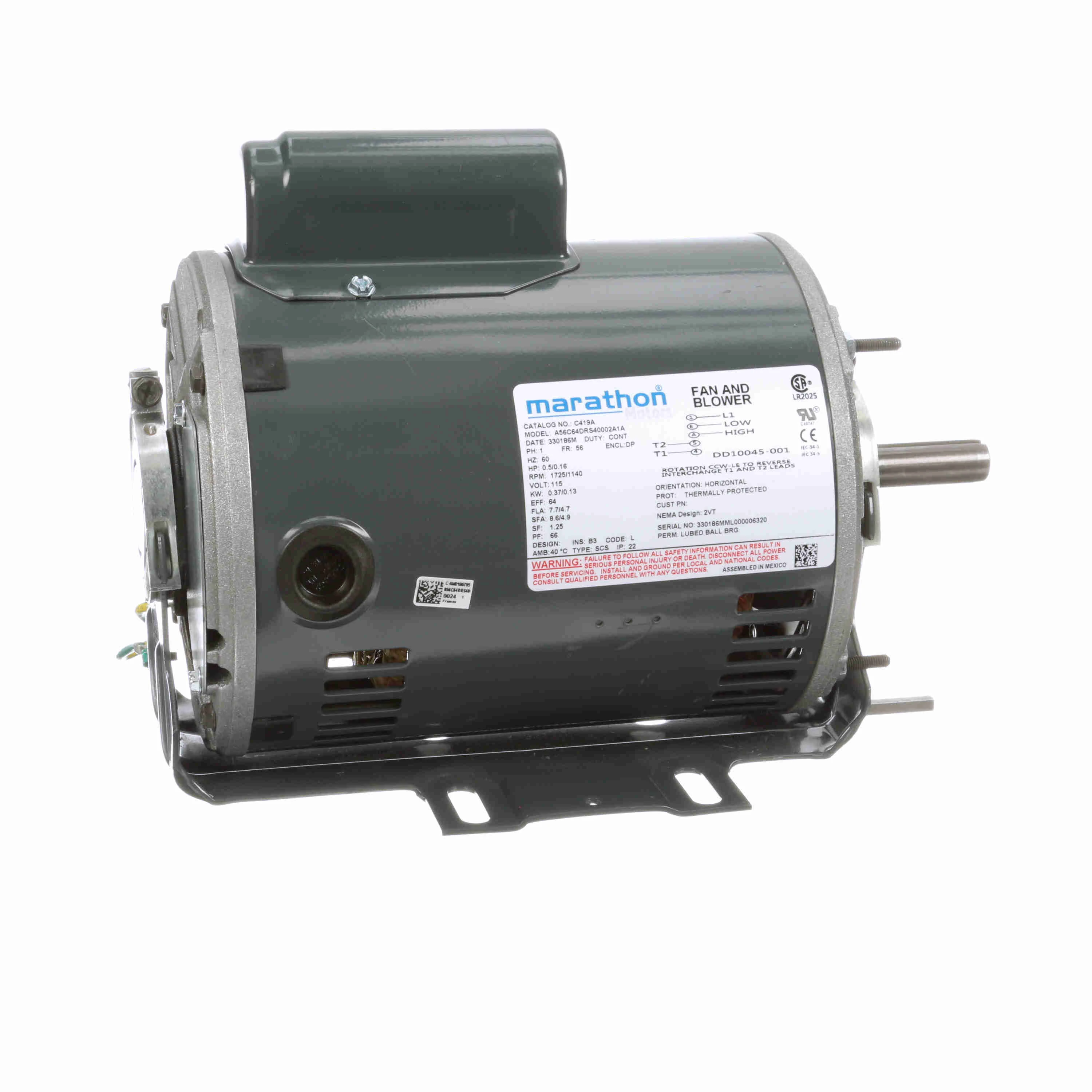

LEESON 056C64DRS40002A1 56C64DRS40002A1A / C419A Fan/Blower Motor, 0.50 and 0.17 HP, 1 Phase, 60 Hz, 115 and 115V, 1800 and 1800 RPM
Item: CH6HKLModel: 056C64DRS40002A1Cross Ref: 54YJ60 / 56C64DRS40002A1A / C419A
In Stock
Get it by Tuesday, Aug 25
5.00% off
€1,024.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 64% |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 7.7/4.7A |
| Full Load Efficiency | 64% |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 9 1/2" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC, R |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start, Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | Automatic |
| Motor Type | Capacitor Start, Run |
| Mounting Type | Cradle Base |
| Nameplate Speed | 1725/1140 RPM |
| No. Of Speed | 2 |
| No. Of Speeds | 2 |
| Nominal Efficiency | 64% |
| Overall Length | 11 9/16" |
| Phase | 1 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Speed | 1701-1800 RPM |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 13.67 |
| Ship length (cm) | 33.99 |
| Ship width (cm) | 23.01 |
| Country of Origin | MX |
