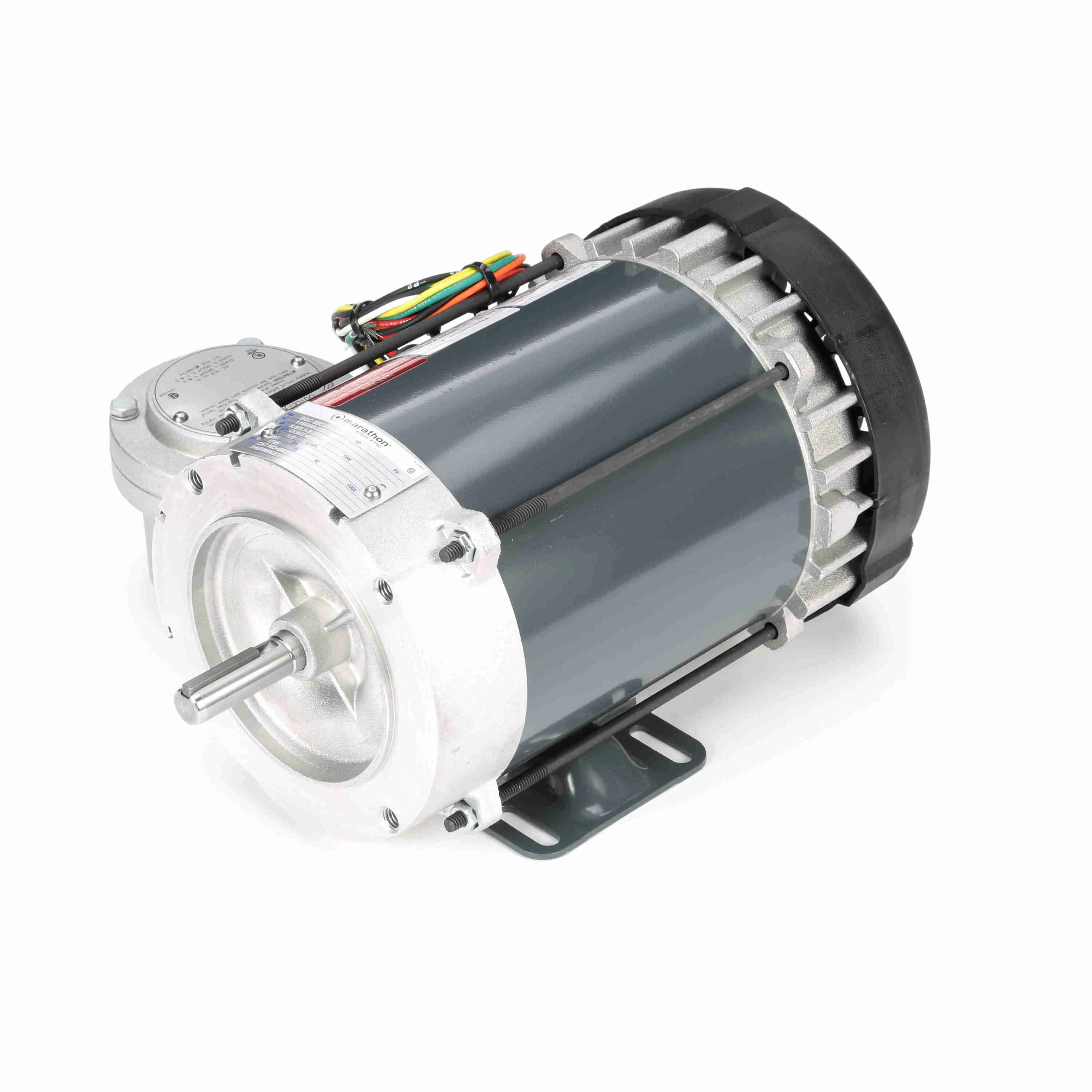

LEESON 056C17G5324 56C17G5324D / G871 Explosion Proof Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230 V, 1800 RPM
Get it by Monday, Aug 24
€871.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Explosion Proof Motor |
| Ambient (c) | 40 |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Efficiency | 55% |
| Enclosure Type | Explosion Proof Fan Cooled |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6.6/3.1-3.3A |
| Hazardous Location Class | 1 C, D / 2 F, G |
| Hazardous Location Division | Division 1 |
| Hp | 1/3 hp |
| Included | Explosion Proof Conduit Box |
| Insulation Class | Class B |
| Lead Length | 18" |
| Length Less Shaft | 11 3/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | Automatic |
| Motor Type | Capacitor Start |
| Mounting Type | C Face, Rigid Base |
| Nameplate Speed | 1725 RPM |
| Nema Design | N |
| No. Of Speed | 1 |
| Nominal Efficiency | 55% |
| Orientation | Horizontal |
| Output Rating | 0.246 kW |
| Overall Length | 13 7/16" |
| Phase | 1 |
| Power | 0.246 kW |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Temp. Code | T3B |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 40.16 |
| Ship width (cm) | 36.35 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: CAP START IND RUN
- KVA Code: N
- Drive End Bearing: BALL
- IP Code: 54
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Hp | Voltage | Frame | Phase | Motor Application | Motor Mounting Type | Motor Thermal Protection | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056H17E5301 | 1/4 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €919.47 | |
 |
056H17E5302 | 1/3 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,078.24 | |
 |
056H17E5303 | 1/2 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,452.07 | |
 |
056H17E5304 | 3/4 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,287.06 | |
 |
056H17E5305 | 1 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,409.55 | |
 |
118015.00 | 33/100 hp | 90V | 56C | - | Hazardous Location | Face, Base | Auto | Permanent Magnet Dc | €5,029.70 | |
 |
118016.00 | 1/2 hp | 90V | 56C | - | Hazardous Location | Face, Base | Auto | Permanent Magnet Dc | €4,540.55 |
