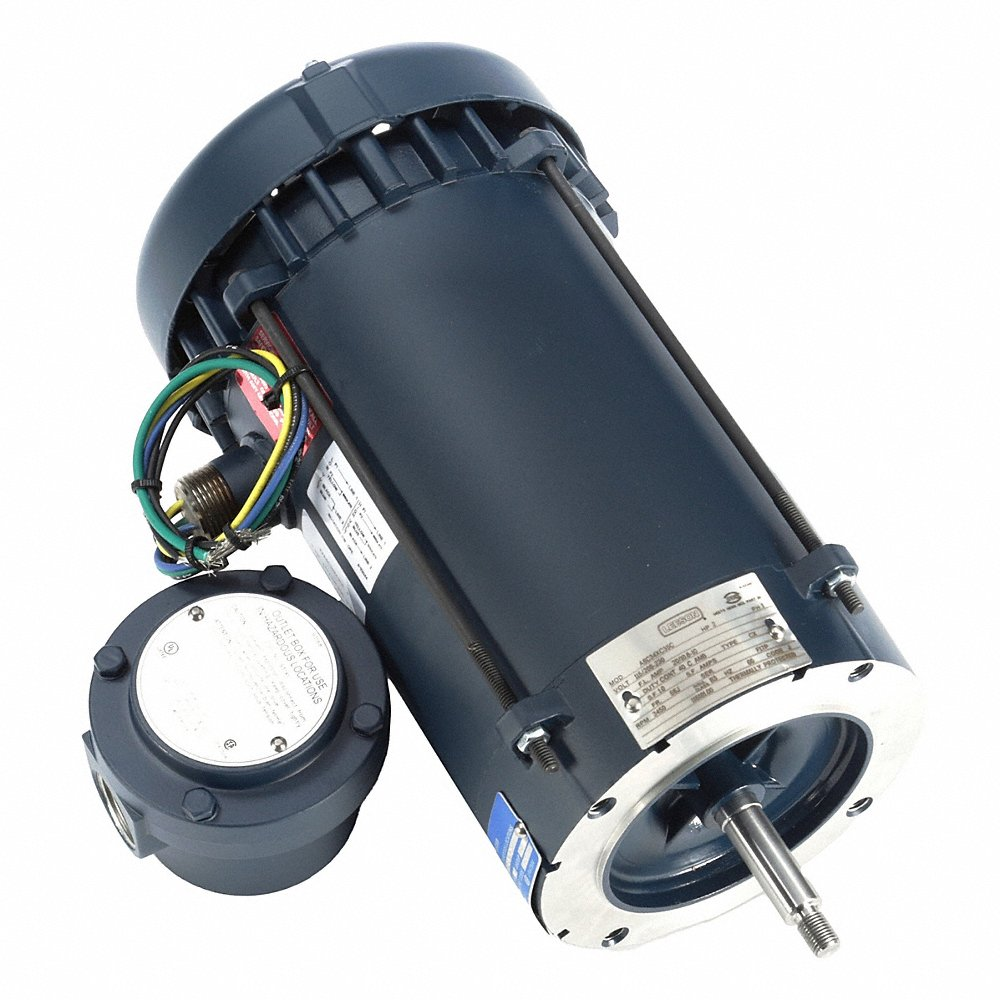

LEESON 116181.00 6C34XC35C Explosion Proof Motor, 2 HP, 1 Phase, 60 Hz, 115/208-230V, 3600 RPM
Get it by Monday, Apr 6
€1,365.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Amps | 20/10-10.8A |
| Code | J |
| Conduit Box Position | F1 |
| Design | L |
| Design Code | L |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 75.5% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | EPFC |
| Frame | 56J |
| Frame Length | 7.81" |
| Frame Material | Rolled Steel |
| Frame Type | 56J |
| Frequency | 60 Hz |
| Full Load Amps | 20/10.8-10A |
| Grease Type | Polyrex EM |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hazardous Location Class | 1C, D/2F, G |
| Height | 12.31" |
| Hp | 2 hp |
| Insulation Class | Class B |
| Ip Code | IP54 |
| Kva Code | J |
| Kw | 1.5 kW |
| Length | 19.69" |
| Lubrication | Polyrex EM |
| Max. Rpm | 3450 RPM |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Fixed Clockwise |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Round |
| Nameplate Rpm | 3600 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Rating | 1.49 kW |
| Packaging | B |
| Phase | 1 |
| Power | 1.49 kW |
| Power Factor | 87.5 |
| Product Datasheet | leeson-116181-00.pdf |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 11/25" |
| Shaft Type | J |
| Starting Method | Across The Line |
| Temp. Code | T3C |
| Thermal Protection | Automatic |
| Type | CX |
| Voltage | 115/208-230V |
| Width | 12.62" |
Shipping Info:
| Ship weight (kg) | 19.35 |
| Ship height (cm) | 31.27 |
| Ship length (cm) | 50.01 |
| Ship width (cm) | 32.05 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 75.5
- Eff 75%: 75.4
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: A-92340
- Winding: ZB298
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
