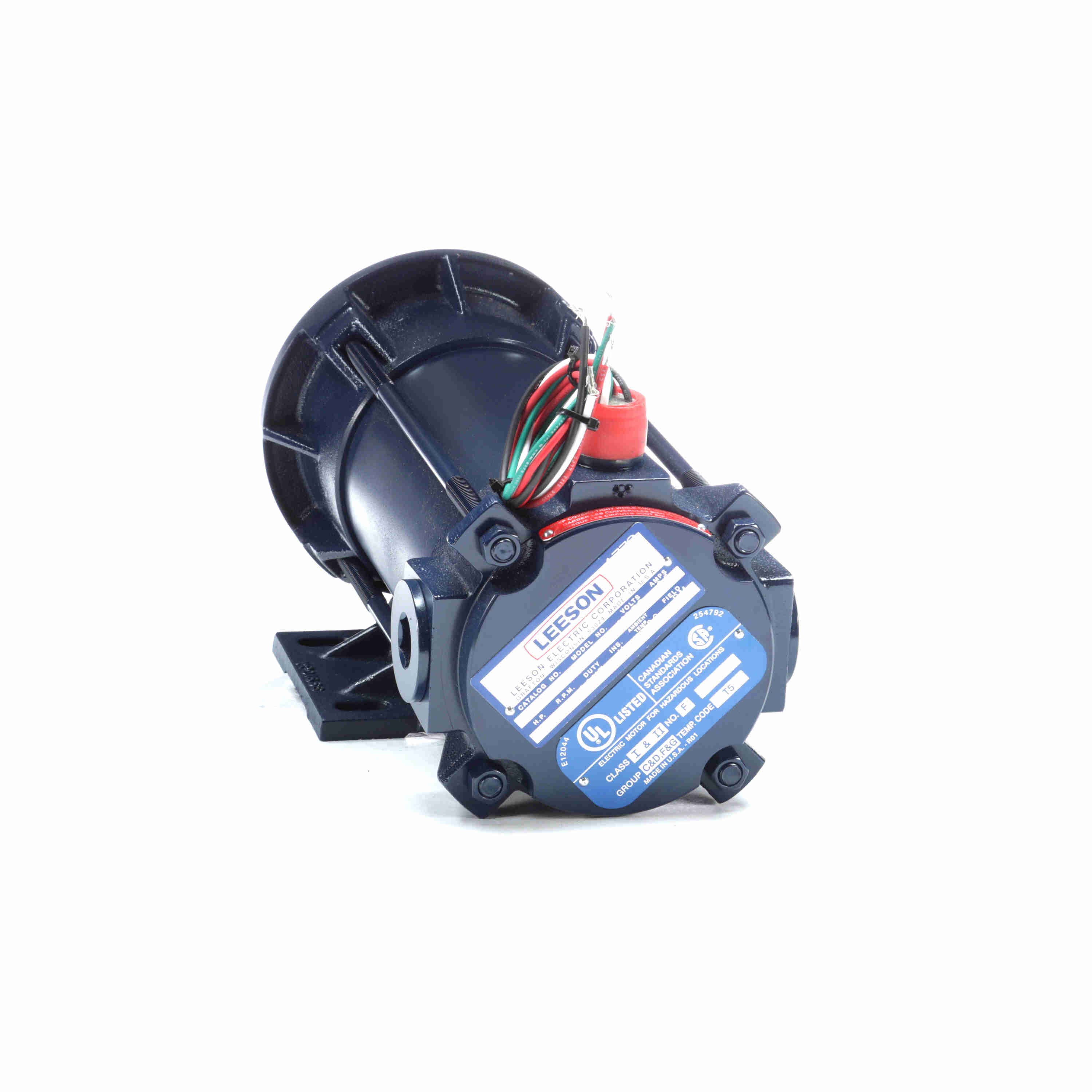

LEESON 118017.00 C6D17EK3A Explosion Proof Motor, 0.50 HP, 180V, 1750 RPM
Get it by Tuesday, Dec 23
€3,534.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Amps | 2.5A |
| Bearing Type | Ball |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.6% |
| Efficiency Group | Standard |
| Enclosure Type | Tenv |
| Frame | 56C |
| Frame Material | Steel |
| Frame Type | S56C |
| Full Load Amps | 2.5A |
| Hazardous Location Class | 1 C, D / 2 F, G |
| Height | 9" |
| Hp | 1/2 hp |
| Includes | 6" Leads Through 3/4-14 NPT |
| Ins. Class | Class H |
| Insulation Class | Class H |
| Kw | 0.37 kW |
| Lead Length | 6" |
| Length | 18.41" |
| Length Less Shaft | 12 5/16" |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1750 RPM |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet Dc |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Magnet DC |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1750 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 82.6% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 14 7/16" |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.1" |
| Standards | Csa, Ul Recognized |
| Temp. Code | T5 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 180V |
| Weight | 32 lbs. |
| Width | 10 1/2" |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 46.76 |
| Ship width (cm) | 26.67 |
| HS code | 8501314000 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Hp | Overall Length | Nominal Efficiency | Full Load Amps | Efficiency | Amps | Nameplate Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
118015.00 | 90V | 33/100 hp | 13 7/16" | 78.9% | 3.5A | 78.9% | 3.5A | 1750 RPM | €5,029.70 | |
 |
118016.00 | 90V | 1/2 hp | 14 7/16" | 84.4% | 4.7A | 84.4% | 4.7A | 1750 RPM | €4,540.55 | |
 |
118018.00 | 90V | 3/4 hp | 16 7/16" | 82% | 7.1A | 82% | 7.1A | 1750 RPM | €4,017.66 | |
 |
118019.00 | 180V | 3/4 hp | 16 7/16" | 75.8% | 3.3A | 75.8% | 3.3A | 1750 RPM | €6,656.23 |
