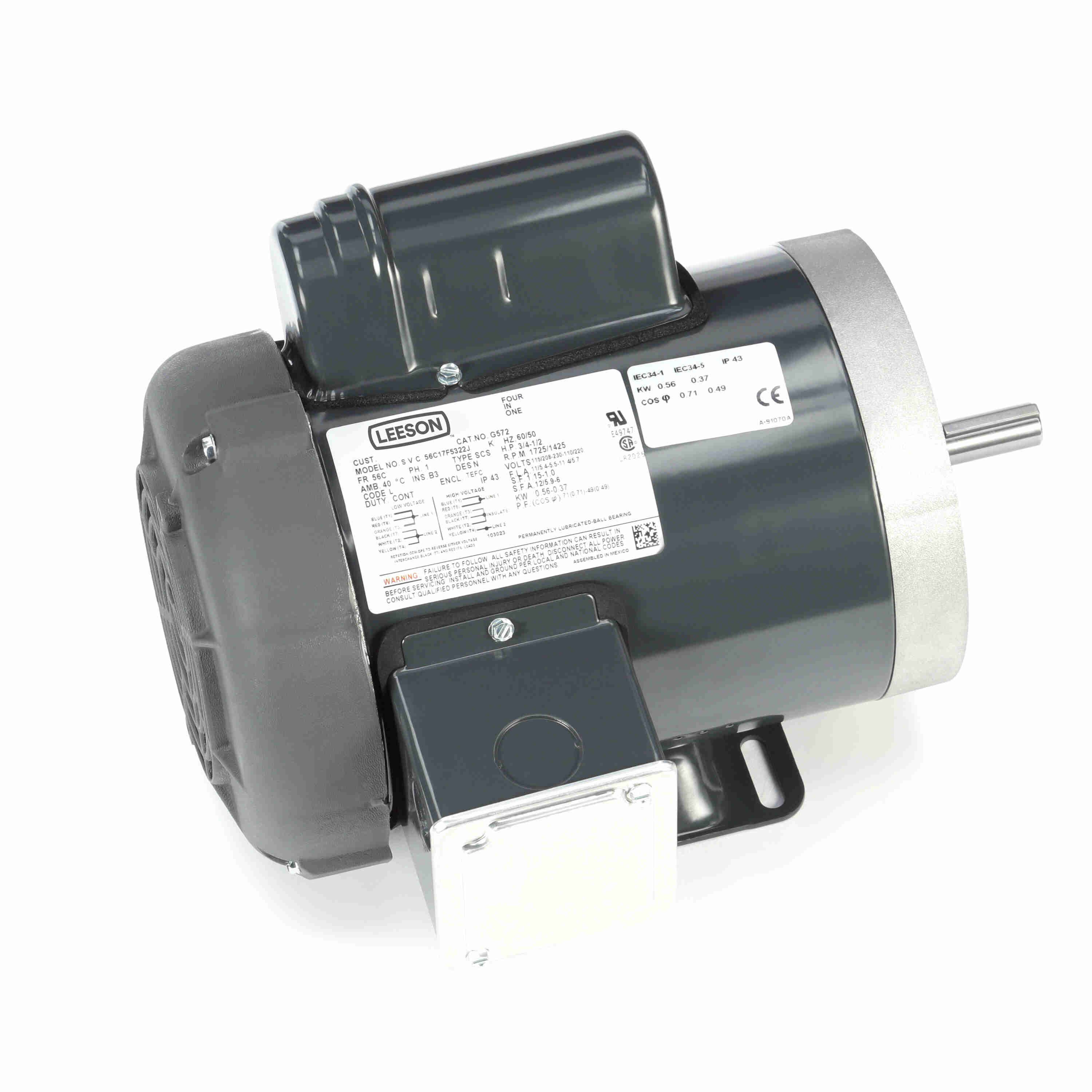

LEESON 056C17F5322 G572 / 56C17F5322J General Purpose Motor, 0.75/0.50 HP, 1 Phase, 60/50 Hz, 115/208-230 and 110/220V, 1800 RPM
Get it by Wednesday, Dec 17
€930.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 70.5% |
| Efficiency Group | Standard |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 11/5.4-5.5A |
| Full Load Amps @ 50hz | 11/5.4-5.5A |
| Hp | 3/4 hp |
| Hp @ 50hz | 3/4 hp |
| Includes | Brake, Capacitor |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 10 1/4" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Capacitor Start |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 70.5% |
| Number Of Speeds | 1 |
| Overall Length | 12 5/16" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Warranty | 1 yr. |
| Weight | 30 lbs. |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 23.16 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Frequency | Full Load Amps | Motor Type | Service Factor | Hp | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056C11F5303 | 115/208-230V AC | 1140 RPM | 60 Hz | 7.8/3.6-3.9A | Capacitor Start | 1.15 | 1/3 hp | - | €692.05 | |
 |
056C17F5320 | 115/208-230V | 1725 RPM | 50/60 Hz | 6.6/3.1-3.3A | Capacitor Start | 1.15 | 1/3 hp | Face/Base | €673.78 | |
 |
056C17F5321 | 115/208-230V | 1725 RPM | 50/60 Hz | 8.8/4.2-4.4A | Capacitor Start | 1.15 | 1/2 hp | Face/Base | €551.92 | |
 |
056B11F5303 | 115/208-230V AC | 1140 RPM | 50/60 Hz | 9.6/4.8-4.7A | Capacitor Start/Run | 1.15 | 1/2 hp | Face, Base | €841.44 | |
 |
056B17F5305 | 115/208-230V AC | 1770 RPM | 50/60 Hz | 15.2/7.6-8.2A | Capacitor Start/Run | 1.15 | - | Face/Base | €810.57 | |
 |
056B17F5306 | 115/208-230V AC | 1725 RPM | 50/60 Hz | 20/10-10.8A | Capacitor Start/Run | 1.0 | 2 hp | Face/Base | €1,018.01 | |
 |
056B34F5326 | 115/208-230V AC | 3450 RPM | 60 Hz | 14.2/7.7-7.1A | Capacitor Start/Run | 1.15 | 1 1/2 hp | Face/Base | €703.78 |
