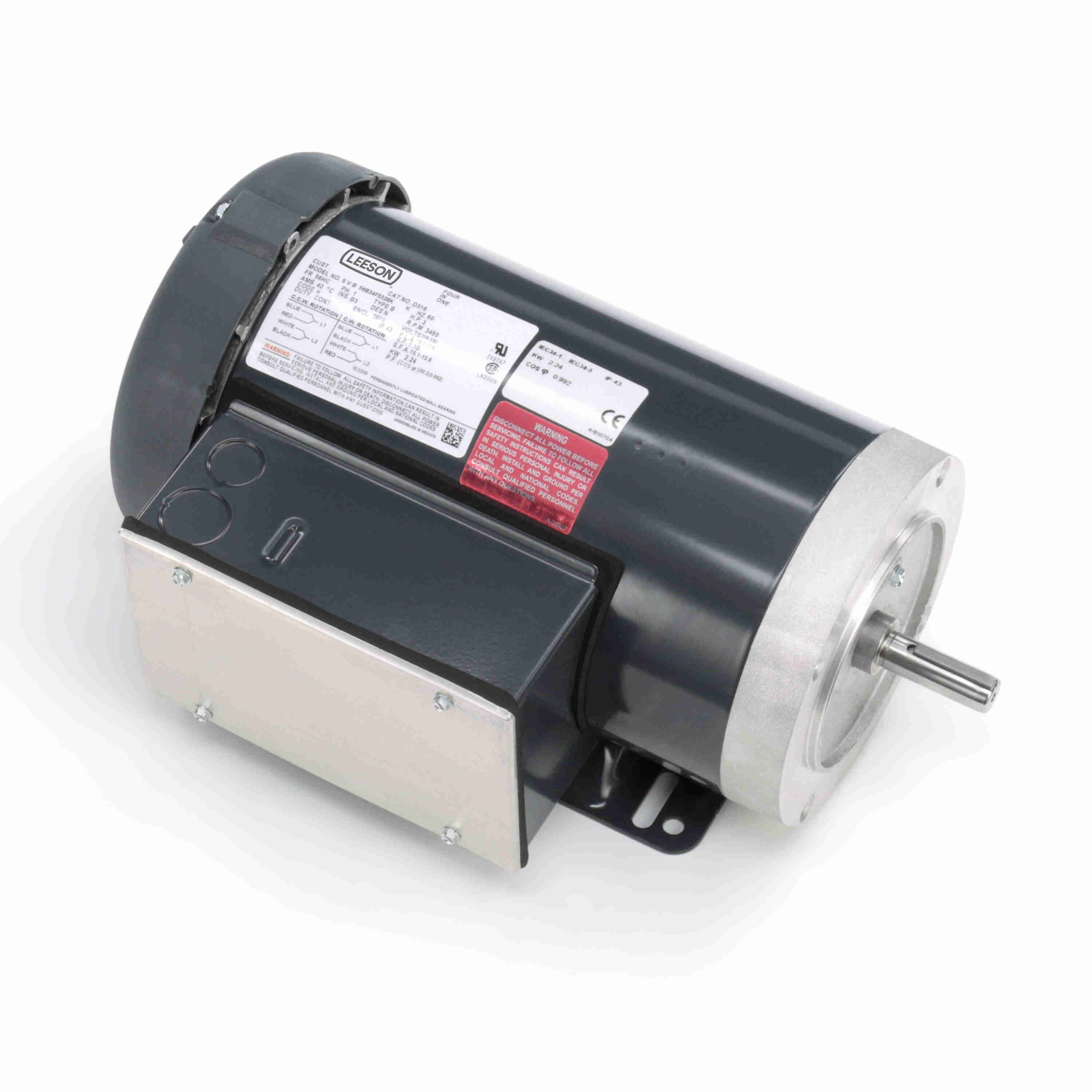

LEESON 056B34F5328 56B34F5328K / D316 General Purpose Motor, 3 HP, 1 Phase, 60 Hz, 208-230V, 3600 RPM
Get it by Tuesday, May 19
€1,130.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 84% |
| Efficiency Group | Standard |
| Frame | 56HC |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 11.8-13.1A |
| Hp | 3 hp |
| Includes | Brake, Capacitor |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 12 3/4" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Face/Base |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 84% |
| Number Of Speeds | 1 |
| Overall Length | 14 13/16" |
| Phase | 1 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
Shipping Info:
| Ship weight (kg) | 22.95 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 50.5 |
| Ship width (cm) | 26.04 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Full Load Amps | Hp | Phase | Service Factor | Mounting Type | Frequency | Nameplate Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46JN0087Y | 115/230V AC | 3.8-4/1.9-2A | 1/3 hp | 1 | 1.35 | Face/Base | 60 Hz | 1725 RPM | €933.52 | |
 |
5KCR46MN0055Y | 115/230V AC | 5.6-5.8/2.8-2.9A | 1/2 hp | 1 | 1.25 | Face/Base | 50/60 Hz | 1725 RPM | €841.44 | |
 |
5KCR46MN0093 | 115/230V AC | 5.6-5.8/2.8-2.9A | 1/2 hp | 1 | 1.25 | Face | 60 Hz | 1725 RPM | €814.28 | |
 |
5KCR46MN0055X | 115/230V AC | 5.6-5.8/2.8-2.9A | 1/2 hp | 1 | 1.25 | Face/Base | 60 Hz | 1725 RPM | €956.68 | |
 |
5KCR49PN0099X | 115/230V AC | 8.8-9/4.4-4.5A | 3/4 hp | 1 | 1.25 | Face/Base | 50/60 Hz | 1725 RPM | €1,116.48 | |
 |
5KCR49UN0107 | 115/230V AC | 11.4-11.8/5.7-5.9A | 1 hp | 1 | 1.15 | Face | 60 Hz | 1725 RPM | €1,031.58 | |
 |
5KCR49UN0106X | 115/230V AC | 11.4-11.8/5.7-5.9A | 1 hp | 1 | 1.15 | Face/Base | 60 Hz | 1725 RPM | €1,060.60 |
