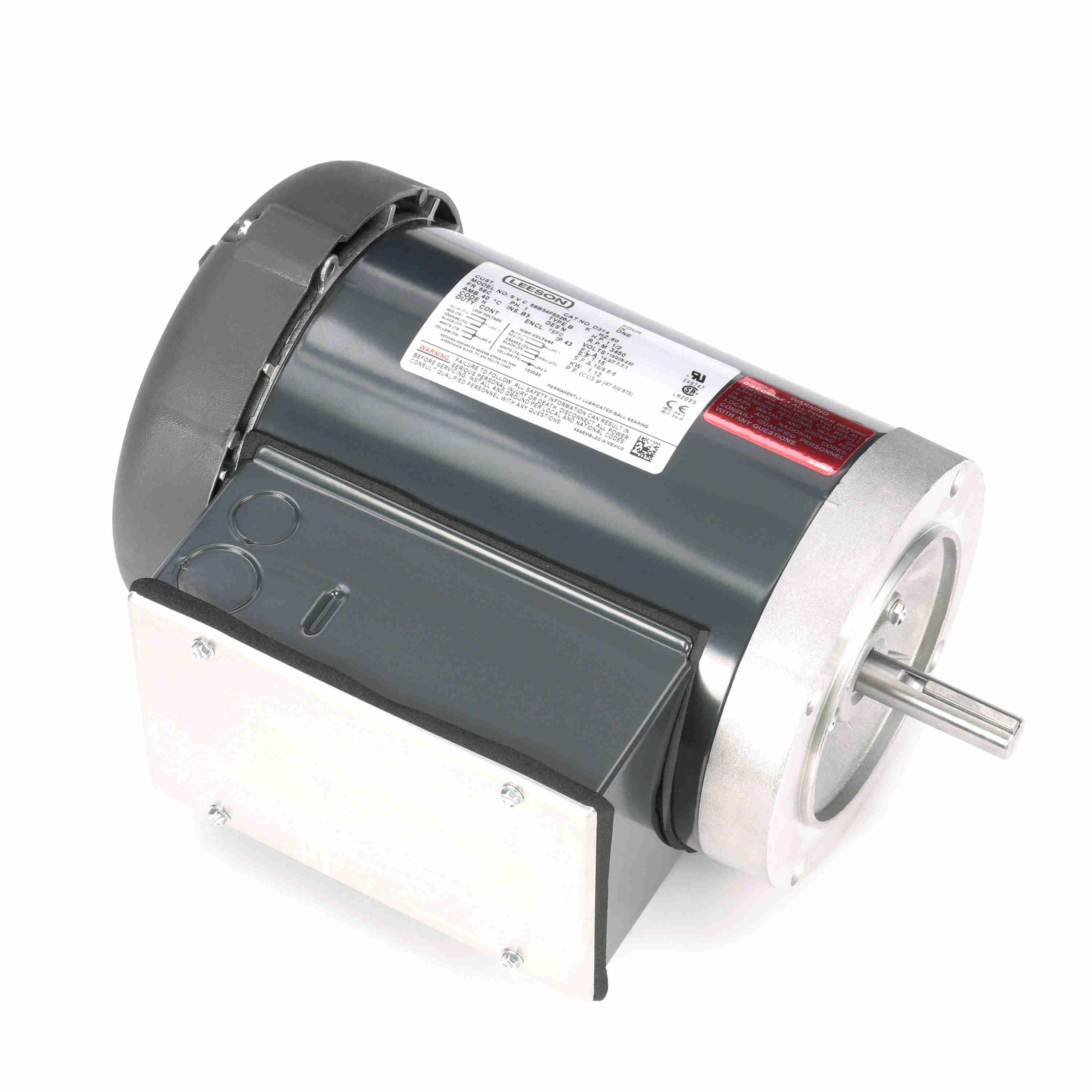

LEESON 056B34F5326 D314 / 56B34F5326J General Purpose Motor, 1.50 HP, 1 Phase, 60 Hz, 115/208-230V, 3600 RPM
Get it by Thursday, Dec 18
€703.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Efficiency Group | Standard |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 14.2/7.7-7.1A |
| Hp | 1 1/2 hp |
| Includes | Brake, Capacitor |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 10 3/4" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | All Angle , Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Face/Base |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 12 13/16" |
| Phase | 1 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Warranty | 1 yr. |
Shipping Info:
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Frequency | Full Load Amps | Motor Type | Service Factor | Hp | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056C11F5303 | 115/208-230V AC | 1140 RPM | 60 Hz | 7.8/3.6-3.9A | Capacitor Start | 1.15 | 1/3 hp | - | €692.05 | |
 |
056C17F5320 | 115/208-230V | 1725 RPM | 50/60 Hz | 6.6/3.1-3.3A | Capacitor Start | 1.15 | 1/3 hp | Face/Base | €673.78 | |
 |
056C17F5321 | 115/208-230V | 1725 RPM | 50/60 Hz | 8.8/4.2-4.4A | Capacitor Start | 1.15 | 1/2 hp | Face/Base | €551.92 | |
 |
056C17F5322 | 115/208-230V AC | 1725 RPM | 50/60 Hz | 11/5.4-5.5A | Capacitor Start | 1.15 | 3/4 hp | Face/Base | €930.01 | |
 |
056B11F5303 | 115/208-230V AC | 1140 RPM | 50/60 Hz | 9.6/4.8-4.7A | Capacitor Start/Run | 1.15 | 1/2 hp | Face, Base | €841.44 | |
 |
056B17F5305 | 115/208-230V AC | 1770 RPM | 50/60 Hz | 15.2/7.6-8.2A | Capacitor Start/Run | 1.15 | - | Face/Base | €810.57 | |
 |
056B17F5306 | 115/208-230V AC | 1725 RPM | 50/60 Hz | 20/10-10.8A | Capacitor Start/Run | 1.0 | 2 hp | Face/Base | €1,018.01 |
