LEESON
See our 856 reviews on
MARATHON MOTORS 056C11F5303 General Purpose Motor Capacitor-start 1/3 Hp 115/208-230v | AF6MGN 19YU92 / G576

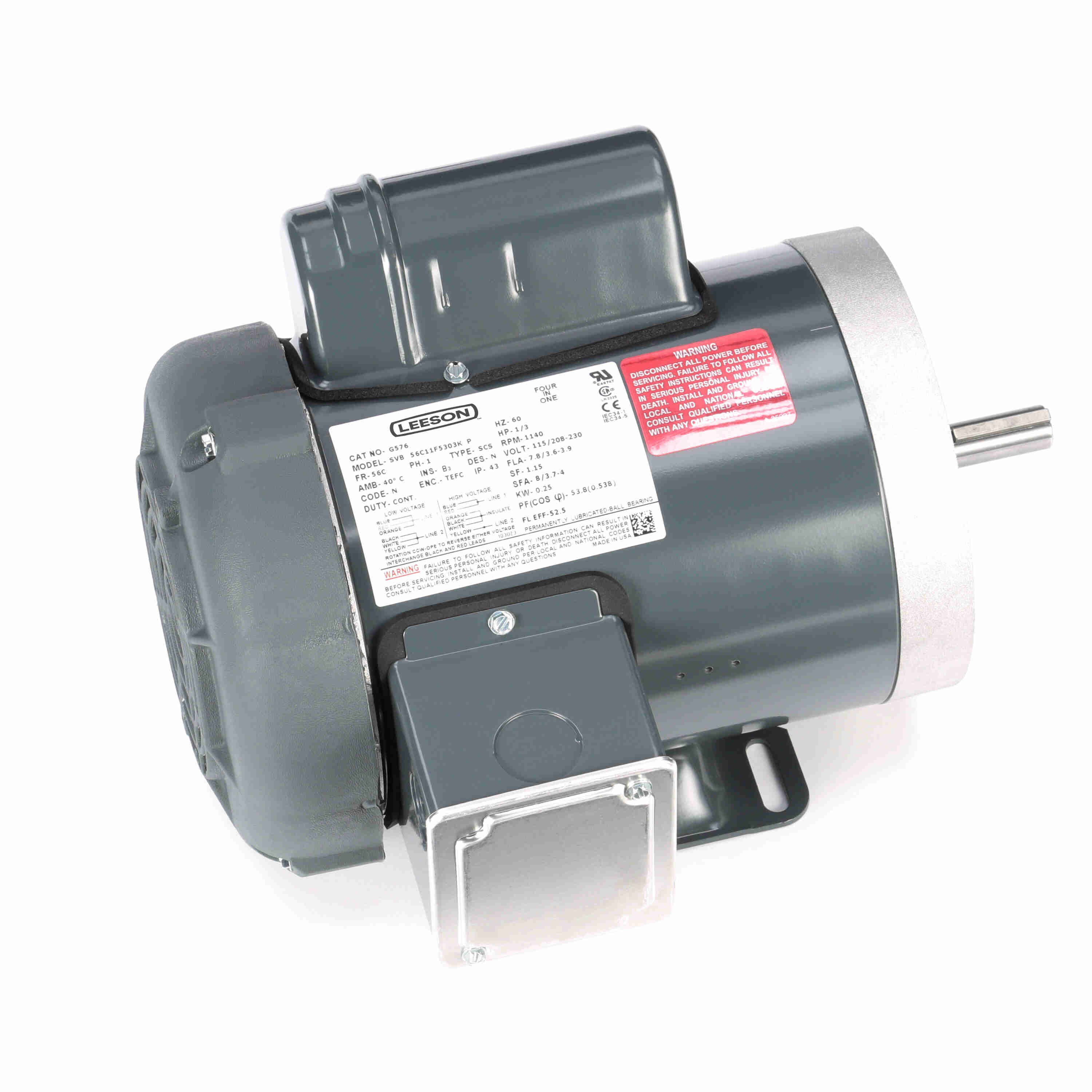

LEESON 056C11F5303 G576 / 56C11F5303K General Purpose Motor, 0.33 HP, 1 Phase, 60 Hz, 115/208-230V, 1200 RPM

Item: AF6MGNModel: 056C11F5303Cross Ref: 19YU92 / G576 / 56C11F5303K
Check Availability
In Stock
HP
Nameplate RPM

Get it by Thursday, Dec 18

€692.05 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 40°C
Base Type Rigid Base
Bearing Type Ball
Capacitor Required Yes
Duty Cycle Continuous
Efficiency 52.5%
Efficiency Group Standard
Frame 56C
Frame Material Steel
Frequency 60 Hz
Full Load Amps 7.8/3.6-3.9A
Hp 1/3 hp
Includes Brake, Capacitor
Insulation Class Class B
Inverter Rated No
Length Less Shaft 10 1/4"
Manufacturers Warranty Length 1 yr.
Max. Ambient Temp. 104°F
Motor Application General Application
Motor Bearings Ball
Motor Design Capacitor Start
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face/Base
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Shaft Rotation CW/CCW
Motor Type Capacitor Start
Nameplate Rpm 1140 RPM
No. Of Speeds 1
Nominal Efficiency 52.5%
Number Of Speeds 1
Overall Length 12 5/16"
Phase 1
Rpm Range 1101-1200 RPM
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 2 1/16"
Standards Ce, Csa, Ul Recognized
Thermal Protection None
Usable @ 200v No
Usable @ 208v Yes
Voltage 115/208-230V AC
Warranty 1 yr.
Weight 29 lbs.

Shipping Info:

Ship weight (kg) 13.05
Ship height (cm)23.16
Ship length (cm)40.94
Ship width (cm)26.04
HS code8501404040
Country of OriginMX

Product Variants

ProductModelVoltageNameplate RpmFrequencyFull Load AmpsMotor TypeService FactorHpMounting TypePrice
MARATHON MOTORS 056C17F5320 General Purpose Motor Capacitor-start 1/3 Hp 115/208-230v | AF6MGP 19YU93 / G570 056C17F5320115/208-230V1725 RPM50/60 Hz6.6/3.1-3.3ACapacitor Start1.151/3 hpFace/Base€673.78
MARATHON MOTORS 056C17F5321 General Purpose Motor Capacitor-start 1/2 Hp 115/208-230v | AF6MGQ 19YU94 / G571 056C17F5321115/208-230V1725 RPM50/60 Hz8.8/4.2-4.4ACapacitor Start1.151/2 hpFace/Base€551.92
MARATHON MOTORS 056C17F5322 General Purpose Motor Capacitor-start 3/4 Hp 115/208-230v | AF6MGR 19YU95 / G572 056C17F5322115/208-230V AC1725 RPM50/60 Hz11/5.4-5.5ACapacitor Start1.153/4 hpFace/Base€930.01
MARATHON MOTORS 056B11F5303 General Purpose Motor Capacitor-start/capacitor-run Tefc 1/2 Hp | AF6NCW 19YU85 / G578 056B11F5303115/208-230V AC1140 RPM50/60 Hz9.6/4.8-4.7ACapacitor Start/Run1.151/2 hpFace, Base€841.44
MARATHON MOTORS 056B17F5305 General Purpose Motor Capacitor-start/capacitor-run Tefc 1-1/2 Hp | AF6NCX 19YU86 / G574 056B17F5305115/208-230V AC1770 RPM50/60 Hz15.2/7.6-8.2ACapacitor Start/Run1.15-Face/Base€810.57
MARATHON MOTORS 056B17F5306 General Purpose Motor Capacitor-start/capacitor-run Tefc 2 Hp | AF6NCY 19YU87 / G575 056B17F5306115/208-230V AC1725 RPM50/60 Hz20/10-10.8ACapacitor Start/Run1.02 hpFace/Base€1,018.01
MARATHON MOTORS 056B34F5326 General Purpose Motor Capacitor-start/capacitor-run Tefc 1-1/2 Hp | AF6NCZ 19YU88 / D314 056B34F5326115/208-230V AC3450 RPM60 Hz14.2/7.7-7.1ACapacitor Start/Run1.151 1/2 hpFace/Base€703.78
